Images are illustrative and may not show every size or variation.
Mars

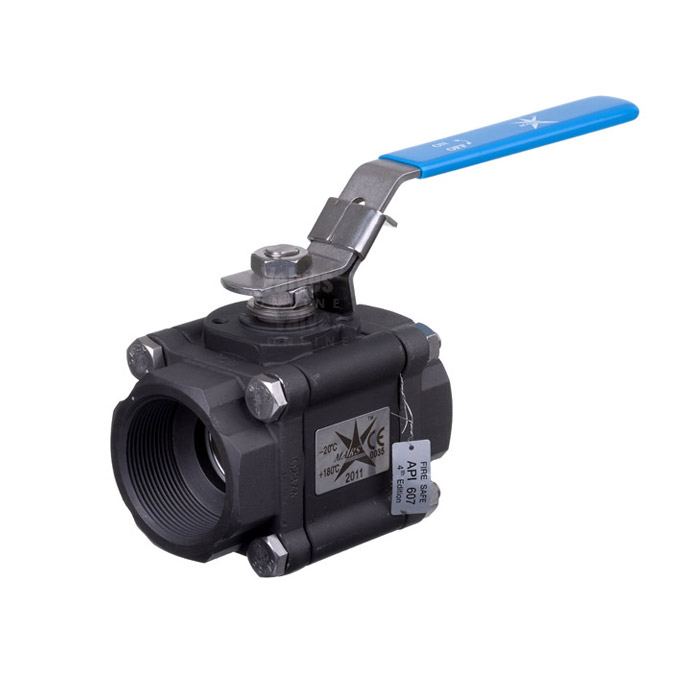

Mars Ball Valve Series 83 3 Piece Heavy Duty Carbon Steel
SKU BV5149
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Carbon Steel body
- Glass filled PTFE seat and graphite seal
- Three Piece, heavy duty
- Screwed BSP, Socket Weld, Butt Weld or NPT end connections
- Sizes: 1/4" to 2 1/2"
- ATEX Approved
- Fire Safe, Anti Static
Description
Our Mars Ball Valve Series 83 3 Piece Heavy Duty Carbon Steel is a fire safe anti static heavy duty, fully maintainable three piece ball valve; particularly useful for manual isolation. A high performance valve with Stainless Steel body, glass filled PTFE seat and graphite seal.
The Mars Series 83 benefits from a unique encapsulated body bolt design.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Suitable for manual on / off or V control.
Fire safe certified to API607 (4th edition). Antistatic PED approval. ANSI B16.34. Test to EN10204.
Mars Series 83 Datasheet
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Carbon Steel
- Seat Material
- Glass filled PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
- Design
- 3 Piece, Reduced Bore, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to: 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2 1/2")
- Actuatable?
- No - Manual Only
