Mars

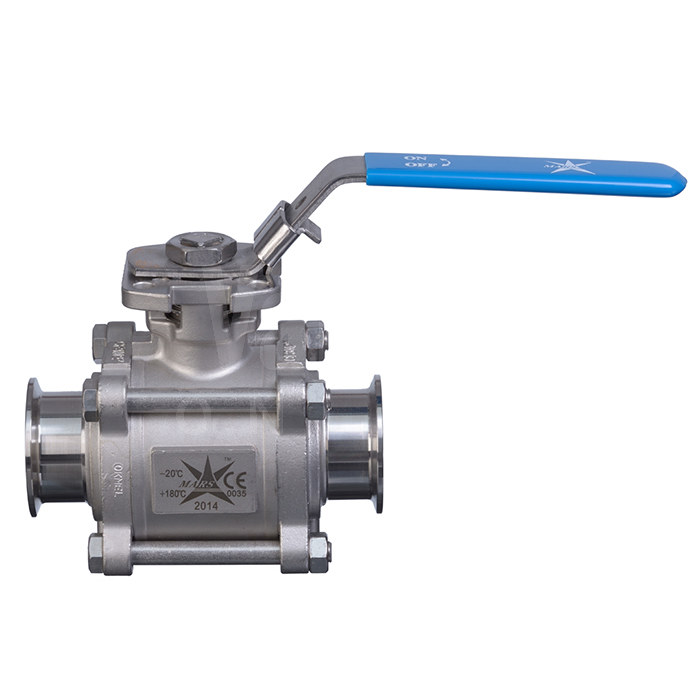

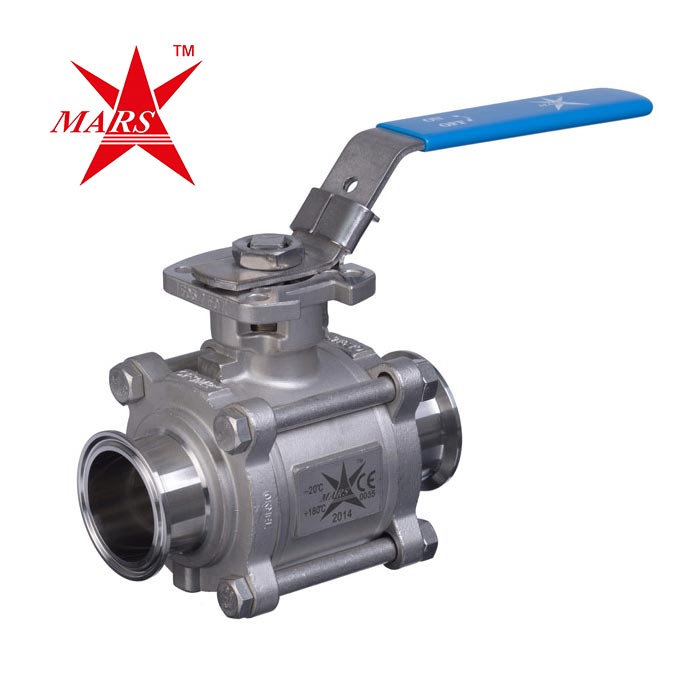

Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp
SKU BV5134
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- For sanitary applications and on / off operation
- Suitable for CIP / SIS in-line cleaning
- Body material: Stainless Steel
- End connection: Tri-Clamp
- Cavity filled PTFE seat and ISO mounting top
- Sizes: 1/2" to 4"
- Temperature range: -20 °C to 180°C
- Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI
- ATEX Approved
Description
Our Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp is a fully maintainable hygienic three piece ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore valve with Stainless Steel body, cavity filled PTFE seats and ISO mounting top for actuation.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Live loaded stem packing compensates for wear and fluctuations.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.
All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Technical specification
- End Connection
- Tri-Clamp
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- ATEX, Hygienic
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to 1000 PSI (1/2" to 2") & Up to 800 PSI (2 1/2" to 4")
- Actuatable?
- Yes - features ISO Direct Mounting Pad
