Images are illustrative and may not show every size or variation.
Mars

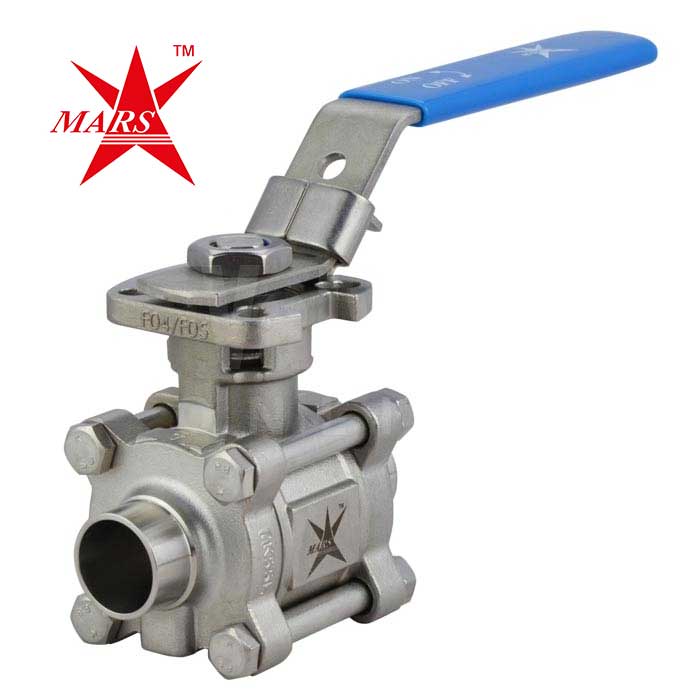

Mars Ball Valve Series 77SN 3 Piece Hygienic OD Weld End
SKU BV5135
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 77SN Sanitary Ball Valve OD Weld End
- Stainless Steel body
- Cavity filled PTFE seat
- Three Piece, High Performance, ISO mounting top
- OD Weld End
- Sizes: 1/2" to 4"
- Temperature range: -20°C to 180°C
- Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI
- ATEX Approved
Description
Our Mars Ball Valve Series 77SN 3 Piece Hygienic OD Weld End is a fully maintainable hygienic three piece ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore valve with Stainless Steel body, cavity filled PTFE seats and ISO mounting top for actuation.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Live loaded stem packing compensates for wear and fluctuations.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.
All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- ATEX, Hygienic
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to: 1000 PSI (1/2" to 2"), 800 PSI (2 1/2" to 4")
- Actuatable?
- Yes - ISO Mounting Pad
