Mars

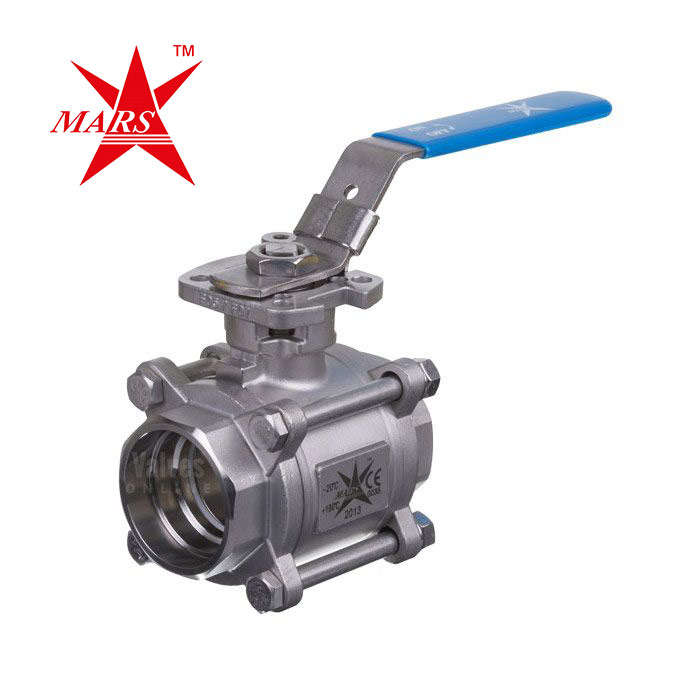

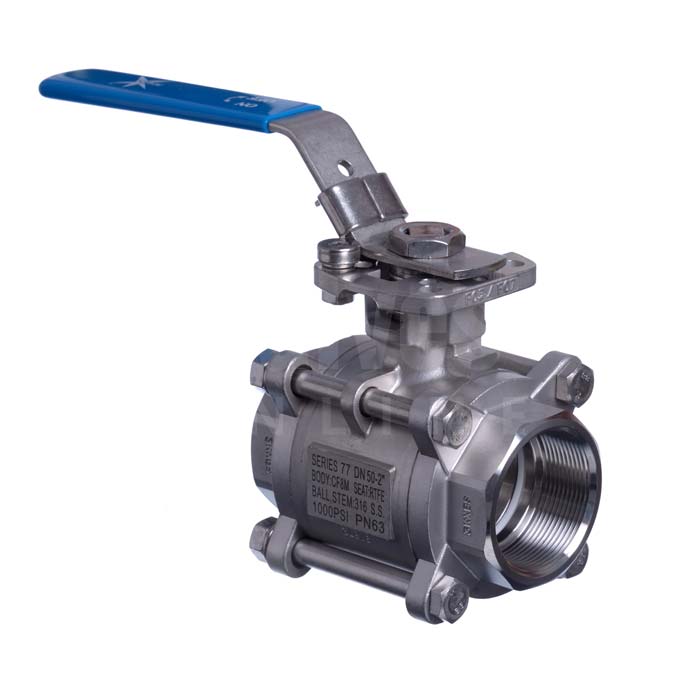

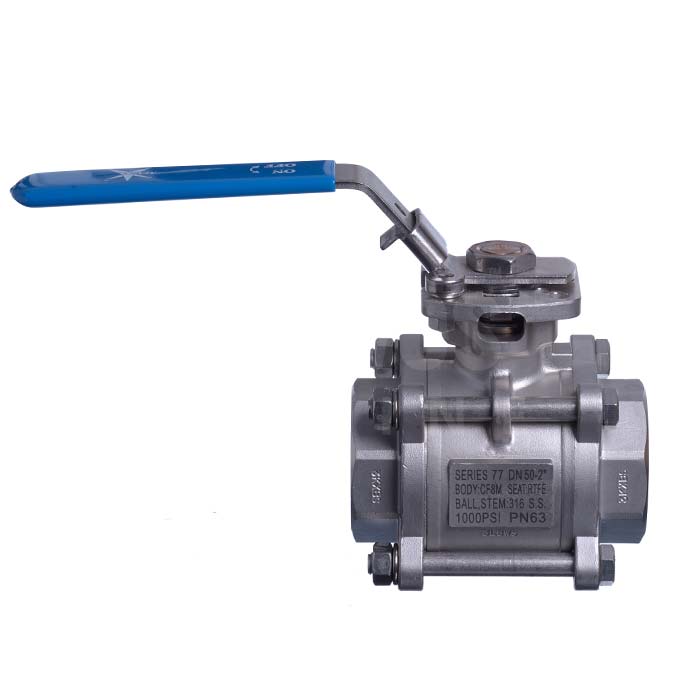

Mars Ball Valve Series 77
SKU BV5112
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 77
- 3 Piece, Stainless Steel Body
- Connections: BSP, NPT, Socket Weld & Butt Weld
- Full Bore, Direct Mount
- Reinforced PTFE seat
- Sizes: 1/4" to 4"
- Temperature Range: -20°C to 200°C
- Operating pressure: 1000 PSI
- ATEX Approved
Description
Mars Ball Valve Series 77 3 Piece Full Bore Direct Mount ball valve is a fully maintainable isolating valve; providing a cost-effective solution for the 'shut-off' of medium flows.
A general purpose, reliable ball valve with Stainless Steel body, reinforced PTFE seat and ISO direct mount top.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Live loaded stem packing compensates for wear and fluctuations.
UHMWPE Seats available on request.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to 1000 PSI
- Actuatable?
- Yes - features ISO Direct Mounting Pad
