Images are illustrative and may not show every size or variation.
Mars

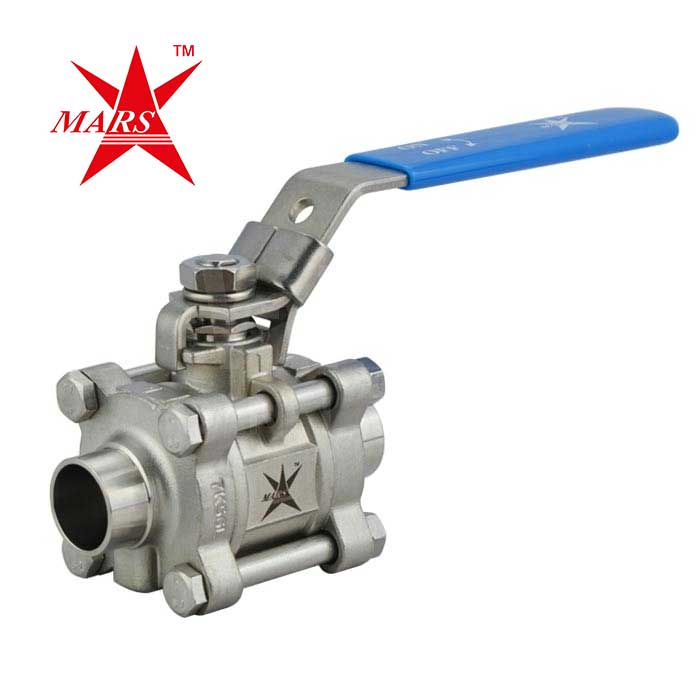

Mars Ball Valve Series 50SN 3 Piece Hygienic Manual Only OD Weld End
SKU BV5133
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 50SN OD Weld End Sanitary Ball Valve
- Stainless Steel body
- Three Piece, High Performance, Full Bore
- Cavity filled PTFE seat
- OD Weld End
- Sizes: 1/2" to 4"
- Temperature range: -20 °C to 180°C
- Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI
Description
Our Mars Ball Valve Series 50SN 3 Piece Hygienic Manual Only OD Weld End is a fully maintainable hygienic three piece ball valve; particularly suited for manual on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore valve with Stainless Steel body and cavity filled PTFE seats.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Live loaded stem packing compensates for wear and fluctuations.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.
All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Mars Series 50SN Datasheet
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- Hygienic
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to: 1000 PSI (1/2" to 2"), 800 PSI (2 1/2" to 4")
- Actuatable?
- No - Manual Only
