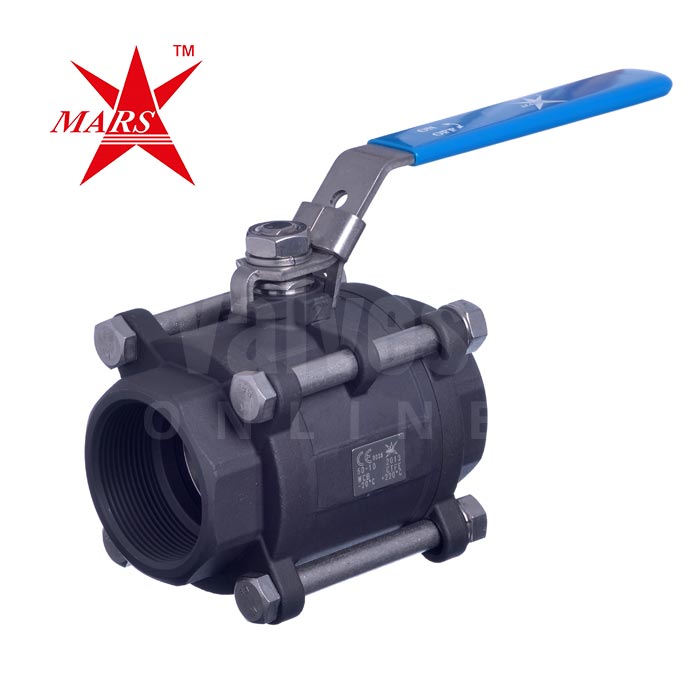

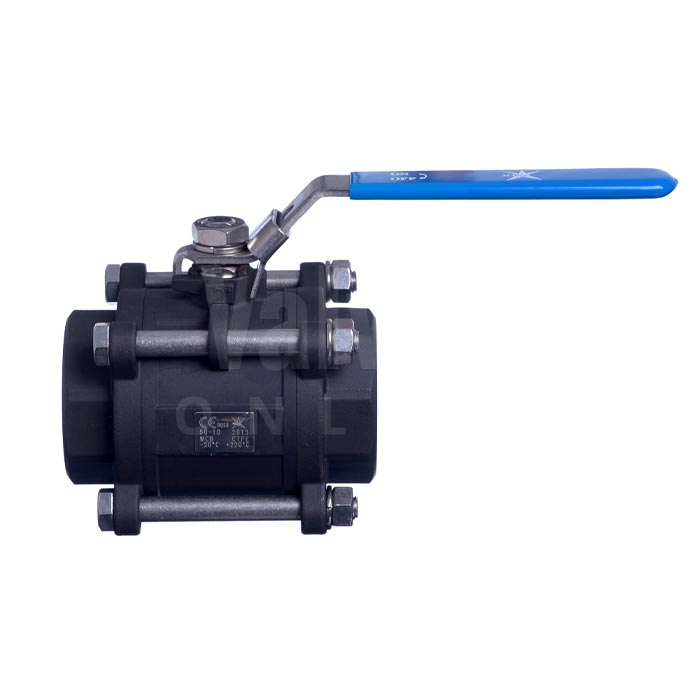

Mars Ball Valve Series 50 3 Piece Full Bore Carbon Steel

Name: Mars Ball Valve Series 50 3 Piece Full Bore Carbon Steel
Brand: Mars
SKU: BV5148
Price: 25.12 GBP
Availability: InStock

SKU BV5148

from£25.12ex VAT

Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)

Not the right one? Identify your valve by photo

Checking online availability…

Next-day UK delivery on stock items
Trade and bulk pricing available on request

Mars Series 50
Carbon Steel body
Three piece, full bore
Screwed BSP, Socket Weld, Butt Weld or NPT end connections
Sizes: 1/4" to 4"
Temperature range: -20 °C to +200°C
Operating pressure: 1/4" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI

Description

Our Mars Ball Valve Series 50 3 Piece Full Bore Carbon Steel is a fully maintainable three piece, full bore ball valve; providing a cost-effective solution for the 'shut-off' of medium flows. A general purpose, reliable valve with Carbon Steel body and Carbon Filled PTFE seat.

Features a blow-out proof stem and insulated grip, lockable lever handle.

Not suitable for actuation.

Technical specification

End Connection: BSP, NPT, Socket Weld, Butt Weld OD
Body Material: Carbon Steel
Seat Material: Carbon Filled PTFE
Size: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design: 3 Piece, Full Bore, Female x Female
Industry / Approvals: General / Industrial / Process
Lever: Manual Lockable Lever
Temperature Range: -20 °C to +200°C
Pressure: Up to: 1000 PSI (1/4" to 2"), 800 PSI (2 1/2" to 4")
Actuatable?: No - Manual Only
