Mars

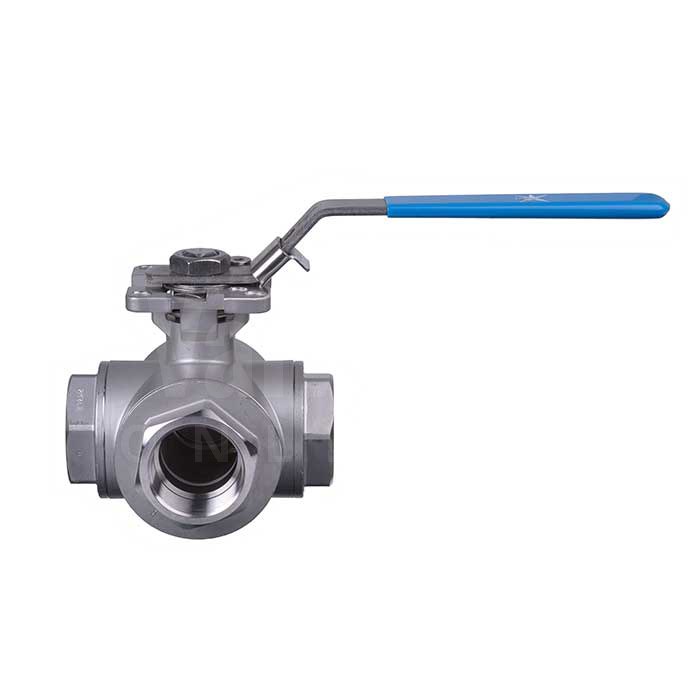

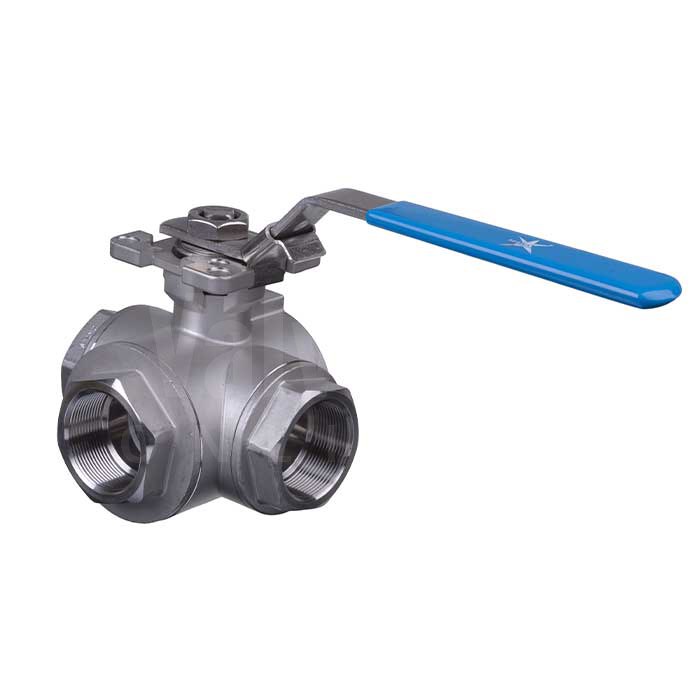

Mars Ball Valve Series 39 3 Way Direct Mount
SKU BV5129
from£119.24ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Ball Valve Series 39 3 Way Direct Mount
- For general and industrial chemical applications
- Body material: Stainless Steel
- End connection: Screwed BSP or NPT
- Three way, L or T port, reduced or full bore
- PTFE seat and ISO mounting top
- Sizes: 1/4" to 2"
- Temperature range: -20 °C to 200°C
- Operating pressure: 1/4" to 1" 1000 PSI and 1 1/4" to 2" 800 PSI
- ATEX Approved
Description
Our Mars Ball Valve Series 39 3 Way Direct Mount provides safe operation for both general and industrial chemical applications. A 3 way reduced or full bore valve with Stainless Steel body, PTFE seat and ISO mounting top for actuation.
Features a blow-out proof stem and self-adjusting stem sealing.
Investment cast with low torque. Additional sizes and connections available on request (POA).
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Way, Reduced Bore, Full Bore
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to 1000 PSI (1/4" to 1") & 800 PSI (1 1/4" to 2")
- Actuatable?
- Yes - features ISO Mounting Pad
