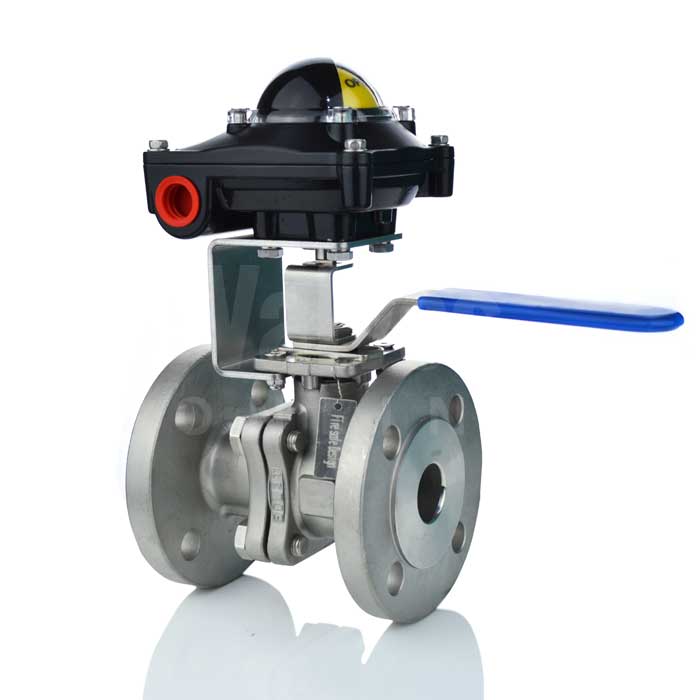

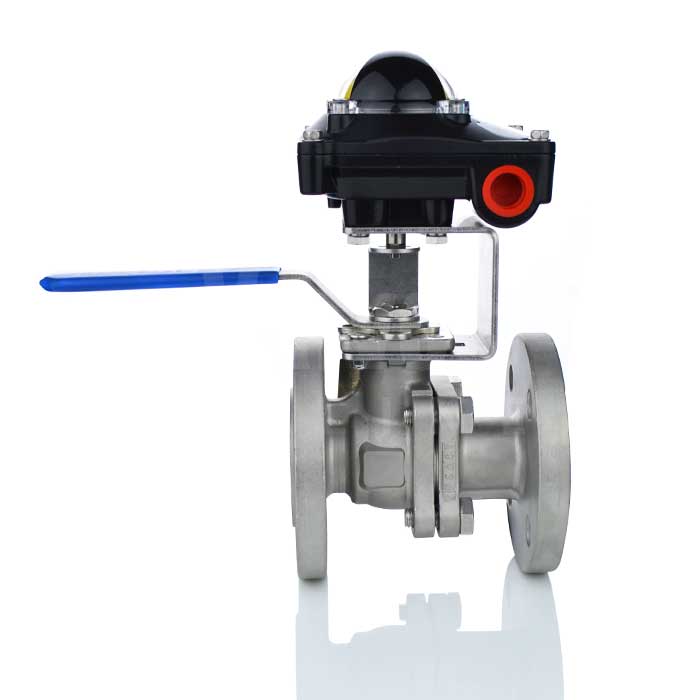

Flanged ANSI 150 Manual Ball Valve with Limit Switchbox
SKU LS5513
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- ANSI 150 Ball Valve with Feedback
- 2 Piece
- A351 CF8M Body
- 316 Stainless Steel Ball
- Flanged ANSI 150
- TFM4215 Seats
- Sizes 1/2" to 4"
- Ball Valve Anti-static & Firesafe to API607
- Lever operated with feedback signaller
- Optical indication
Description
This ANSI 150 flanged ball valve is a versatile isolating valve, offered in stainless steel, full bore and being a 2 piece design, in sizes 1/2" to 4".
This ball valve is firesafe and antistatic and comes fitted with a limit feedback switch that offers both optical and electric indication. The valve is lever operated for on / off operation (the valve feedback will only work in the open/closed position).
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
