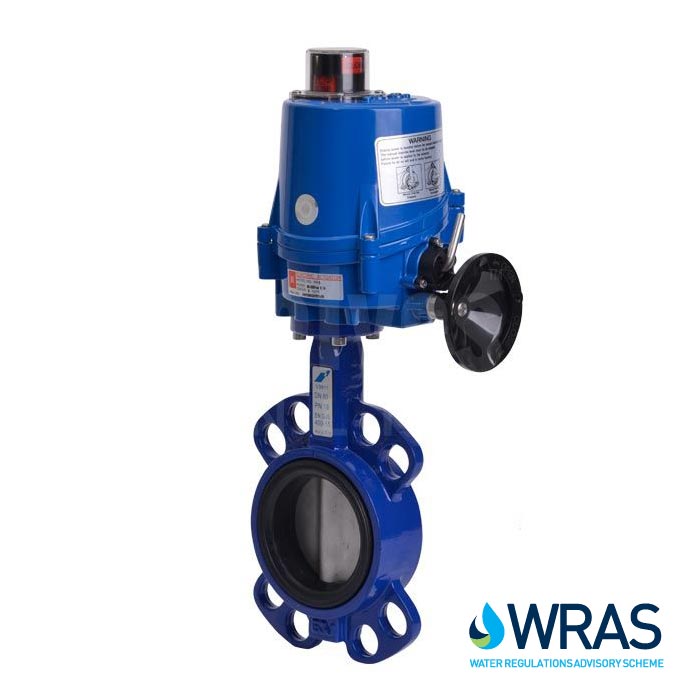

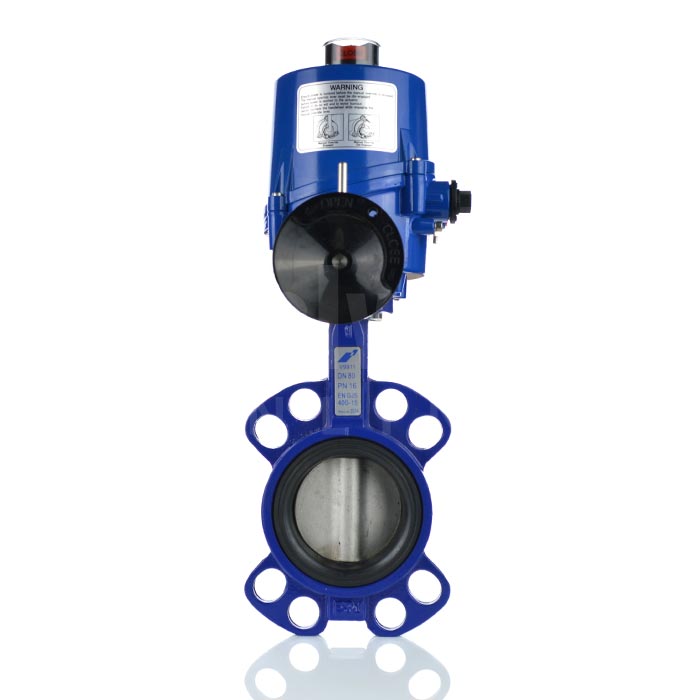

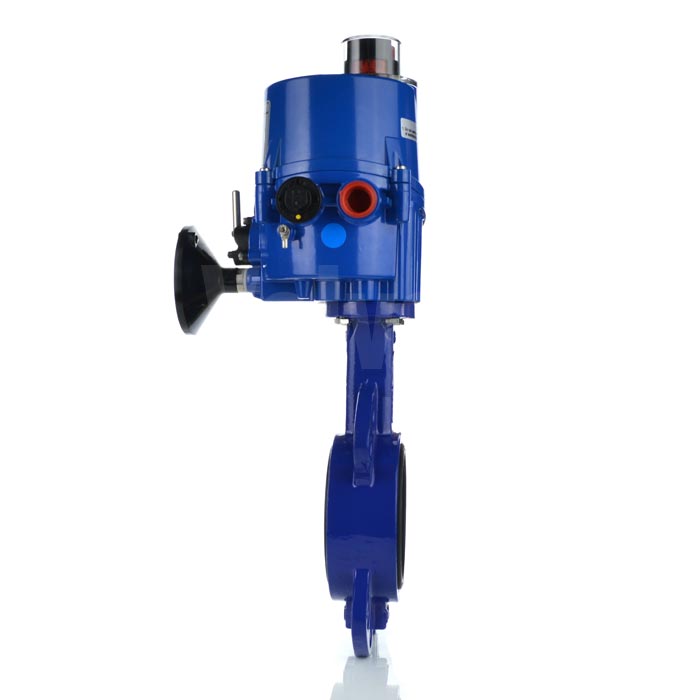

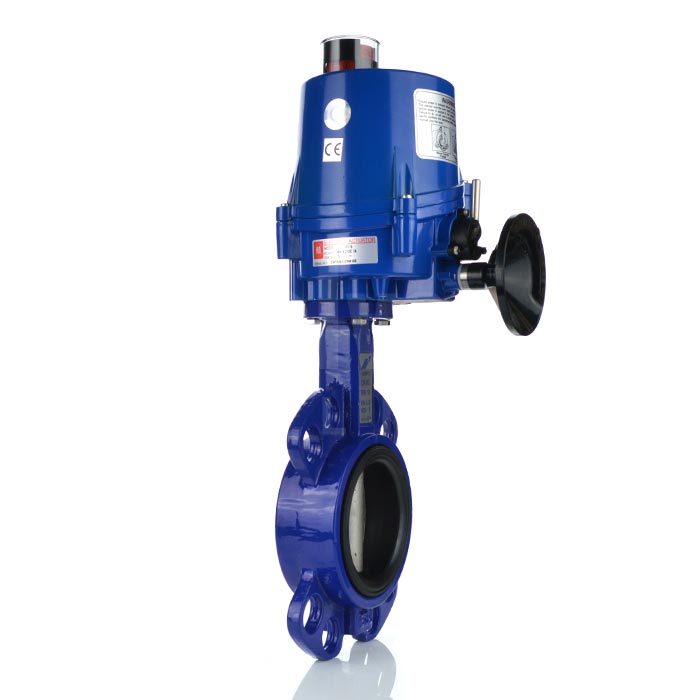

Electric Actuated WRAS Approved Wafer Pattern Butterfly Valve
SKU EA4686
from£364.14ex VAT Not the right one? Identify your valve by photo
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Motorised WRAS Butterfly Valve
- Electric Actuator
- Wafer Pattern
- To fit between PN6/10/16, ANSI 150, Table D & E Flanges
- Epoxy Coated Ductile Iron Body
- Stainless Steel Disc and Shaft
- EPDM liner
- Sizes: 2" to 12"
- WRAS Approved
Description
The VOLT electric actuated butterfly valve is suitable for use on potable water and the valve carries a WRAS Approval.
The valve is a wafer pattern design which will fit between various tables of flanges. It has an epoxy coated ductile iron body, a stainless steel disc and shaft with an EPDM liner.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- EPDM
- Industry / Approvals
- WRAS
