VOLT
Electric Actuated WRAS Approved Lugged PN16 Butterfly Valve
SKU EA4687
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuator
- Lugged and Tapped to suit PN16 Flanges
- Epoxy Coated Ductile Iron Body
- Stainless Steel Disc and Shaft
- EPDM Liner
- Sizes: 2" to 12"
- WRAS Approved
Description

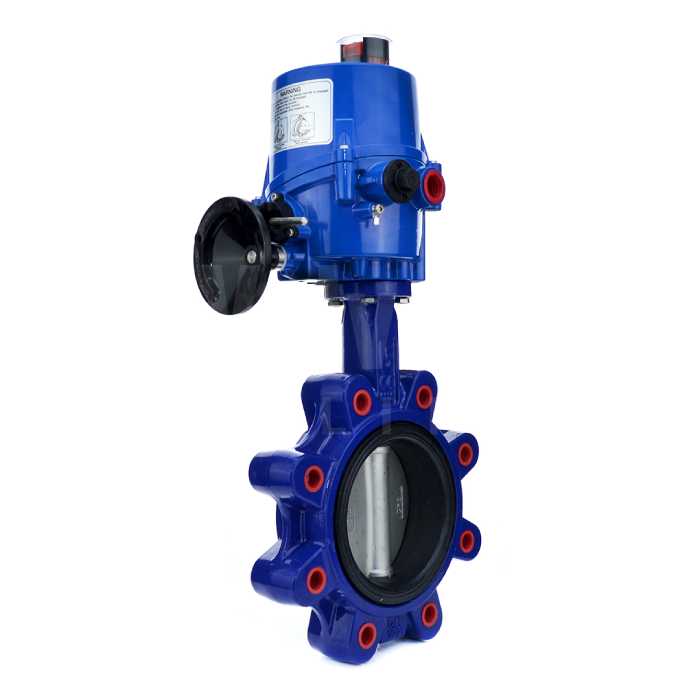

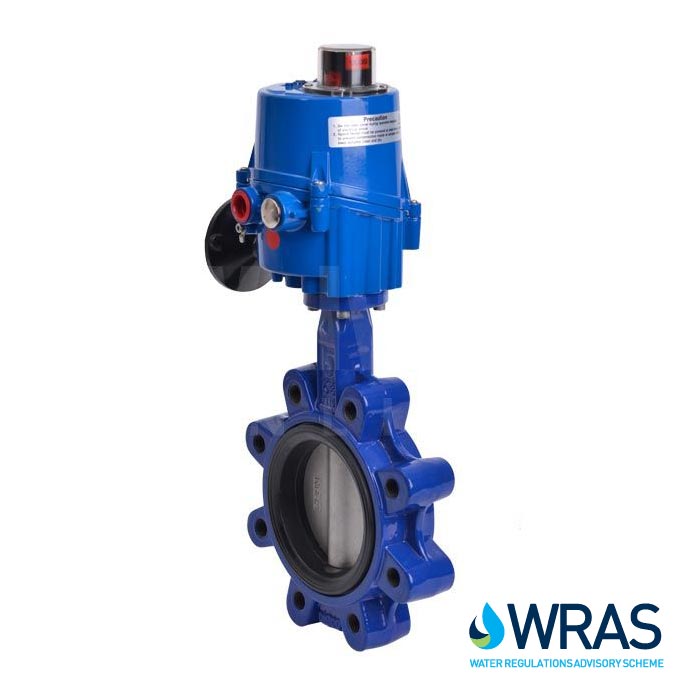

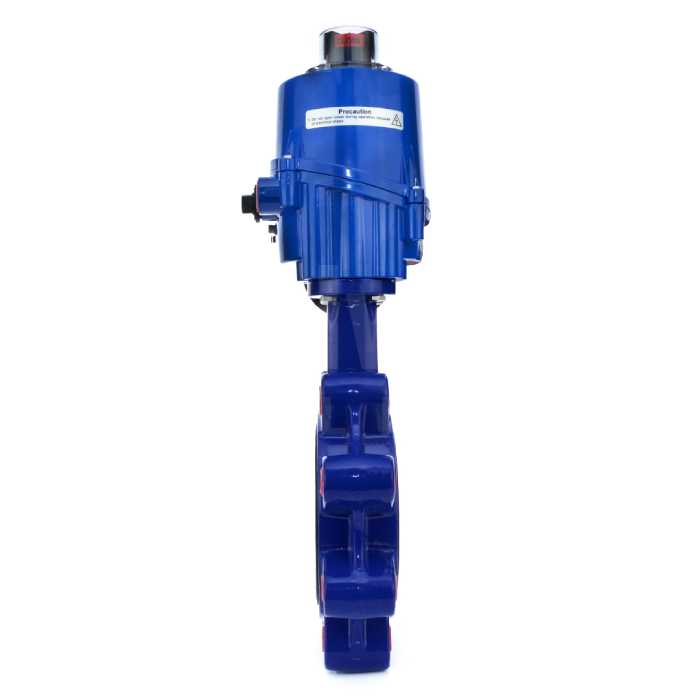

The VOLT electric actuated butterfly valve is suitable for use on potable water and the valve carries a WRAS Approval.
The valve is a Lugged and Tapped pattern design which will fit onto PN16 flanges. It has an epoxy coated ductile iron body, a stainless steel disc and shaft with an EPDM liner.
This valve is commonly used for applications such as ‘End of Line Duty’ or fitted before a pump for maintenance isolation.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Design
- Lugged
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- EPDM
- Industry / Approvals
- WRAS
