Images are illustrative and may not show every size or variation.
VOLT
Electric Actuated Series 88 Heavy Duty Ball Valve
SKU EA4109
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Powerful Electric actuator
- High performance, stainless steel ball valve
- Encapsulated body bolts
- Power Close / Power Open
- RPTFE Seats
- Sizes: 1/2" – 4"
- 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2") and 1000 PSI (2 1/2" to 4")
- Various Voltages
Description

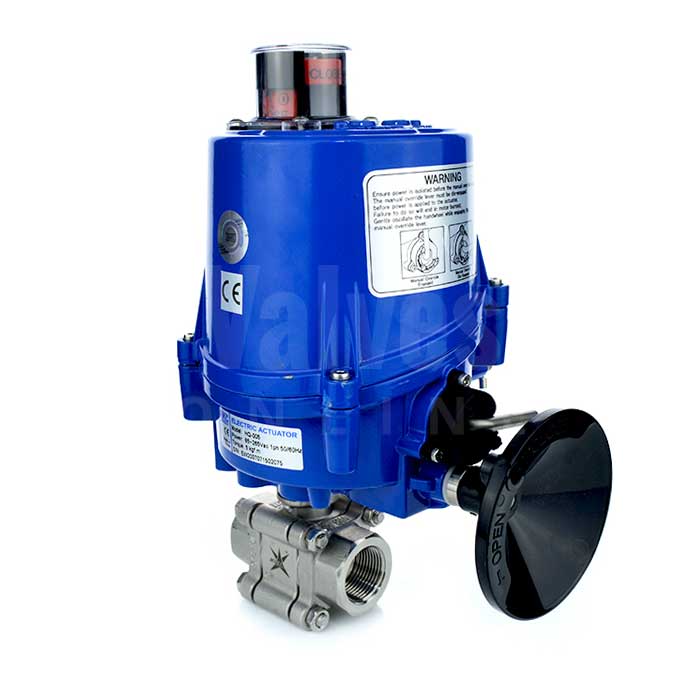

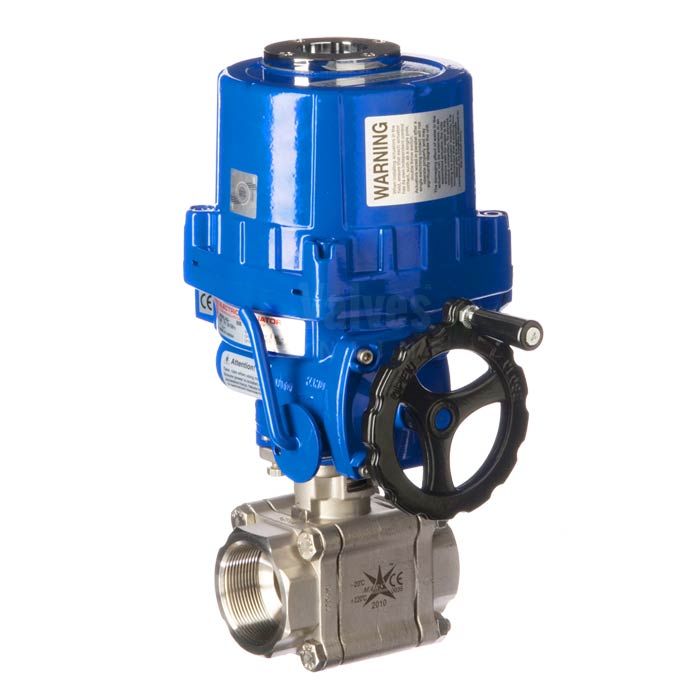

A fully encapsulated stainless steel, 3 piece ball valve fitted to an electric rotary actuator. This unique high performance, reduced bore ball valve offers pressures up to 2000 PSI and temperatures of up to 200°C.
The electric actuator is coupled to the valve via an ISO mounting pad, that reduces the need for brackets and couplings. End connections are offered in screwed BSPP, NPT, Butt Weld and Socket weld. The actuator is supplied in a full range of voltages and has limit switches, optical indicator, manual override and torque limiter as standard.
Key features:
Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Reduced Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 2000 PSI Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On / Off, Manual Override, Optical Indicator, Limit Switches
