Images are illustrative and may not show every size or variation.
VOLT

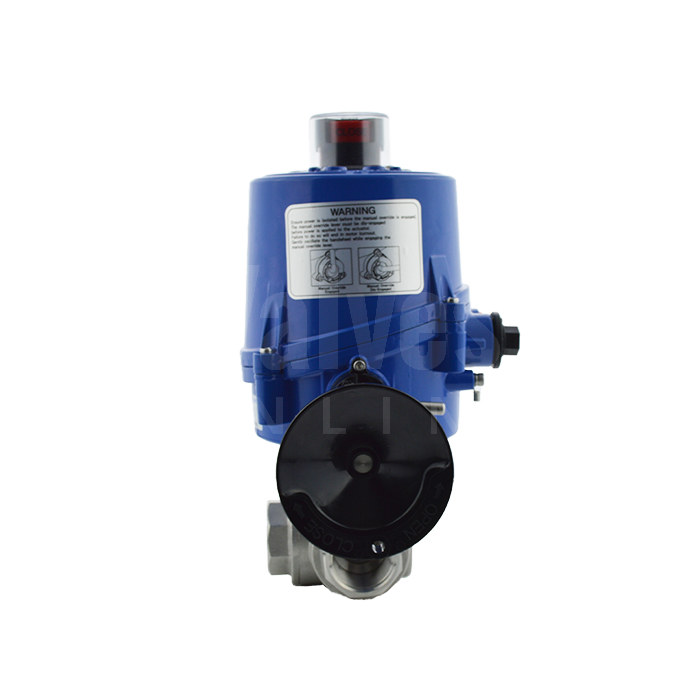

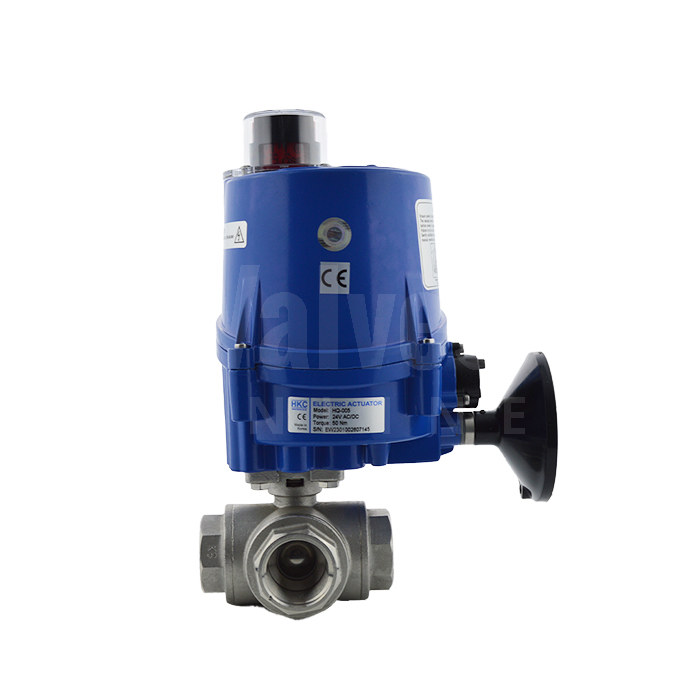

Electric Actuated Screwed 3 Way Brass Ball Valve
SKU EA4321
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated 3 Way Brass Ball Valve
- Brass Body
- L or T Port
- Reduced Bore
- PTFE seats
- Screwed BSP
- Sizes: 1/2" to 2 1/2"
Description
Our Electric Actuated Screwed 3 Way Brass Ball Valve is suitable for general and industrial chemical applications, offering value for money, performance and reliability. An electrically actuated 3 way L or T port ,reduced bore valve with Brass body and PTFE seat. Available in Screwed BSP, sizes 1/2" to 2 1/2".
Available voltage: 24V DC, 24V AC, 110V AC and 230V AC.
Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
- Design
- 3 Way, Reduced Bore
- Industry / Approvals
- HVAC
- Temperature Range
- Up to: 100°C
- Pressure
- PN40 Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
