Images are illustrative and may not show every size or variation.
VOLT

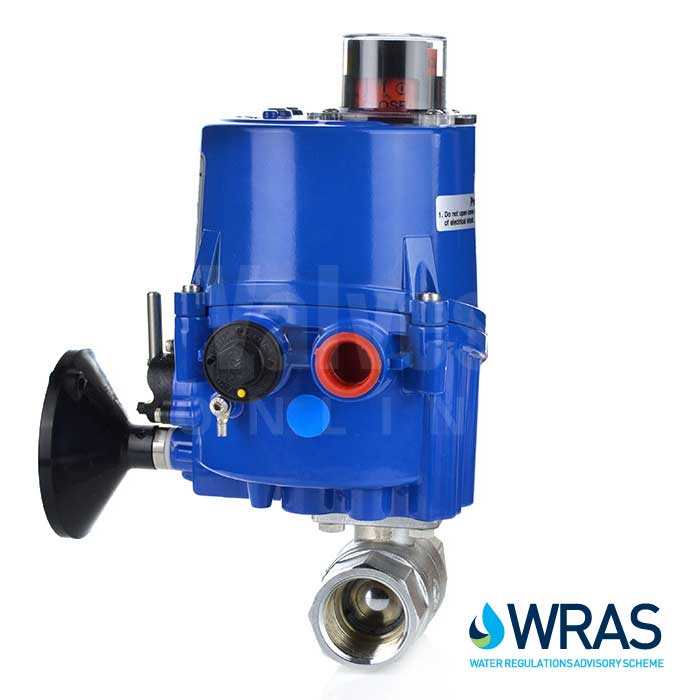

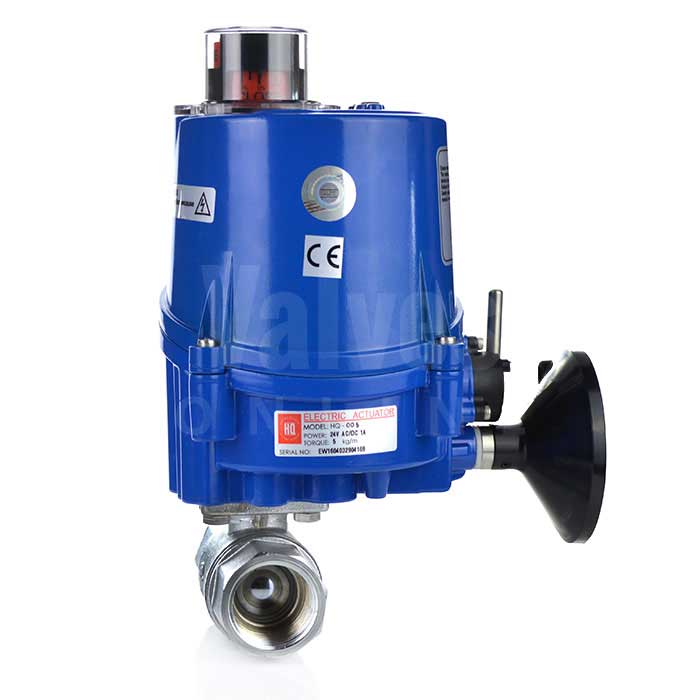

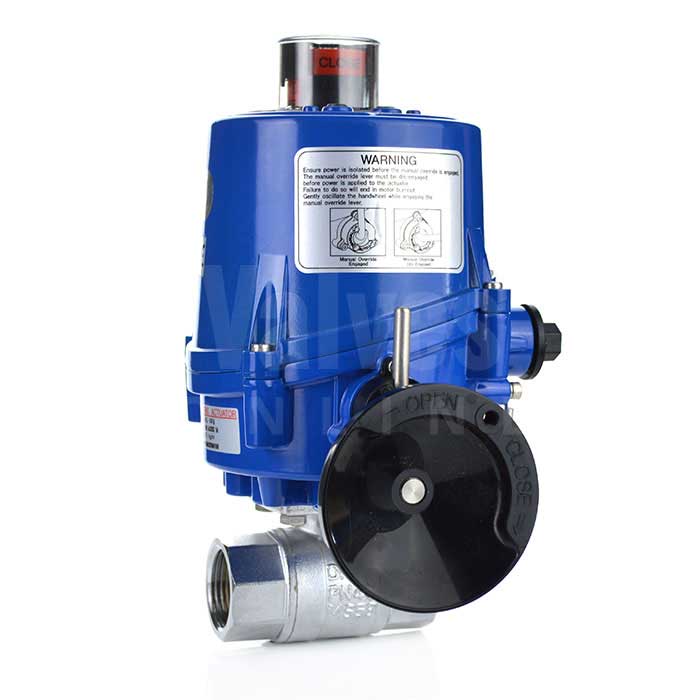

Electric Actuated Screwed 2 Way Brass Ball Valve - WRAS Approved
SKU EA4320
from£327.24ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- WRAS Approved Ball Valve
- Powerful Electric HQ Actuator
- Screwed BSPP
- Sizes 1/2" to 2"
- Pressure range: Up to 40 Bar
- Temperature range: -20°C to 120°C
Description
A powerful electric actuated, screwed BSPP, 2 Way Brass Ball Valve suitable for on/off duty offering WRAS approval on the valve suitable for isolation in drinking water and similar applications.
Available voltages: 24V DC, 24V AC, 110V AC and 230V AC.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Female x Female
- Industry / Approvals
- WRAS, HVAC
- Temperature Range
- -20°C to 120°C
- Pressure
- Up to 40 Bar
- Actuator
- HQ005 Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC and 230V AC
- Actuator Features
- On/Off, Manual Override Handwheel, Optical Position Indicator, Limit Switches
