VOLT

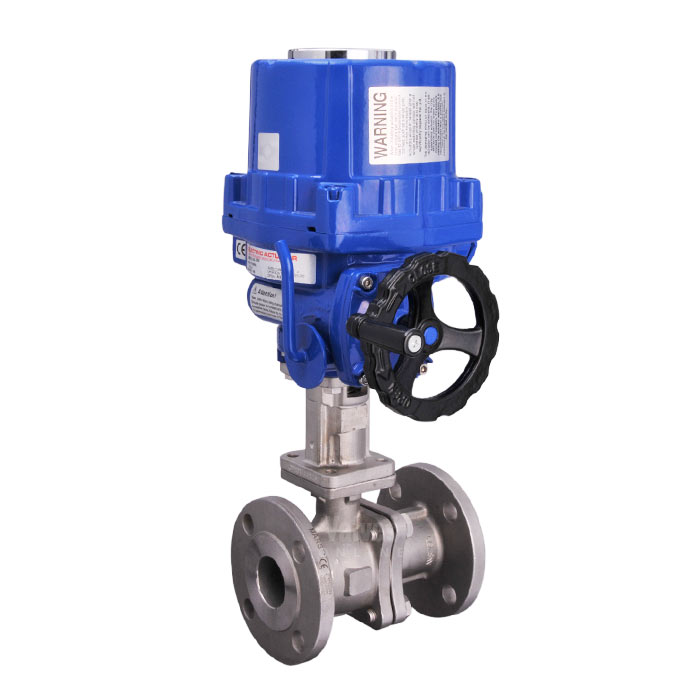

Electric Actuated High Temperature Flanged Ball Valve
SKU EA4290
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Flanged PN16 or ANSI 150
- Stainless Steel ball valve
- Carbon filled reinforced PTFE seat and seal
- High performance, full bore
- Sizes 1/2" to 6"
- Suitable for high temperatures including steam applications
- Powerful electric actuator
Description
A high temperature electrically actuated ball valve in stainless steel and flanged PN16 or ANSI 150. The high performance, full bore ball valve is fitted with carbon filled reinforced PTFE seats and seals and is linked to the electric actuator by a heat dissipating extension (TSM).
The powerful electric actuator offers a reliable on/off control coupled with long service life and repeatability.
The valve is fully maintainable and offered in sizes from 1/2" to 6" and suitable for high temperature applications including steam upto 200°C
Available voltages: 24V DC, 24V AC, 110V AC and 230V AC.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Flanged PN16, Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 12 Bar
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On / Off, Manual Override, Limit Switches, Optical Indicator
