VOLT

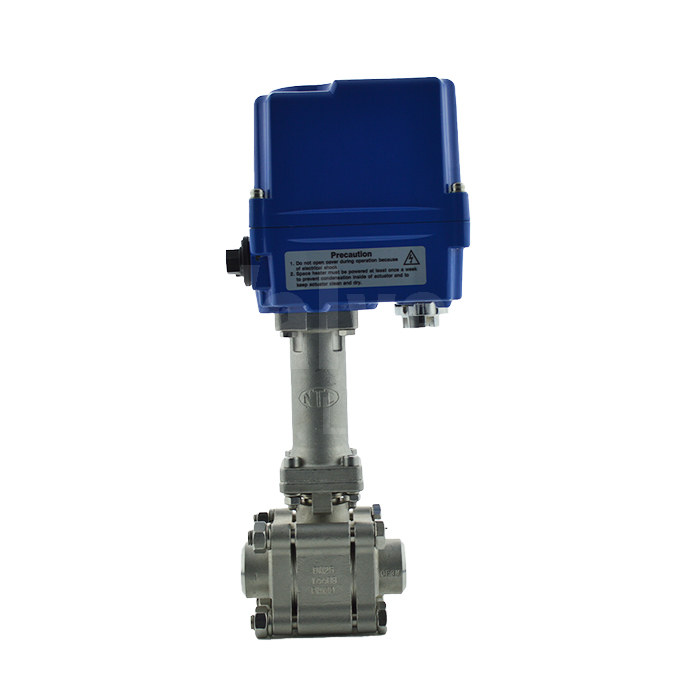

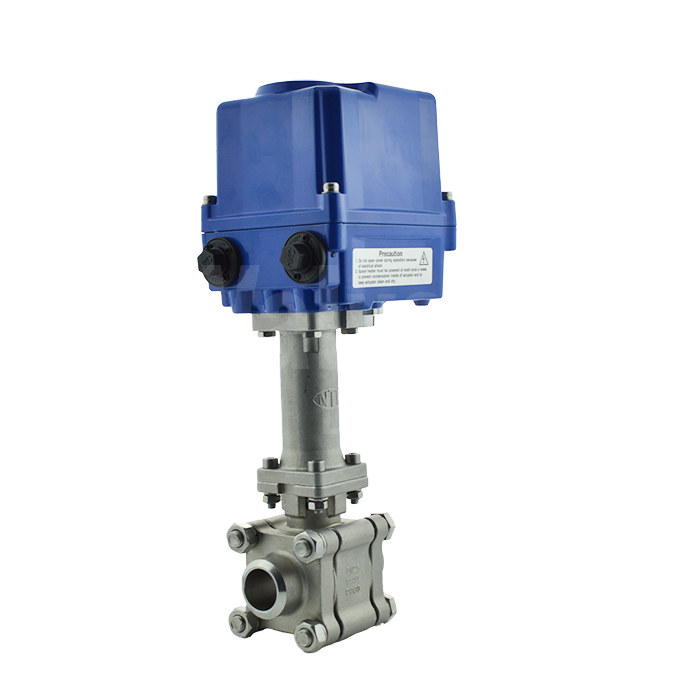

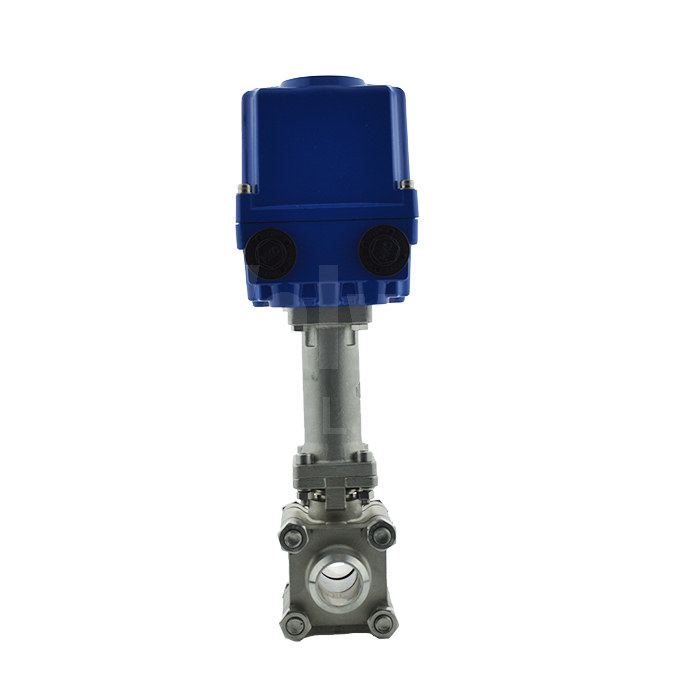

Electric Actuated High Temperature Ball Valve
SKU EA4291
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Powerful electric actuator
- Stainless Steel ball valve body
- Carbon filled reinforced PTFE seat and seal
- Three piece, high performance, full bore
- Screwed BSP, Socket Weld or NPT end connections
- Sizes 1/2" to 2"
- Suitable for high temperatures including steam
Description
A high temperature, electrically actuated stainless steel ball valve in sizes ranging from 1/2" to 2". End connections are offered screwed BSP, NPT and Socket weld. The port is full bore and seat materials are carbon filled reinforced PTFE.
The electric actuator offers high performance on/off control, supplied in various voltages and many options as standard.
In order to protect the actuator from the valve a heat dissipating extension (TSM) is fitted.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 2000 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On / Off, Manual Override, Limit Switches, Optical Indicator
