VOLT
Electric Actuated Economy Stainless Steel PN16 Ball Valve
SKU EE5245
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated Economy PN16 Ball Valve
- Cost Effective
- High flow rates
- Powerful electric actuator
- Various voltages
- Flanged PN16
- CF8M 316 Stainless Steel
- Sizes 1/2" to 8"
Description

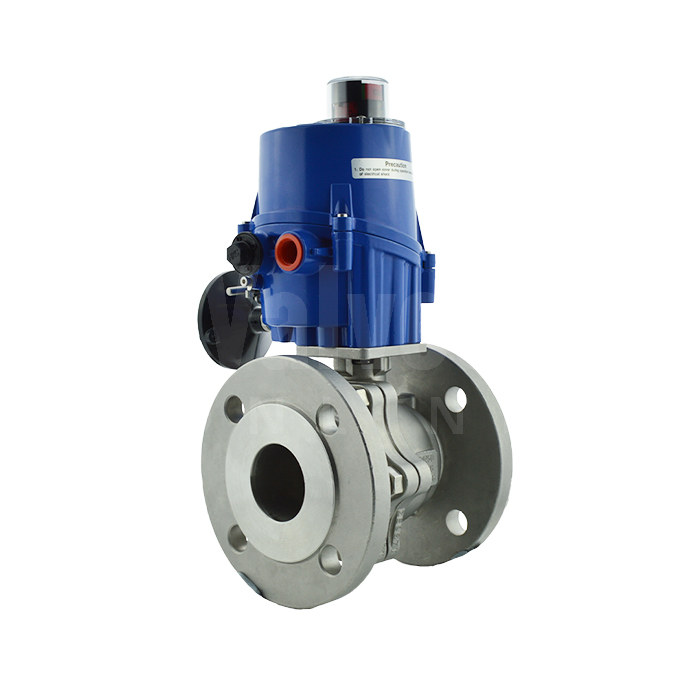

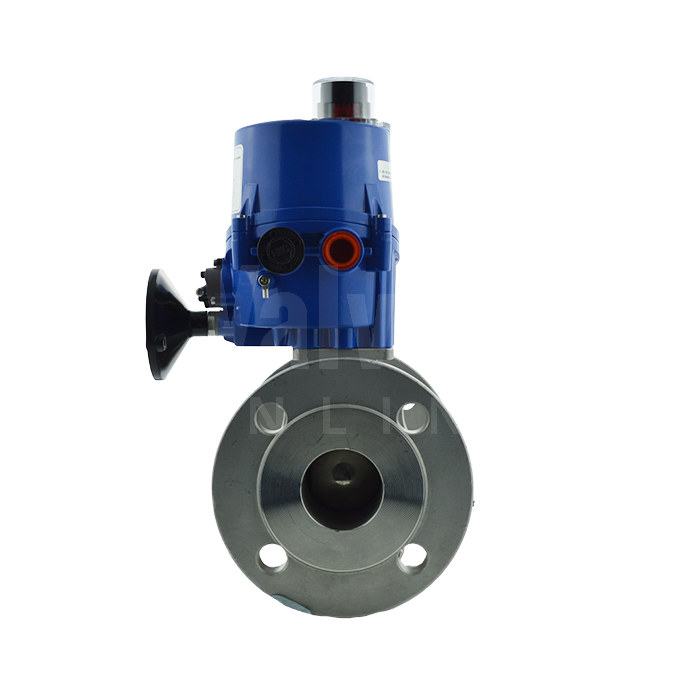

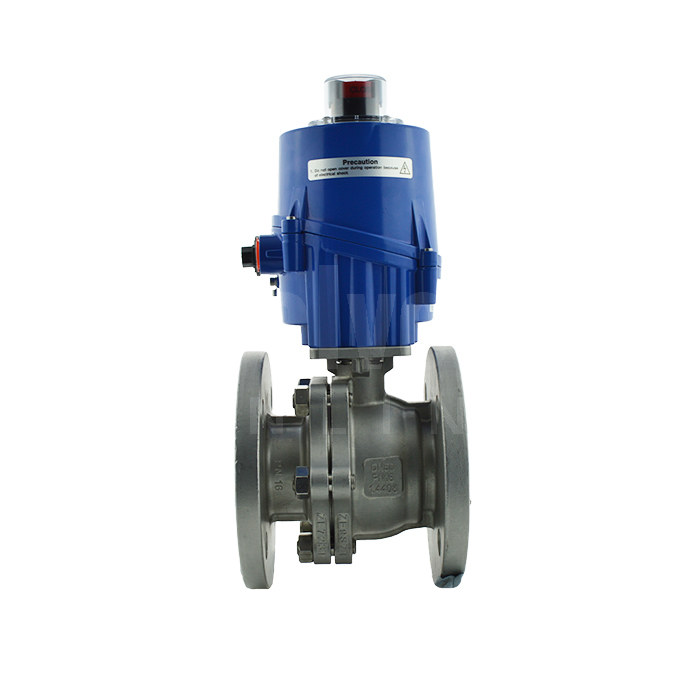

A combination of a powerful electric actuator and stainless steel PN16 Flanged Ball Valve. This unit offers both economy and provides safe on/off operation for general and industrial applications, offering isolation, performance and reliability.
The electric HQ actuator fit directly onto the high performance ball valve and includes as standard manual de-clutch able handwheel, four limit switches, optical indication and anti-condensation heaters. Available in a wide range of voltages to suit your needs.
Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Design
- 2 Piece, Full Bore
- Temperature Range
- -20°C to 180°C
- Pressure
- PN16 Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator, Anti-Condensation Heaters
