Images are illustrative and may not show every size or variation.
VOLT

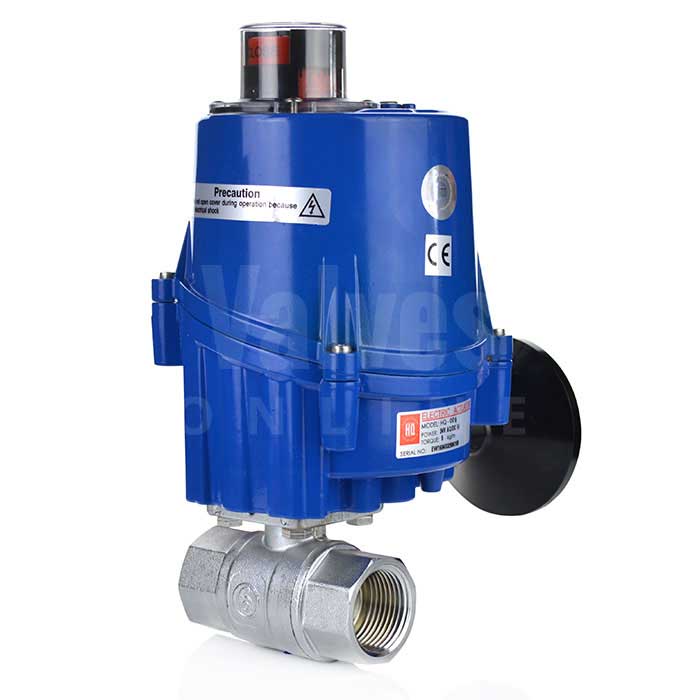

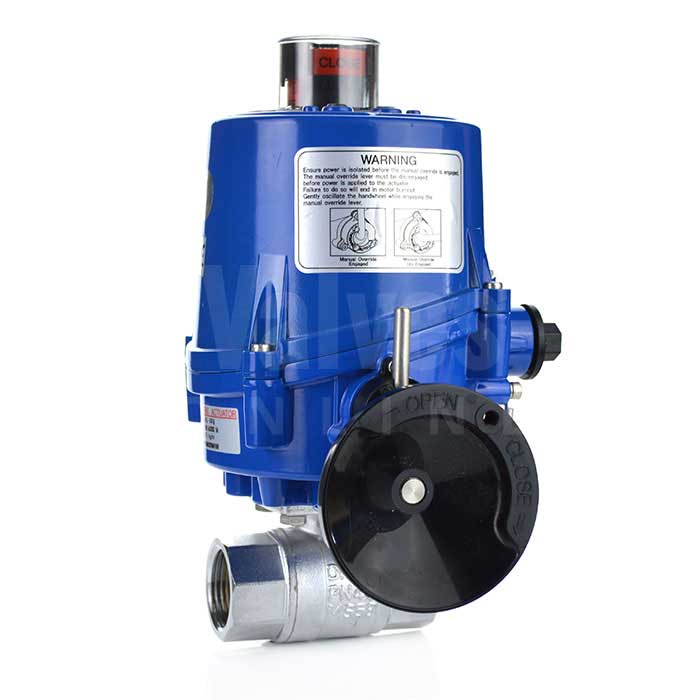

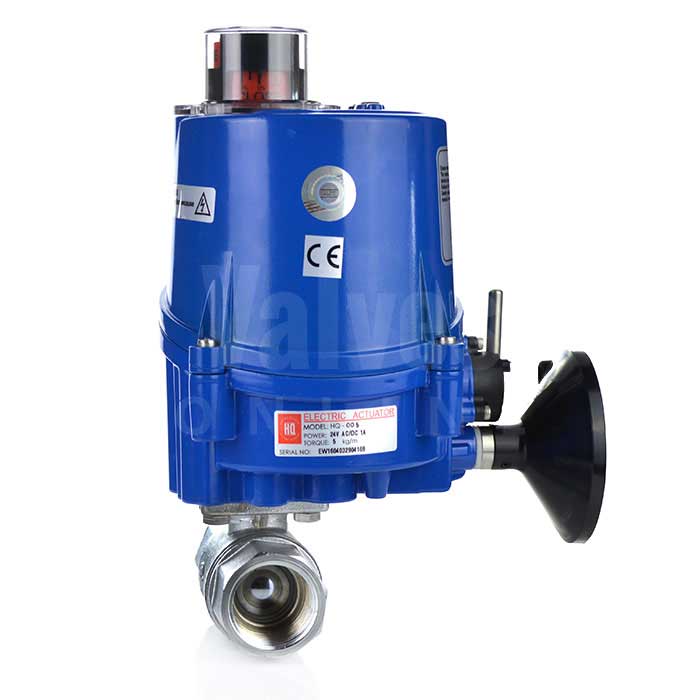

Electric Actuated Economy Screwed 2 Way Brass Ball Valve
SKU EE4320
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Brass Ball Valve
- Powerful electric actuator
- Screwed BSPP
- Sizes 1/4" to 3"
- Temperature range: -20°C to 120°C
Description
Economy Electric Actuated Screwed, Brass Ball Valve suitable for general purpose, HVAC and industrial applications; on/off control used for water isolation, compressed air and similar applications. The valve is nickel plated brass having PTFE seats, directly mounted onto a powerful HQ5 electric actuator.
Available voltages: 24V DC, 24V AC, 110V AC and 230V AC.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Female x Female
- Industry / Approvals
- HVAC
- Temperature Range
- -20°C to 120°C
- Pressure
- Up to 40 Bar
- Actuator
- HQ005 Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC and 230V AC
- Actuator Features
- On/Off, Manual Overide Handwheel, Optical Position Indicator, Limit Switches
