VOLT

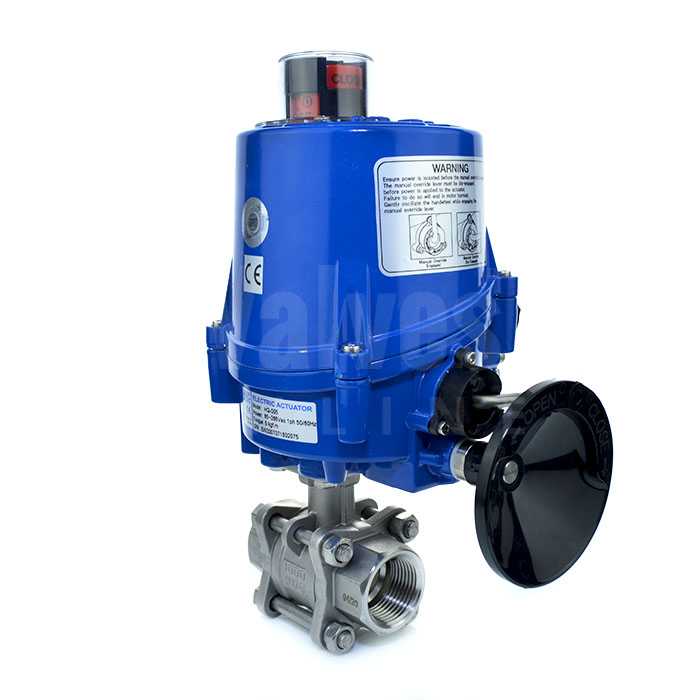

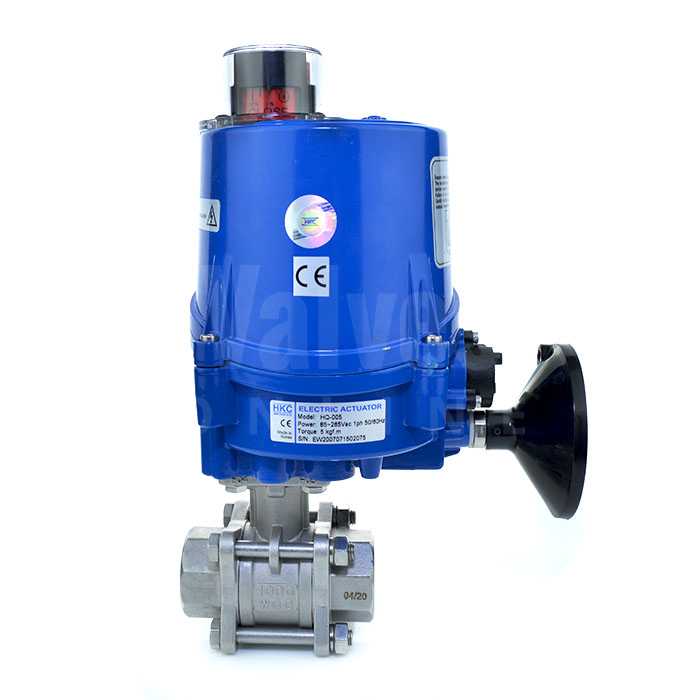

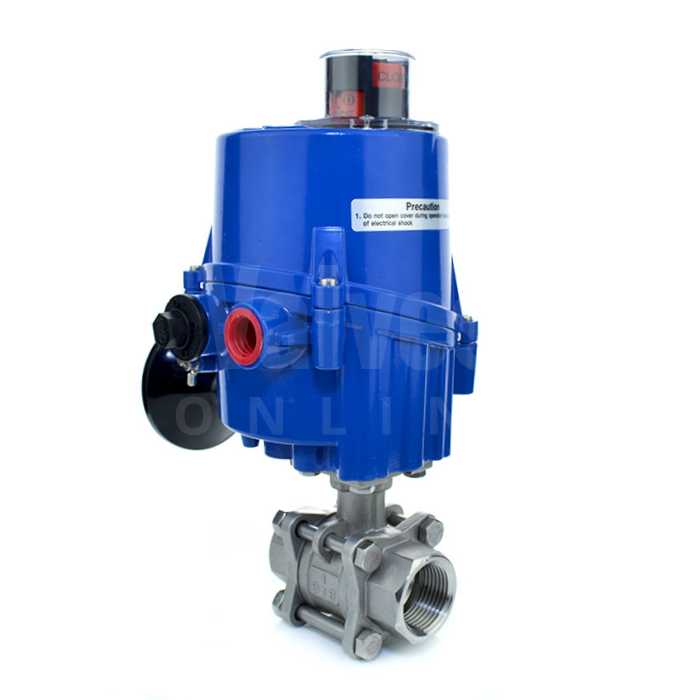

Electric Actuated Economy 3 Piece Screwed Stainless Steel Ball Valve
SKU EE4107
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Powerful electric actuator
- 316 Stainless Steel, three piece body
- Screwed BSPT
- Sizes 1/4" to 4"
- Voltage options: 24V DC, 24V, 110V, 230V AC
Description
An economical Electric Actuated 3 Piece, fully maintainable Stainless Steel Ball Valve, screwed BSPT. Full bore port offering on/off isolating control, providing a cost-effective solution for the 'shut-off' of medium flows on semi aggressive fluids.
The electric HQ actuator fits directly onto the high performance ball valve and includes as standard manual de-clutch able handwheel, four limit switches, optical indication and anti-condensation heaters. Available in a wide range of voltages to suit your needs.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On / Off, Manual Override, Limit Switches, Optical Indicator
