Images are illustrative and may not show every size or variation.
VOLT

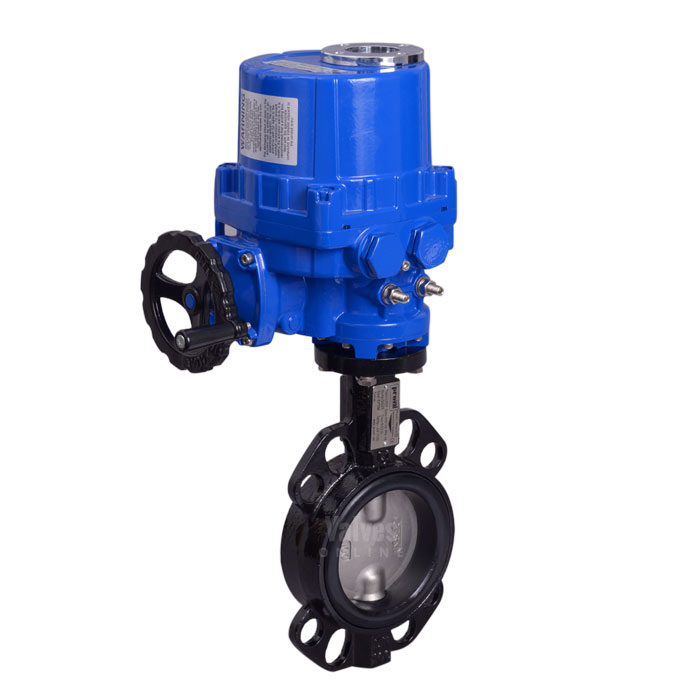

Electric Actuated Butterfly Valve Wafer Pattern
SKU EA5260
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated
- Wafer Pattern
- Epoxy Coated Cast Ductile Iron Body
- 316 Stainless Steel Disc and Shaft
- EPDM or NBR (BUNA) liner
- Sizes 2" to 12"
Description
Our Electric Actuated Butterfly Valve Wafer Pattern is suitable to fit between PN10/16 flanges, ideal for a range of general purpose, industrial and process applications. Resilient seated, Wafer Pattern butterfly valve with Epoxy Coated Cast Ductile Iron Body, 316 Stainless Steel Disc and Shaft. EPDM or NBR (BUNA) liner options.
Available voltages: 24V DC, 24V AC, 110V AC and 230V AC.
Typical applications include:
VOLT Butterfly valves are maintenance free, economical and comply with 97/23/CE (PED) Directive CE 1115.
Electric Actuated Butterfly Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel, Stainless Steel 316L
- Liner
- EPDM, NBR (BUNA)
- Industry / Approvals
- HVAC
