Images are illustrative and may not show every size or variation.
VOLT

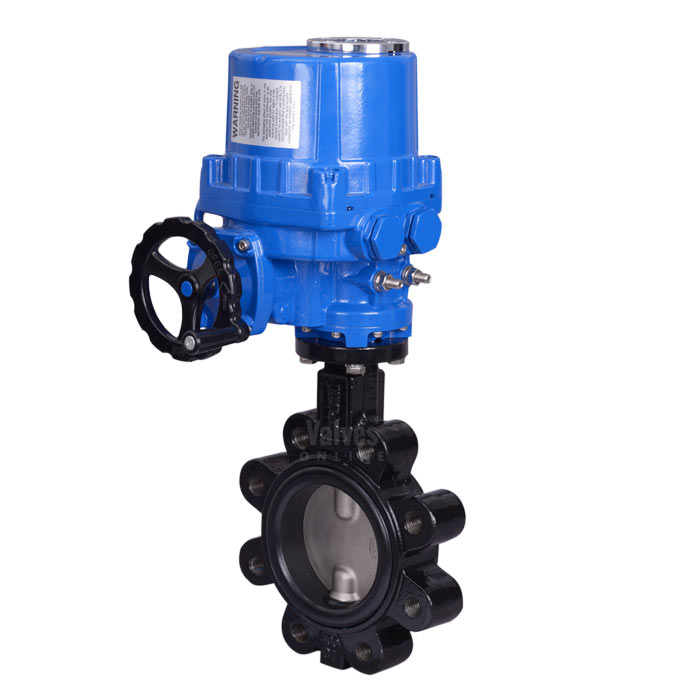

Electric Actuated Butterfly Valve Lugged PN16
SKU EA5261
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated
- Lugged PN16
- Epoxy Coated Cast Ductile Iron Body
- 316 Stainless Steel Disc and Shaft
- EPDM or NBR (BUNA) liner
- Sizes 2" to 12"
Description
Our Electric Actuated Butterfly Valve Lugged PN16 is suitable for a range of general purpose, industrial and process applications. Resilient seated Lugged and tapped butterfly valve with Epoxy Coated Cast Ductile Iron Body, 316 Stainless Steel Disc and Shaft. EPDM or NBR (BUNA) liner options.
Available voltages: 24V DC, 24V AC, 110V AC and 230V AC.
Typical applications include:
Butterfly valves are maintenance free, economical and comply with 97/23/CE (PED) Directive CE 1115.
Electric Actuated Butterfly Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- Design
- Lugged
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel, Stainless Steel 316L
- Liner
- EPDM, NBR (BUNA)
- Industry / Approvals
- HVAC
