Images are illustrative and may not show every size or variation.
VOLT

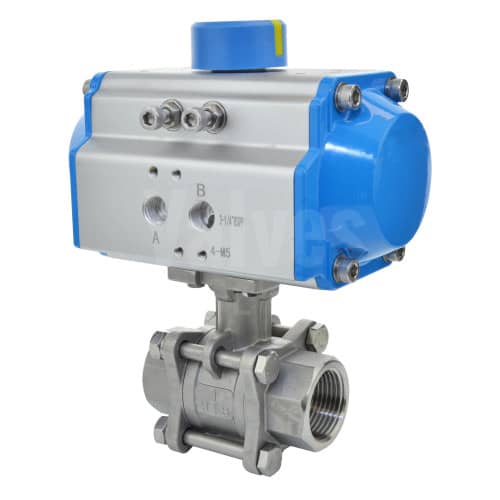

Economy Pneumatic Actuated Stainless Steel Ball Valve – Screwed BSPT
SKU PE4323
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Actuated Stainless Steel Ball Valve
- Pneumatic Actuator both in SR and DA Versions
- Stainless Steel Ball Valve, CF8M body
- Three-piece, full bore
- Screwed BSPT
- Sizes 1/2" to 4"
- Temperature range: -20°C to 200°C
- Pressure range: PN82 Rated
- Comprised of ATEX approved components
Description

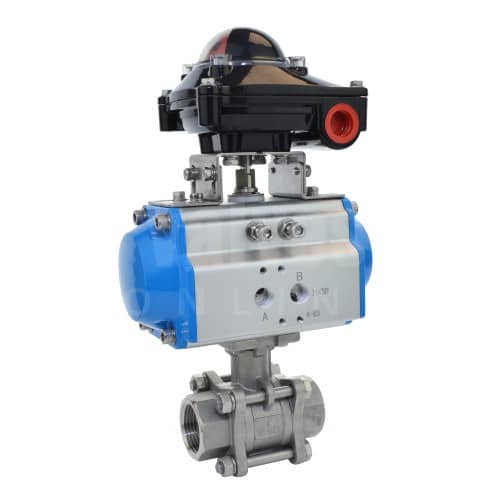

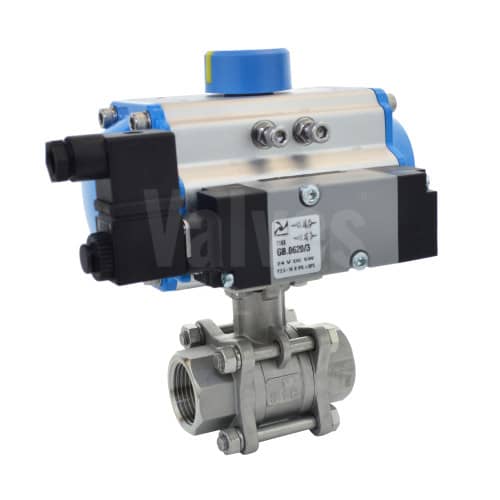

A pneumatic actuated screwed 2-way stainless steel ball valve with R-PTFE seats is suitable for many process and industrial applications. Pneumatically operated, actuation is either Single (spring closed or open) or Double acting with a range of configurable modular options for your automation process, including limit switches, solenoid valves and positioners.

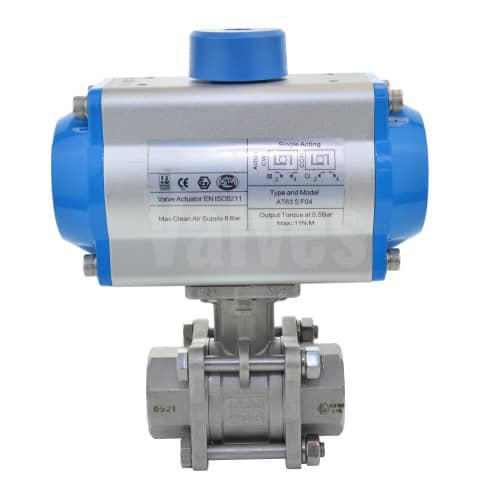

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Comprised of ATEX approved components.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements, offering complete confidence as an integral part of your automatic system. During build up all actuated packages are rigorously inspected, and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSPT
- Body Material
- Stainless Steel
- Seat Material
- R-PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to 1000 PSI (subject to configuration)
- Actuator
- Economy Pneumatic Actuator
