Images are illustrative and may not show every size or variation.
VOLT

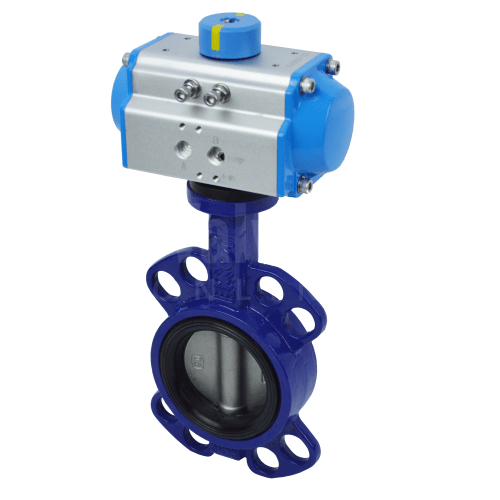

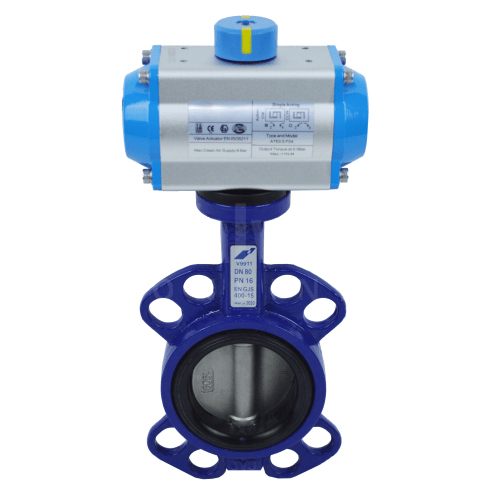

Economy Pneumatic Actuated NBR Lined Wafer Pattern Butterfly Valve
SKU PE4600
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated Butterfly Valve
- Wafer Pattern
- Epoxy Coated Ductile Iron Body
- Stainless Steel Disc and Shaft
- NBR Liner
- Sizes: 1 1/2" to 12"
- High Flow Rates
- To fit between PN6/10/16, ANSI 150, Table D & E Flanges
- Spring Close or Double Acting Actuator
Description
A pneumatic actuated wafer pattern butterfly valve with NBR liner suitable for fitting between PN6/10/16, AISI 150, Table D and E Flanges.

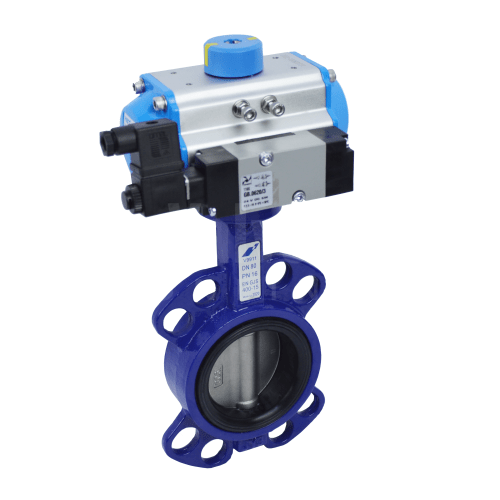

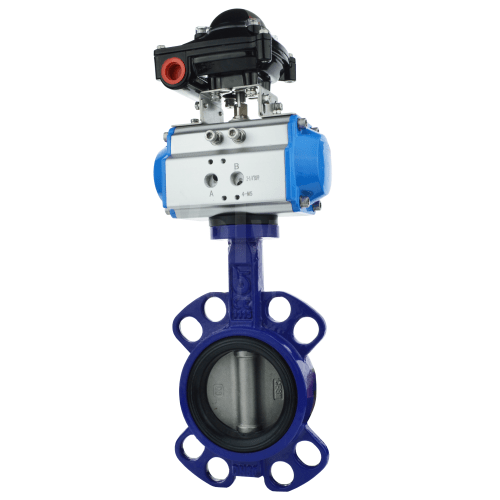

The butterfly valve has an epoxy coated ductile iron body, a soft NBR seat and stainless steel disc and shaft. The pneumatic actuator is available in either single or double acting and has an interface for fitting pilot solenoid valves and a switchbox.
Pneumatic Actuated Butterfly Valves are designed to meet the demanding needs of today's process flow control requirements, offering complete confidence as an integral part of your automatic system. During build up all actuated packages are rigorously inspected, and 100% factory tested prior to dispatch.
Economy Wafer Pattern NBR Butterfly Valve With Pneumatic Actuator Datasheet
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- NBR (BUNA)
- Main Features
- Wafer Pattern NBR Liner 1 1/2" to 12"
