Images are illustrative and may not show every size or variation.
VOLT

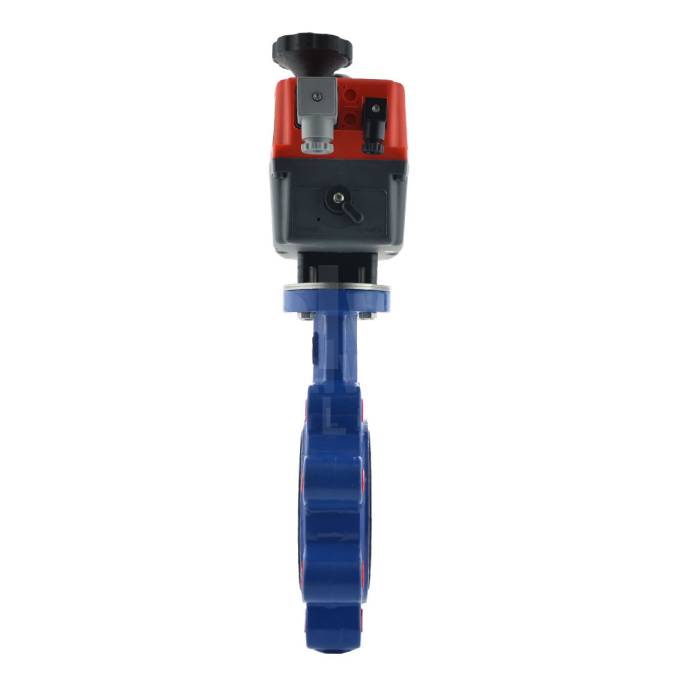

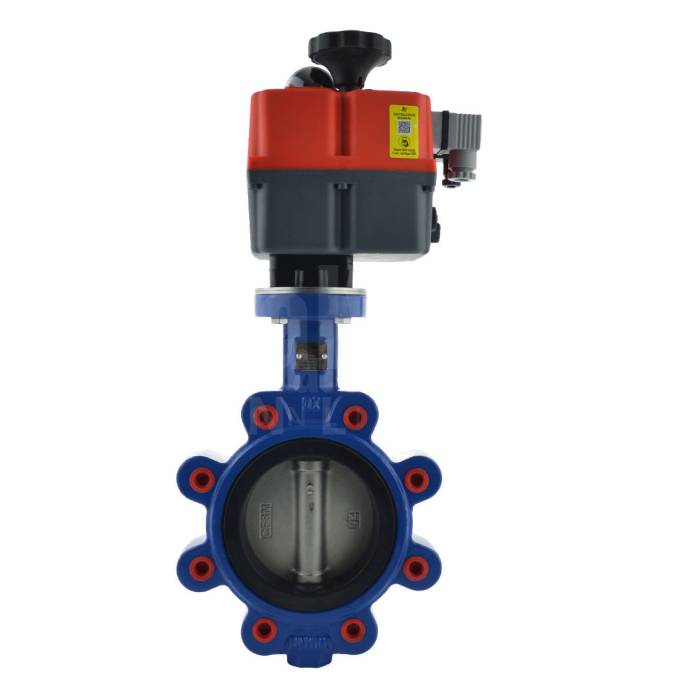

Economy J+J Electric Actuated Lugged Butterfly Valve
SKU EE4691
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Motorized Lugged & Tapped Butterfly Valve
- J+J Electric Actuator
- Ductile Iron Butterfly Valve Body
- 316 Stainless Steel Disc
- EPDM Liner
- Sizes: 1 1/2" to 8"
- Suitable for mounting between flanges: PN16
- WRAS Approved
Description
This J+J electric actuated economy lugged and tapped butterfly valve with lever or gearbox operator is suitable to fit on to PN16 flanges, featuring a ductile iron body, with stainless steel disc and EPDM liner.
The butterfly valve is WRAS Approved and has an EPDM liner that is suitable for use with drinking/potable water. It has a stainless steel disc and shaft.
The actuator is a J+J 4C which is a powerful yet lightweight unit that is ideal for use with this valve on open/closed isolation duty. The actuator has options for various voltages, in addition it is supplied with anti condensation heaters, limit and feedback switches, manual override and position indication all fitted as standard and housed in a IP67 weatherproof enclosure.
Technical specification
- Design
- Lugged, Lugged + Tapped
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Disc Material
- Stainless Steel
- Liner
- EPDM
