Economy Electric Motorised WRAS Approved Brass Ball Valve
SKU EA4322
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated WRAS Approved Ball Valve
- 1/2” - 1" Screwed BSPP
- 24VDC, 110 & 230 Volt AC
- IP67 Aluminium housing
- Optical and electrical indication
- Manual Emergency Lever
- 4 off limit switches
- Anti condensation heater
- 3m Flying lead
Description

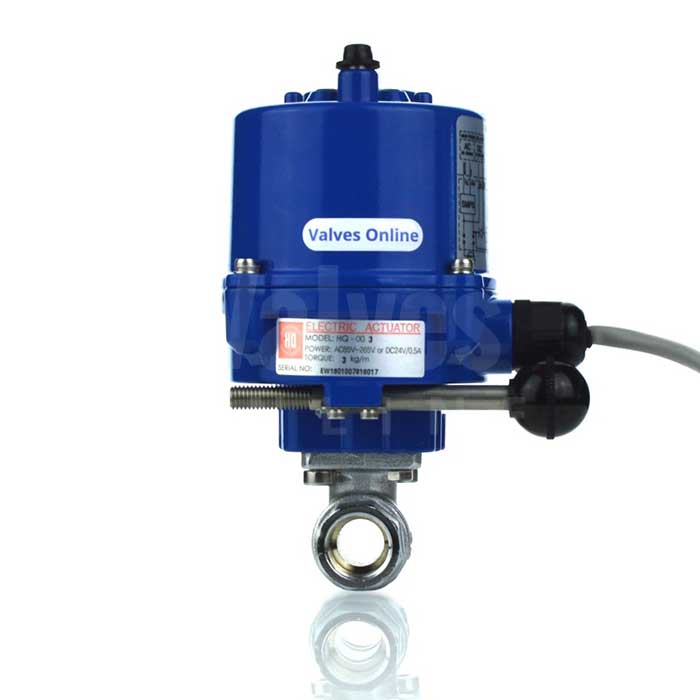

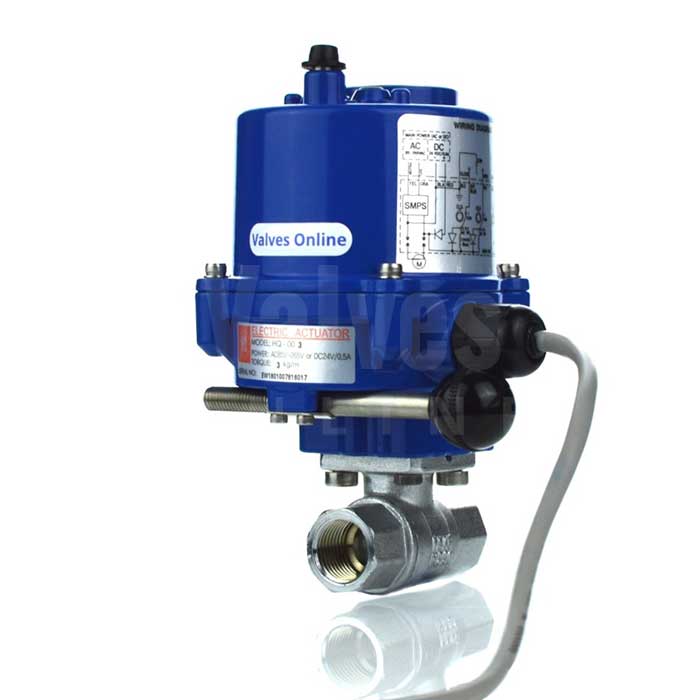

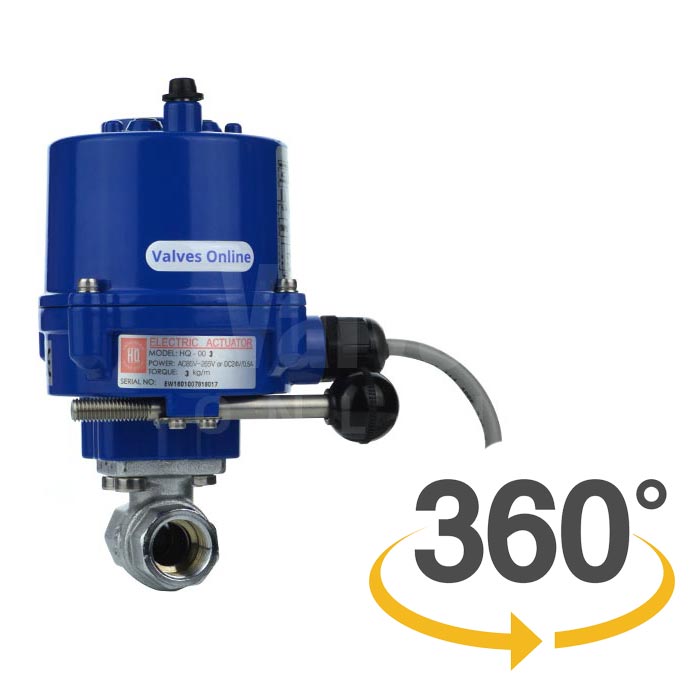

A low cost electric driven WRAS Approved ball valve fitted to our mini electric actuator. Specifically designed for on/off operation.
The unit comprises of a compact and lightweight electric actuator that’s fitted to a 2 way screwed full bore brass ball valve that is suitable and approved for isolation of drinking water and similar applications.
The HQ003 electric actuator is specially designed for easy installation having pre wired flying leads, IP67 protected with manual override and limit switches.
This High Quality unit provides optical position indication and electrical components and alloy gearing ensure reliability and extended life span.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- WRAS
- Temperature Range
- 20°C to 95°C
- Pressure
- Up to: PN40, 580 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24VDC, 110 & 230 Volt AC
- Actuator Features
- On/Off, Manual Override, IP67 Housing, Limit Switches, Optical Indicator
