Images are illustrative and may not show every size or variation.
VOLT

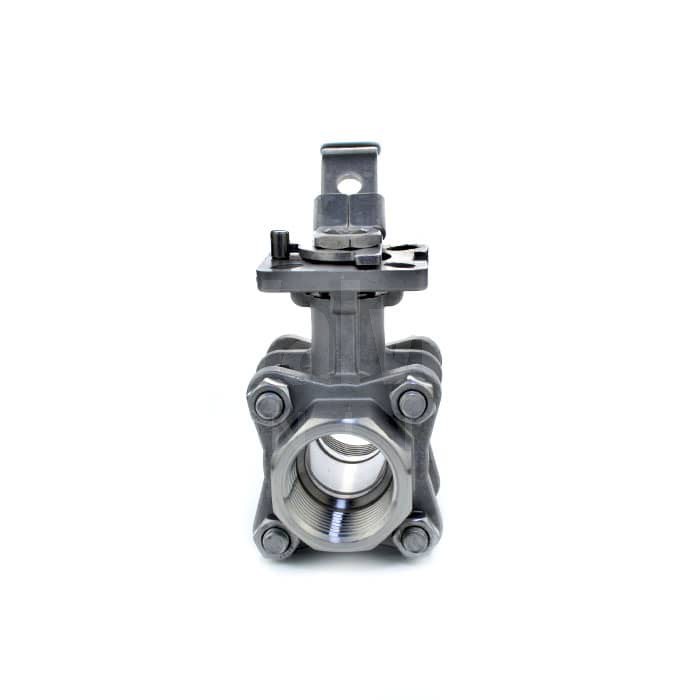

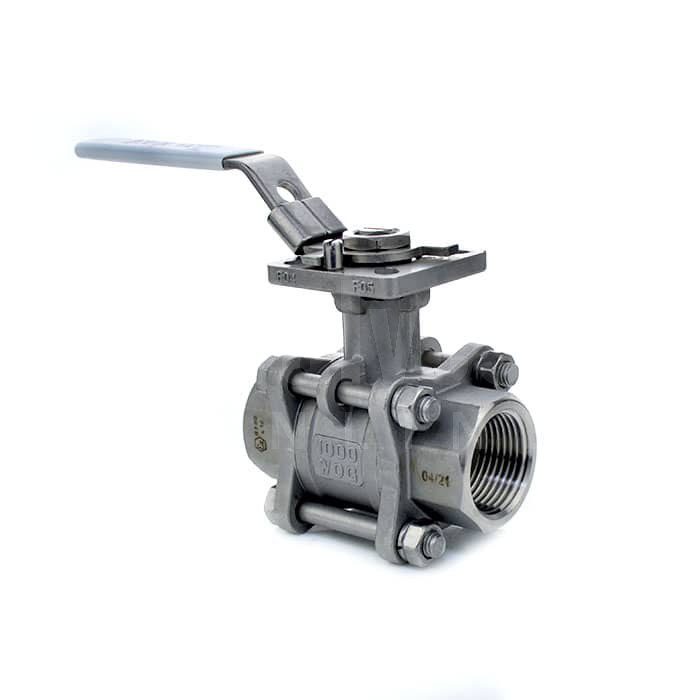

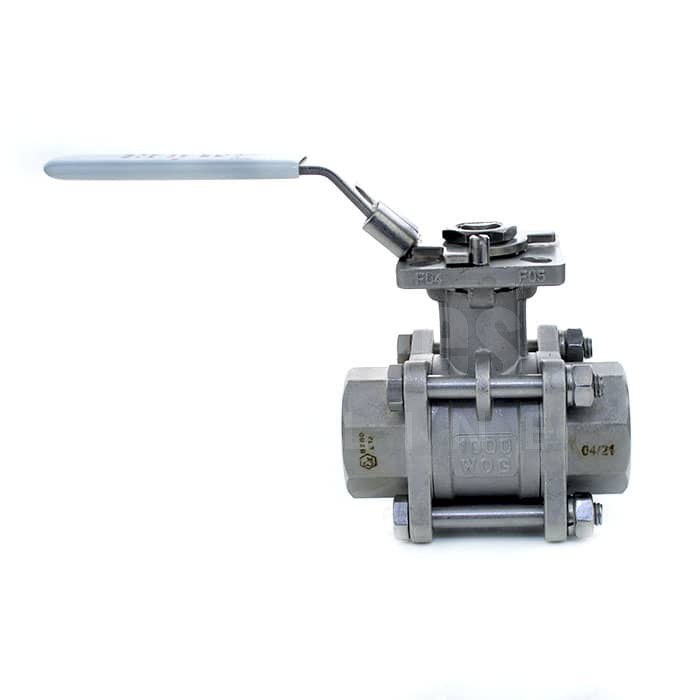

Economy Direct Mount 3 Piece Ball Valve
SKU BV5593
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3-Piece Ball Valve
- Stainless Steel Body
- Lockable Lever, Full Bore
- RPTFE (15%) Seats, PTFE Seals
- Working Temperature -20°C to 200°C
- Maximum Working Pressure PN82
- Screwed BSPT End Connections
- Sizes 1/4" to 4"
- ATEX Approved
Description
An economical 3 piece stainless steel full bore ball valve, that that’s ideal for actuation, both pneumatic and electric because of the ISO 5211 mounting platform cast into the valve body. Used for isolation of flowing media being suitable for industrial and chemical applications.
Coupled with the added benefits of a blow out stem and mounting pad the valve is supplied with a lockable lever handle. This valve offers reliable and trouble free operation, benefiting processes, both safely and consistently. PTFE seats allow temperatures from 20°C up to 200°C and maximum pressures of 82 Bar. End connections are BSPT.
Technical specification
- End Connection
- BSPT
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Maximum Working Pressure PN82
