VOLT
Economy Compact Electric Actuated Brass Ball Valve
SKU EE4350
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Compact Motorised Brass Ball Valve
- Sizes: 1/4" - 2"
- BSPP End Connections
- Easy Installation Pre-wired
- IP67 Protected
- Offers Economy and long life
- Multi-Voltage : 24 VDC or 110 or 230 VAC
- Modular Design
- Standard On/Off Operation
Description

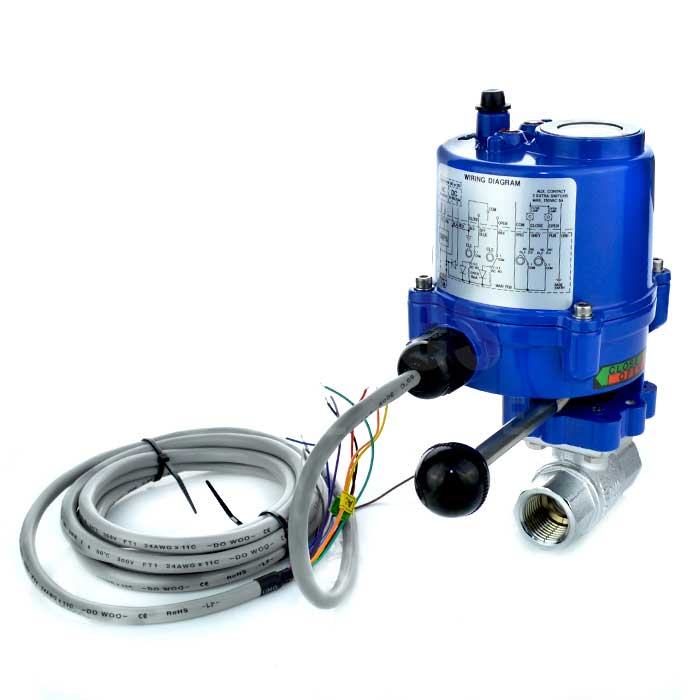

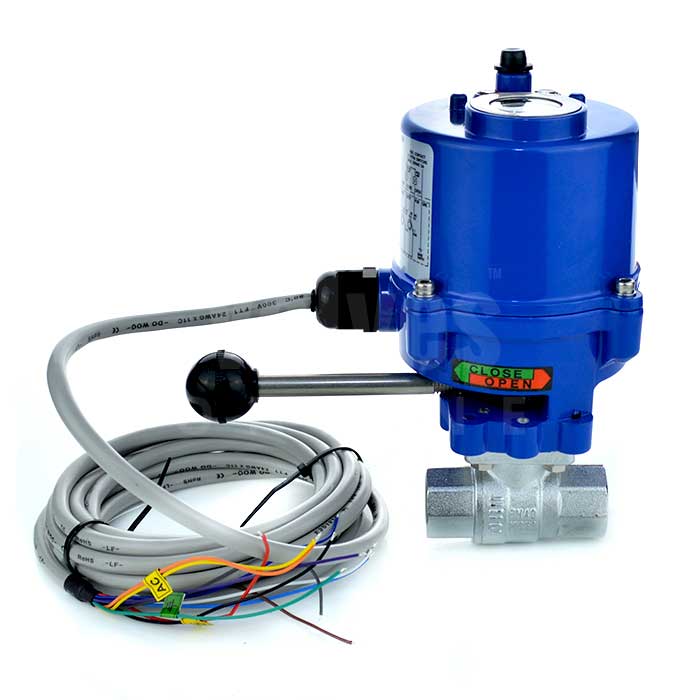

An economical combination of a brass ball valve fitted to our mini HQ3 electric actuator. Specifically designed for open and closed operations, lending tight shut off isolation up to 40 Bar, 1/4" to 2", 30 Bar Above.
The unit comprises of a compact and lightweight electric actuator that’s fitted directly to a 2-way screwed full bore brass ball valve that is suitable for use on air, water and oil.

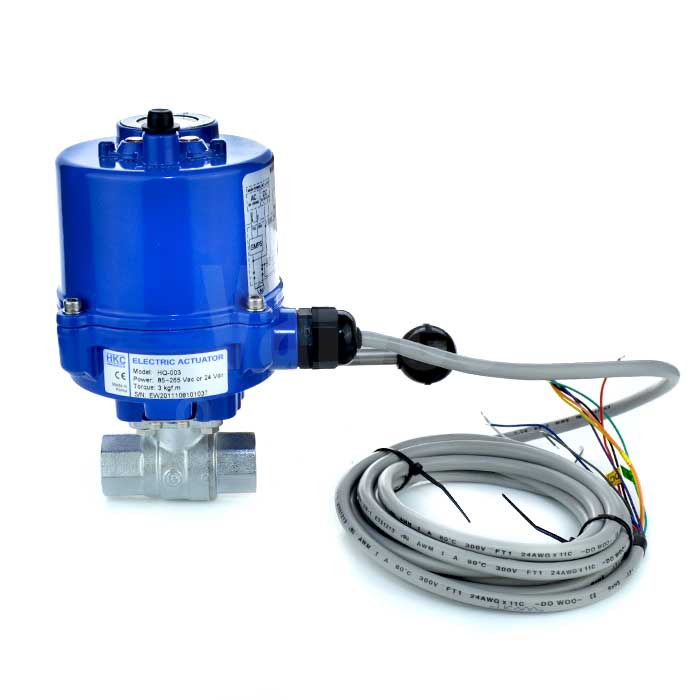

The HQ003 electric actuator is a multi-voltage unit supporting 24VDC, 110VAC & 230VAC and is specially designed for easy installation having prewired flying leads. Weatherproofed to IP67 and is supplied with, manual override and limit switches, LED open and closed indication and anti-condensation heaters. In addition, this High-Quality unit provides optical position indication, with all electrical components and alloy gearing ensuring reliability and extended life span.
Economy Compact Electric Actuated Brass Ball Valve Datasheet
Technical specification
- End Connection
- BSPP
- Body Material
- Brass
- Seat Material
- PTFE (Teflon)
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Full Bore, Female x Female
- Actuator
- HQ003 Electric Actuator
- Actuator Voltages
- 24VDC, 110VAC, 230VAC
