Images are illustrative and may not show every size or variation.
VOLT

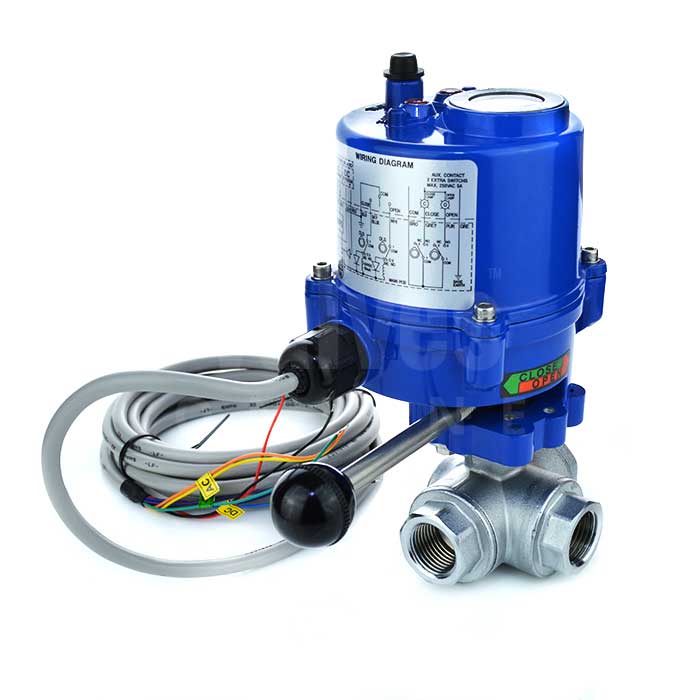

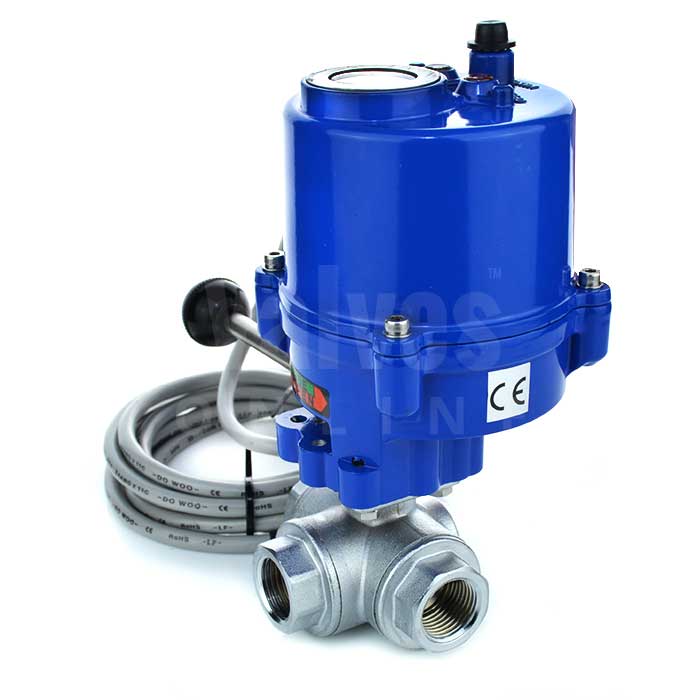

Economy Compact Electric Actuated 3 Way Brass Ball Valve
SKU EE4351
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Compact Motorised 3 Way Ball Valve
- Sizes: 1/4" - 2"
- BSPP End Connections
- Brass Ball Valve Body
- L or T Port
- Easy Installation
- IP67 Protected
- Offers Economy and long life
- Multi-Voltage : 24VDC or 110 or 230VAC
- Modular Design
Description
This ecnonomical combination of a 3 way brass ball valve fittied to our mini compact HQ3 electric actuator, designed for diverting operations, lending tight shut off.
The unit comprises of a compact and lightweight electric actuator that’s fitted directly to a 3 way screwed, reduced bore brass ball valve with options of L or T Configuration.
The end connections are BSP and seats are PTFE. The valve is suitable for use on air, water and oil.

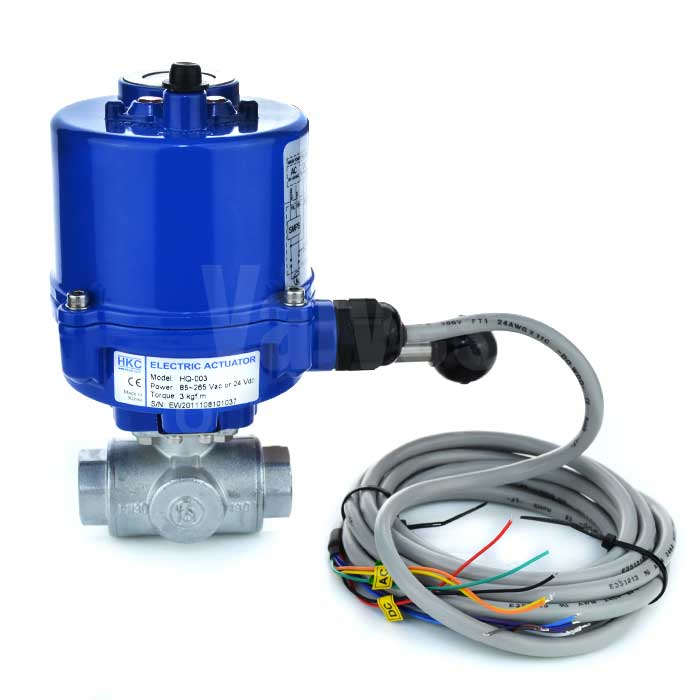

The HQ003 electric actuator is specially designed for easy installation having pre wired flying leads. Weatherproofed to IP67 and features a manual override, limit switches, LED open and closed indication and anti condensation heaters.
Economy Compact Electric Actuated 3 Way Brass Ball Valve Datasheet
Technical specification
- End Connection
- BSPP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32)
- Design
- 3 Way
- Temperature Range
- - 20°C to + 120°C
- Actuator
- HQ003 Electric Actuator
- Actuator Voltages
- 24VDC, 110VAC, 230VAC
