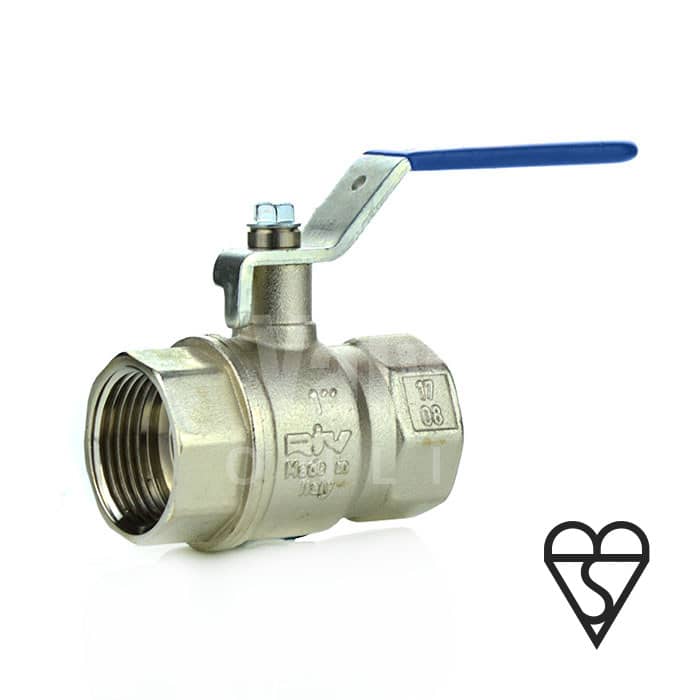

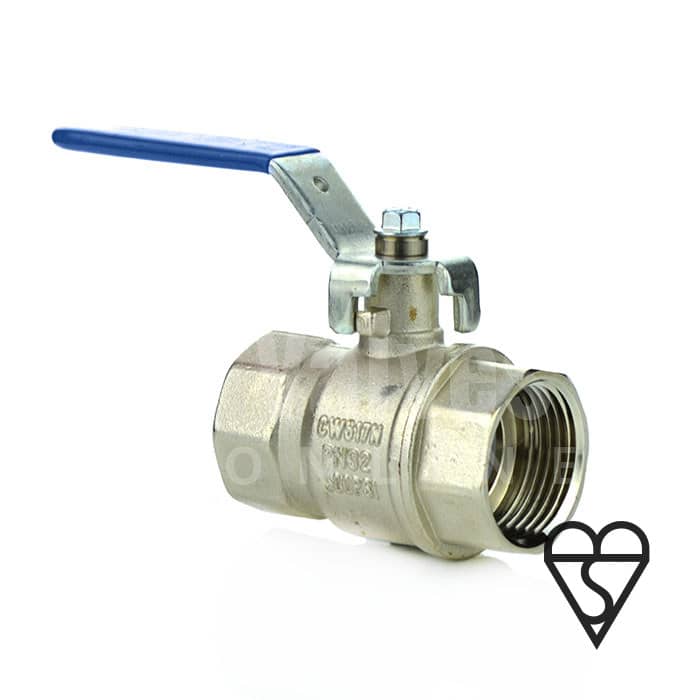

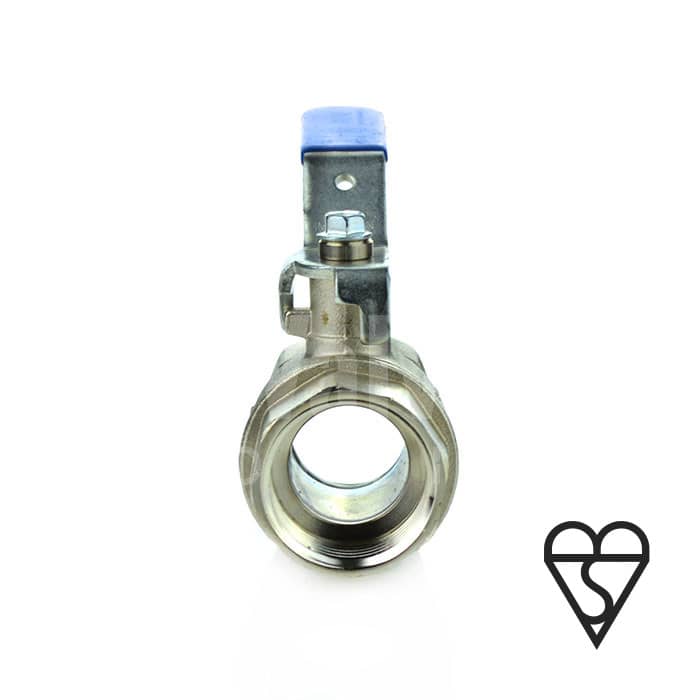

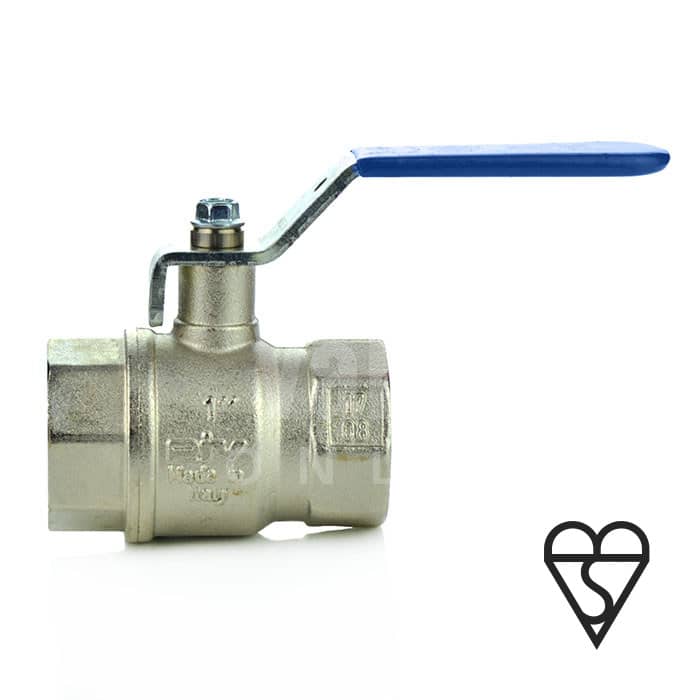

Economy Brass Ball Valve WRAS & BSI Gas Approved HTB - Blue Lever
SKU BV5045
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- WRAS & Gas Approved Brass Ball Valve
- Brass Nickel-plated HT body
- Blue PVC Coated steel lever
- Full Bore, PTFE seals
- Screwed BSPP
- Sizes 1/4" to 4"
- Temperature range for gas: -20°C to 70°C
- Temperature range for liquids: -20°C to 110°C
- Pressure rating: PN40 (1/4" to 1/2")
- PN32 (3/4" and 1")
Description
A blue lever manual brass ball valve, full bore, Screwed BSPP. BSI Gas and WRAS Approved Certified to EN331:1998+A1:2010 for Gas Installations for Buildings (CPR) is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air.
Free Customised Lever Handle
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@Find My Valve.co.uk with your logo or company name and phone number.
Approval
This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- BSI Gas, WRAS, HVAC
- Lever
- Manual Blue Lever
- Temperature Range
- Gas: -20°C to 70°C, Liquids: -20°C to 110°C
- Pressure
- Up to: PN40 (1/4" to 1/2"), PN32 (3/4" and 1"), PN25 (1 1/4" to 2 1/2"), PN16 (3" and 4")
- Actuatable?
- No - Manual Only
