VOLT

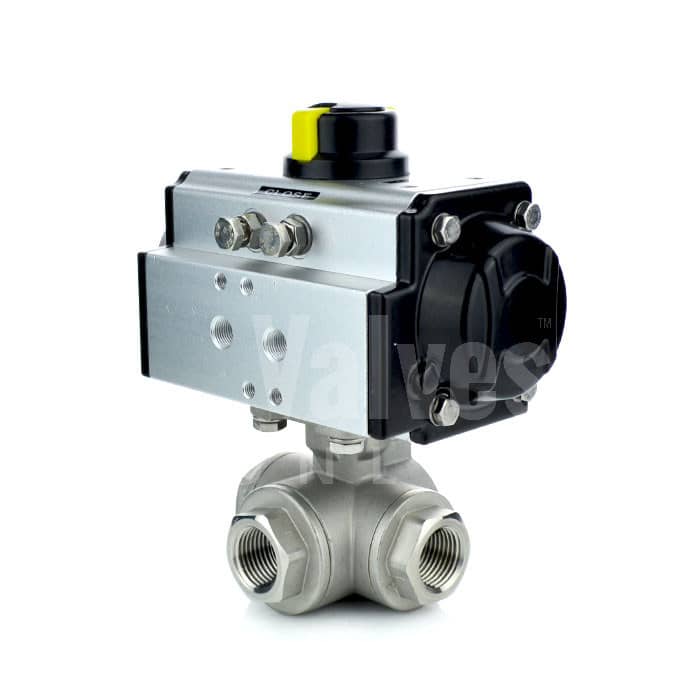

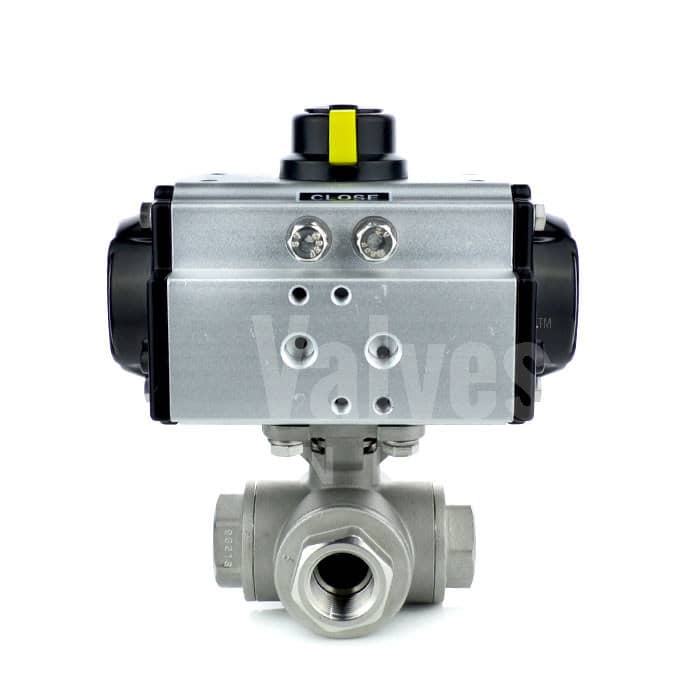

Economy 3 Way Pneumatic Actuated Stainless Steel Ball Valve
SKU PE4118
Sizes: 1/4" (DN8), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Air Operated 3 Way Ball Valve
- L or T Port Configuration
- Stainless Steel Body
- Screwed BSPT Reduced Bore
- Double Acting or Spring Return
- RPTFE Seats
- Temperature up to: 180°C
- Up to 69 Bar
- Sizes: 1/4” - 4"
Description
A well proven Pneumatically actuated 3 way ball valve that comprises of a powerful HP pneumatic actuator and a direct mount 3 way ball valve in stainless steel. The PE4118 is know for its reliability, strength and economy.
The actuator in Double acting and Spring close or open versions, offer both reliability and economy.
The ball valve is supplied in 316 stainless steel, it has a reduced bore and is screwed BSPT. The seats are RPTFE.
The pneumatic actuator has been sized with 30% safety factor included and has a Namur interface that accommodates a switchbox , solenoid or positioner.
Typical Applications for this unit include: automatic diverting of clean liquids and gases.
Economy 3 Way Pneumatic Actuated Stainless Steel Ball Valve Datasheet
Pneumatic Actuator Datasheet

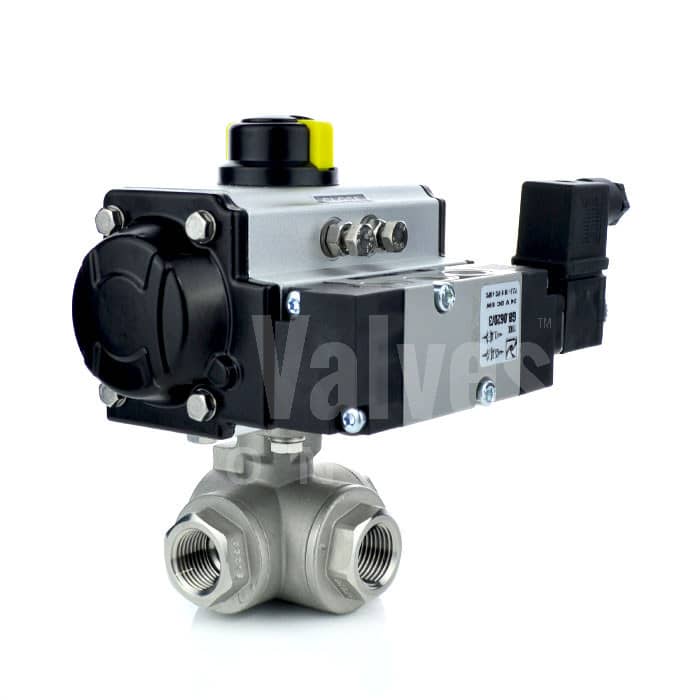

Economy Pilot Solenoid Datasheet

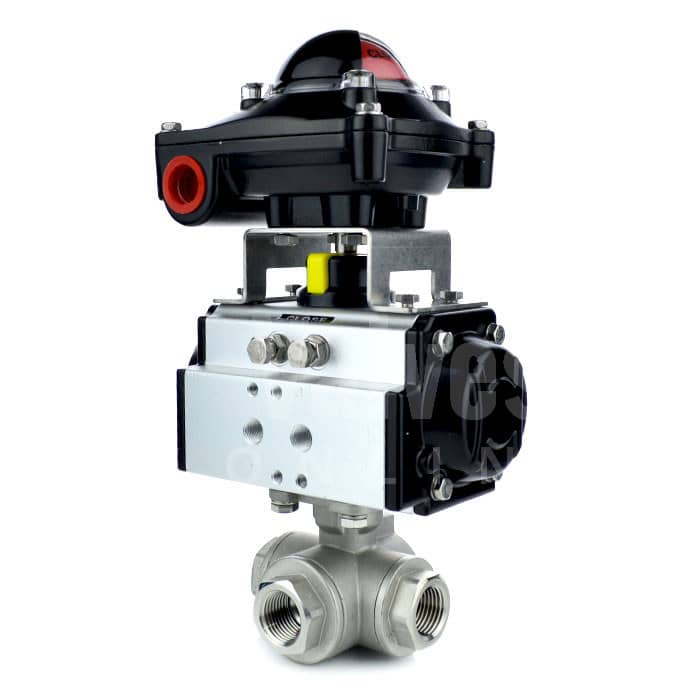

Switchbox Datasheet
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way
- Temperature Range
- Up to: 180°C
- Pressure
- Up to: 69 Bar
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
