VOLT

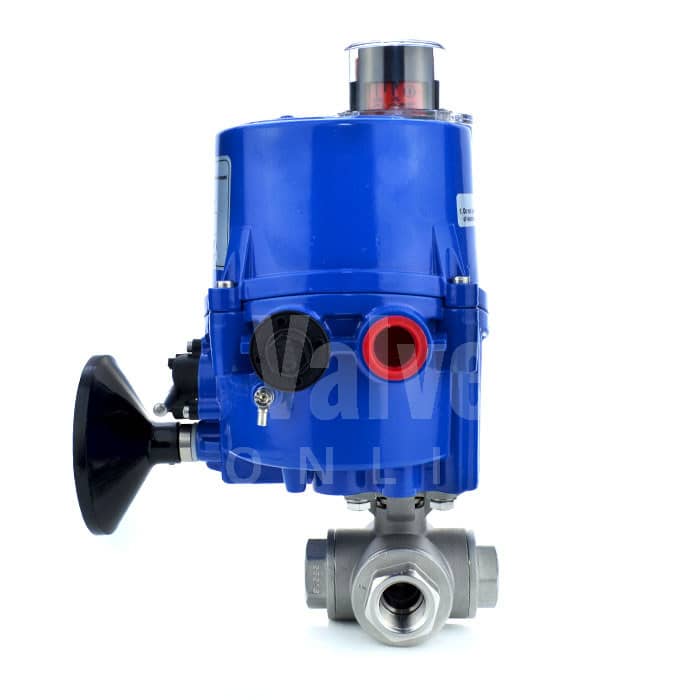

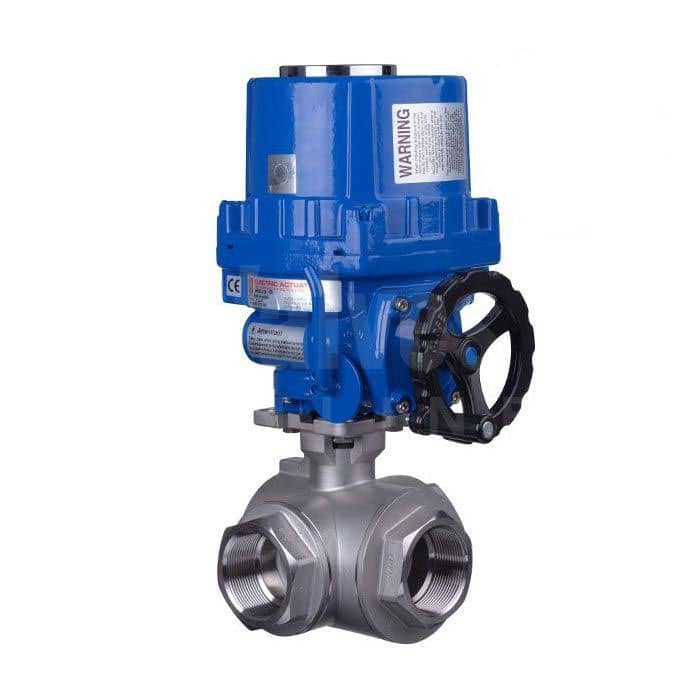

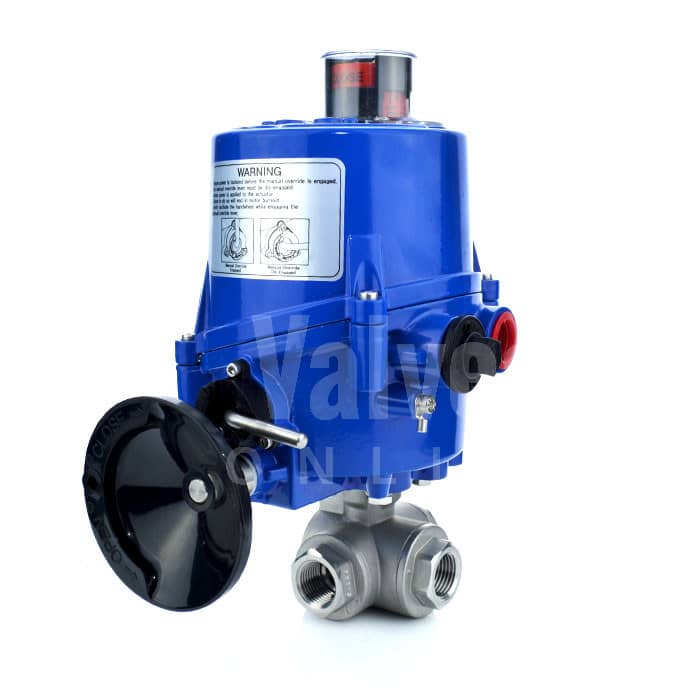

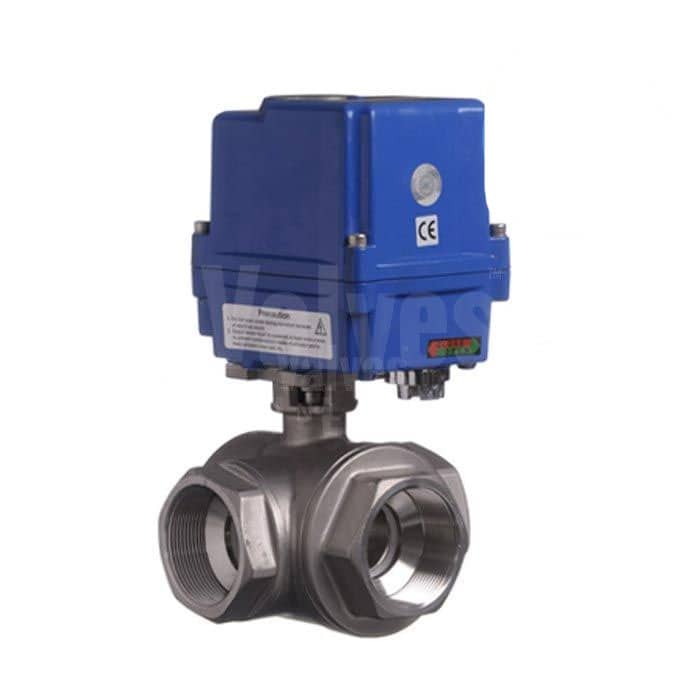

Economy 3 Way Electric Actuated Stainless Steel Ball Valve
SKU EE4118
Sizes: 1/4" (DN8), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Motorised 3 Way Ball Valve
- L or T Port Configuration
- Stainless Steel
- Screwed BSPT Reduced Bore Ball Valve
- Powerful Electric Actuators
- RPTFE Seats
- 180°C and up to 69 Bar
- Sizes: 1/4” - 4"
Description
An economically designed motorised ball valve comprising of a 3 way stainless steel ball valve and a powerful electric actuator.
Known for its reliability, strength and long life the EE4118 is coupled to a 3 way stainless steel ball valve, having BSPT threaded end connections, reduced bore ball and seats in RPTFE.
The valves are available in both L and T port configuration that meets all your diverting requirements. Each valve is sized and the actuator selected to match the torque needed to drive open and close each size of valve.
A range of voltages are offered to suit your power requirements and each unit has as standard an optical position indicator, position switches, manual override and anti condensation heaters.
Typical Applications for this unit includes automatic diverting of clean liquids and gases.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way
- Temperature Range
- Up to: 180°C
- Pressure
- Up to: 69 Bar
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
