Images are illustrative and may not show every size or variation.
VOLT

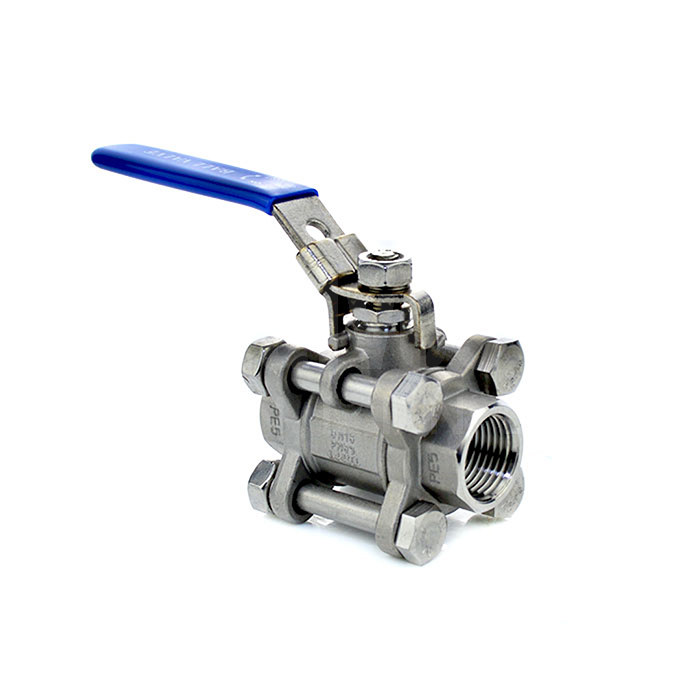

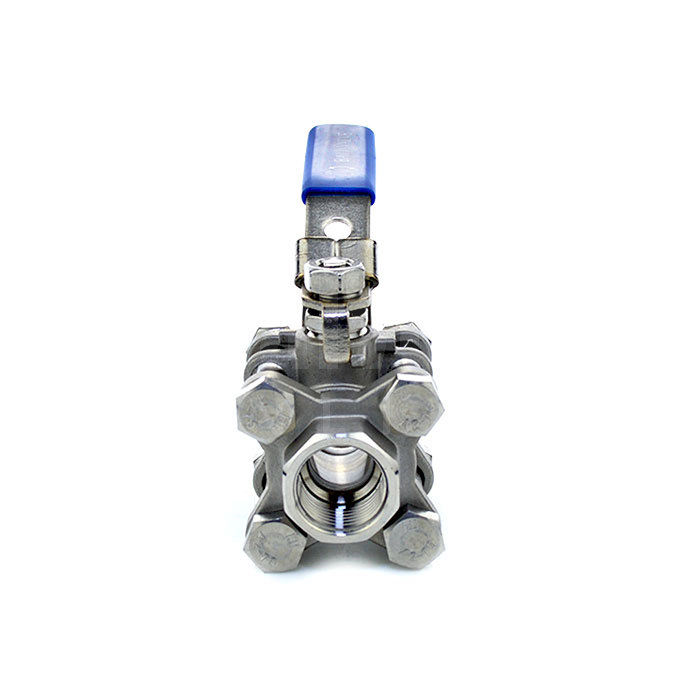

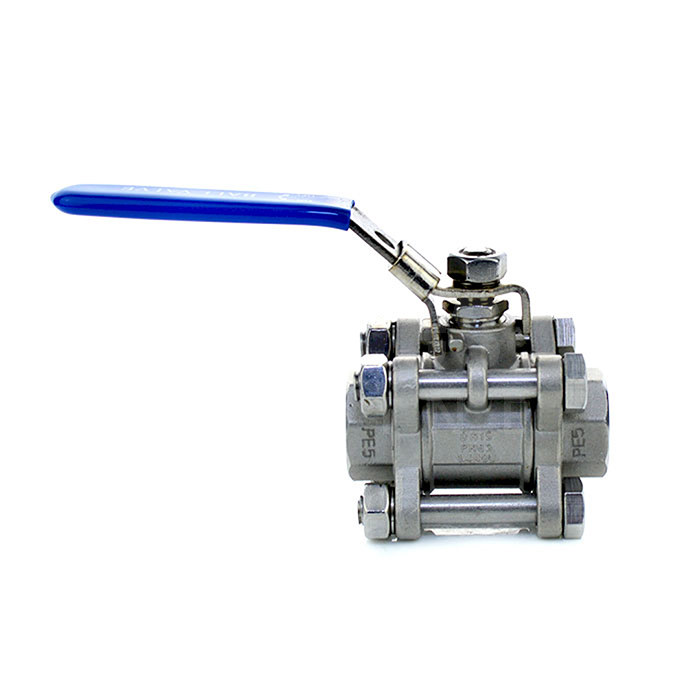

Economy 3 Piece Stainless Steel Ball Valve
SKU BV5590
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy 3 Piece Ball Valve
- Lockable Lever
- Sizes ¼” to 4"
- Blow Out Proof Stem
- Investment Casting
- Full Bore
- Working Temperature 20°C to 200°C
- Maximum Working Pressure 63 Bar
Description
An economical 3 piece stainless steel full bore ball valve, that’s ideal for manual isolation of flowing media being suitable for industrial and chemical applications.
Coupled with the added benefits of a blowout proof stem and lockable lever handle. This valve offers reliable and trouble free operation, benefiting processes, both safely and consistently.
PTFE seats allow temperatures from 20°C up to 200°C and maximum pressures of 63 Bar. End connections are BSPP.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
