Images are illustrative and may not show every size or variation.
VOLT
Economy 3 Piece Sanitary Ball Valve Weld End - Direct Mount
SKU BV5518
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Sanitary Ball Valve
- Weld Ends
- CF3M 316 Stainless Steel Body
- TFM 1600 (FDA Approved) Seats & Seals
- ISO Direct Mount Pad
- Sizes: 1/2" to 4"
Description
A 3 piece sanitary ball valve with ISO 5211 mounting platform for automatic operation. Offered with TFM 1600 (FDA approved) Cavity filled ball seats and seals. ASTM A351 CF3M 316 Stainless steel construction, 316 trim. Ta Luft self adjusting stem sealing. Chemically polished external surface, mechanical polish 0.8um internal.
Suitable for sanitary applications including CIP.
Cavity filled seats are designed to eliminate the cavity around the ball, minimize trapped fluid in the valve body that can contaminate the process. TFM 1600 cavity filled seats and seals offer excellent performance in control of food products, pharmaceuticals and high velocity applications.

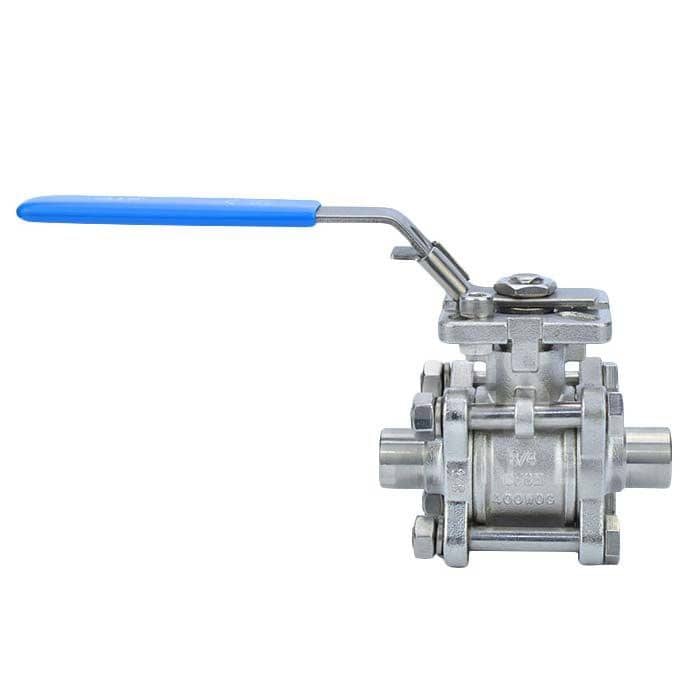

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel 316L
- Seal Material
- TFM 1600 (FDA Approved)
- Seat Material
- TFM 1600 (FDA Approved)
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- Hygienic
- Lever
- Manual Lockable Lever
- Pressure
- 400 psi/g Rated
- Actuatable?
- Yes - Features ISO Mounting Pad
