VOLT

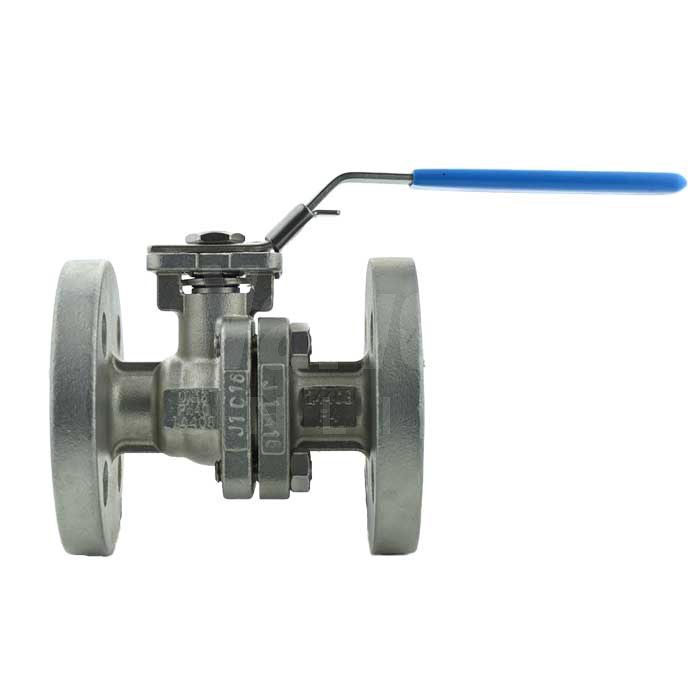

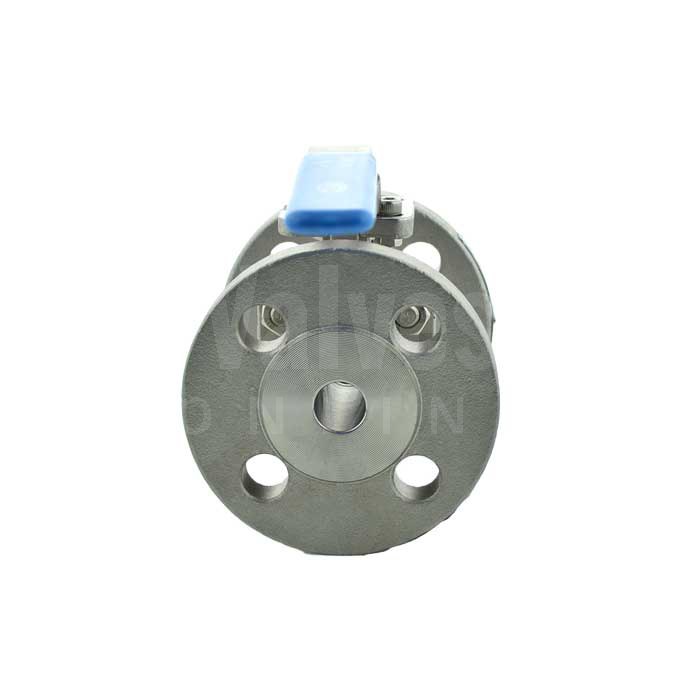

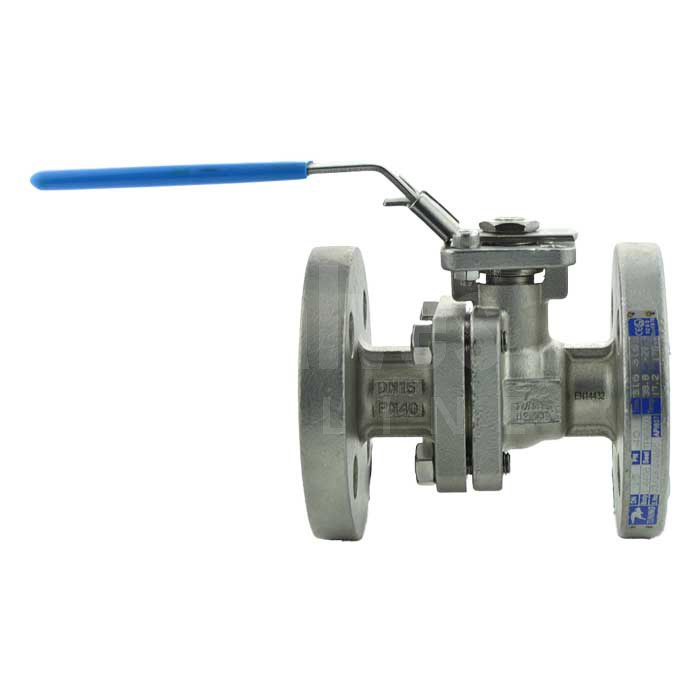

Direct Mount PN16 Flanged Stainless Steel Ball Valve
SKU BV5090
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- High Performance 2 Piece Ball Valve
- Stainless Steel Body
- Flanged PN16
- Sizes: 1/2" to 8"
- Full Bore, Direct Mount
- Fire Safe, Anti Static
- ATEX Approved
Description
Our Stainless Steel Ball Valve 2 Piece Flanged PN16 Direct Mount provides safe operation for both general and industrial chemical applications and hazardous environments. A full bore high performance ATEX approved fire safe anti static valve with Stainless Steel body, reinforced TFM seat, graphite seal and ISO mounting top for actuation.
Benefiting from a split body, two piece design the valve is ATEX approved, Fire Safe certified to API607 5th edition with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.
Investment cast with low torque.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seal Material
- Grafoil
- Seat Material
- TFM1600
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Design
- 2 Piece, Full Bore, Fire Safe
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- PN16 Rated
- Actuatable?
- Yes - features ISO Direct Mounting Pad
