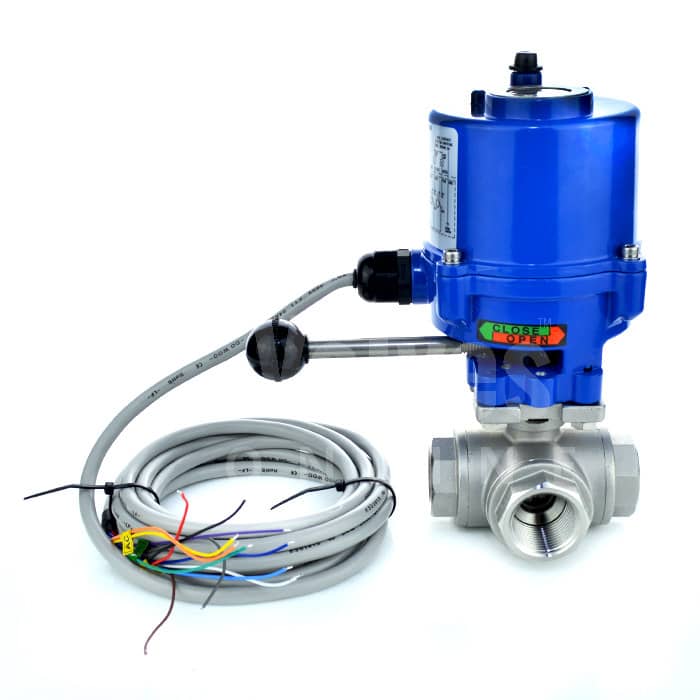

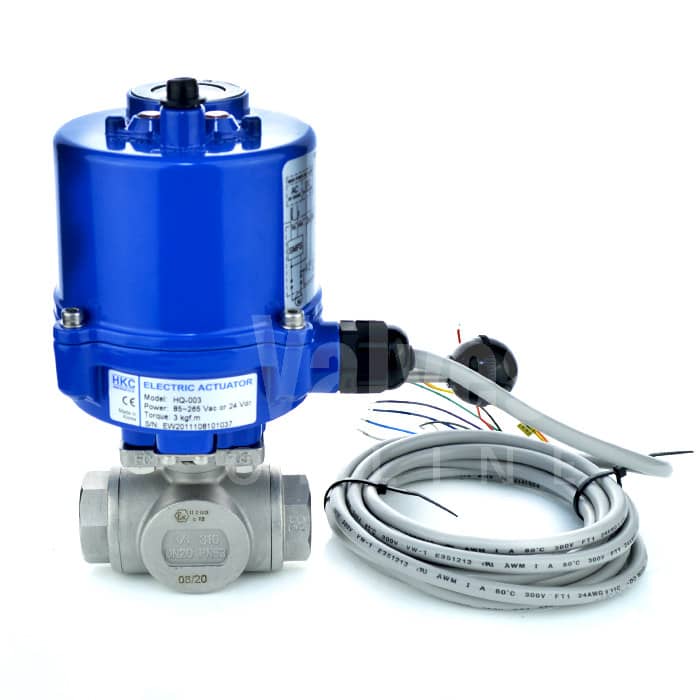

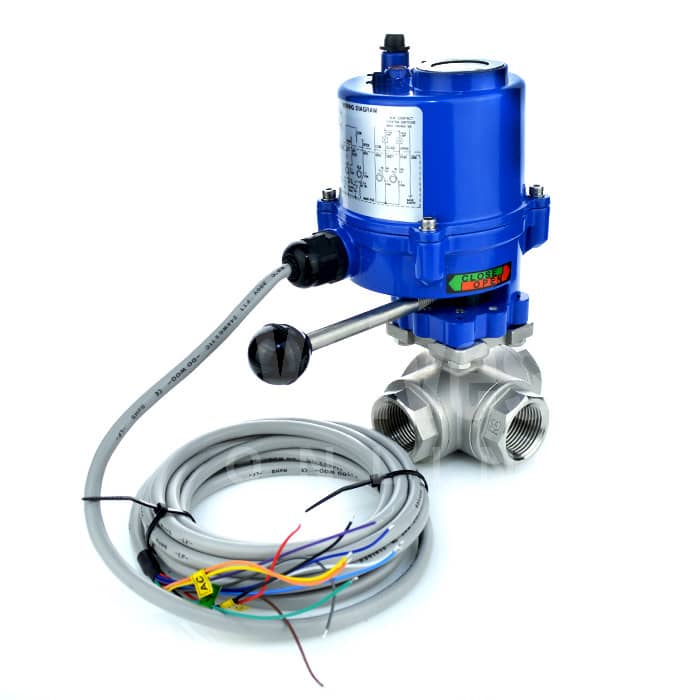

Compact Electric Actuated 3 Way Stainless steel Ball Valve

A low cost high quaity combination of our economy HQ003 Compact Electric Actuator fitted to an economy 3 way, stainless steel reduced bore ball valve in L or T port configurations. This combination offers both reliability and a low price. The HQ003 electric actuator is specially designed for easy installation having pre wired flying leads. Weatherproofed to IP67 and is supplied with, manual override and limit switches, LED open and closed indication and anti condensation heaters. In addition this High Quality unit provides optical position indication, with all electrical components and alloy gearing ensuring reliability and extended life span. The ball valve body is in stainless steel CF8M andthe ball 316 St. St. with RPTFE (15% filled) seats, PTFE seals and Viton O ring. The end connections are female and screwed BSPT Taper. The valve and actuator fit directly onto each other (valve has an ISO mounting pad) so no mounting kits are required, thus making the package more compact and cost effective.
