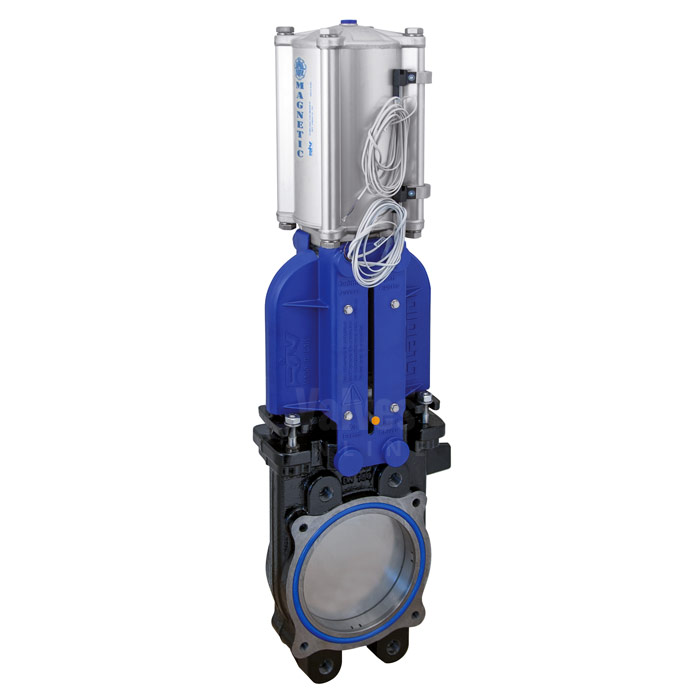

Cast Iron Knife Gate Valve PN10 Double Acting Pneumatic Actuator
SKU KG5021
Sizes: 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Double Acting Pneumatic Actuator
- Uni-directional
- To fit between PN10 or AGRI Standard Square Flanges
- Cast Iron body
- NBR seals
- Sizes: 4" up to 10"
Description
Our Cast Iron Knife Gate Valve PN10 Double Acting Pneumatic Actuator is suitable to fit between PN10 or AGRI Standard Square Flanges; designed for biogas, agricultural and slurry applications. A uni-directional, pneumatically actuated knife gate valve with Cast Iron body, NBR seats and a Stainless Steel fully enclosed blade for safety.
Supplied with Stainless Steel screws and tie-rod ends to prevent corrosion the valve also benefits from a robust protective coating, completely isolating the moving parts of the disc.
The design of the body and seat ensures non-clogging and allows the valve to be installed in any position.
Features an open / closed position indicator fitted as standard.
Complies with directive 97|23|CE (PED).
Cast Iron Knife Gate Valve PN10 Double Acting Pneumatic Actuator Datasheet
Technical specification
- Size
- 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
- Body Material
- Cast Iron
- Design
- NBR Seat, Uni-directional
- Industry / Approvals
- Agricultural, Mining / Slurry, Power Plant
- Flange Accommodation
- PN10, AGRI Standard Square
