Images are illustrative and may not show every size or variation.
VOLT

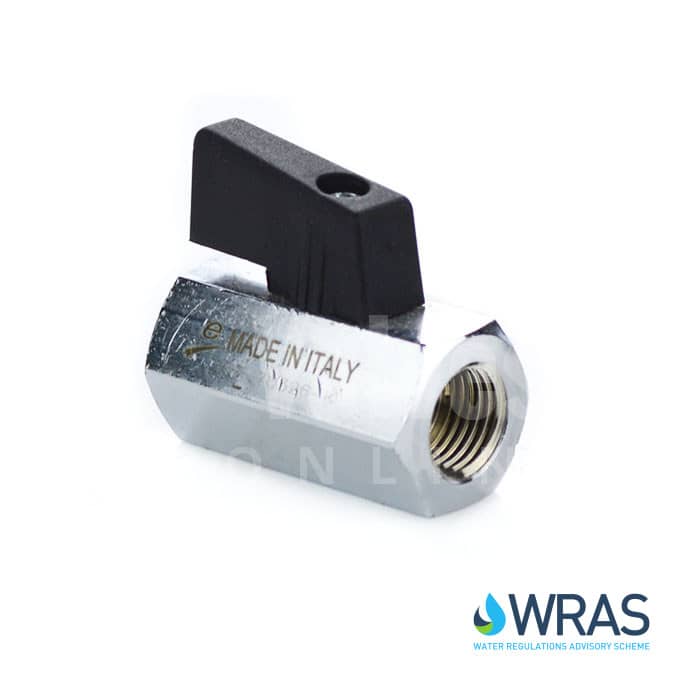

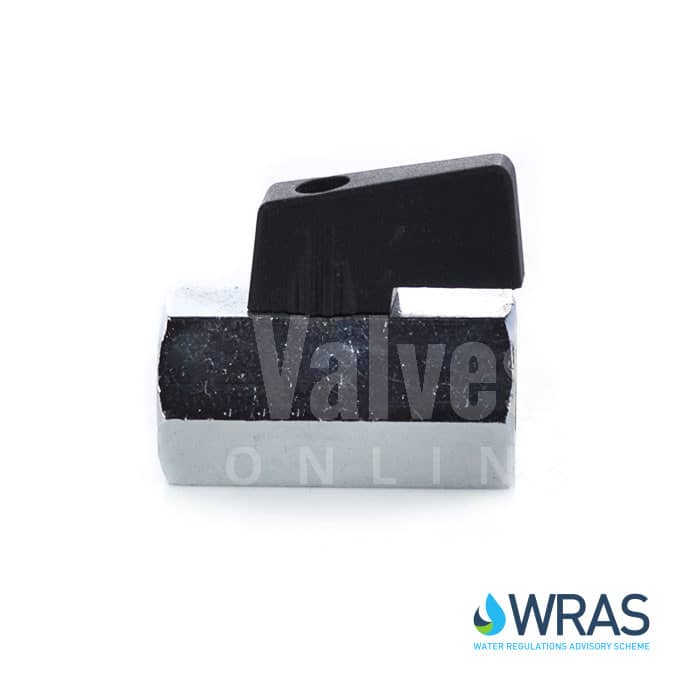

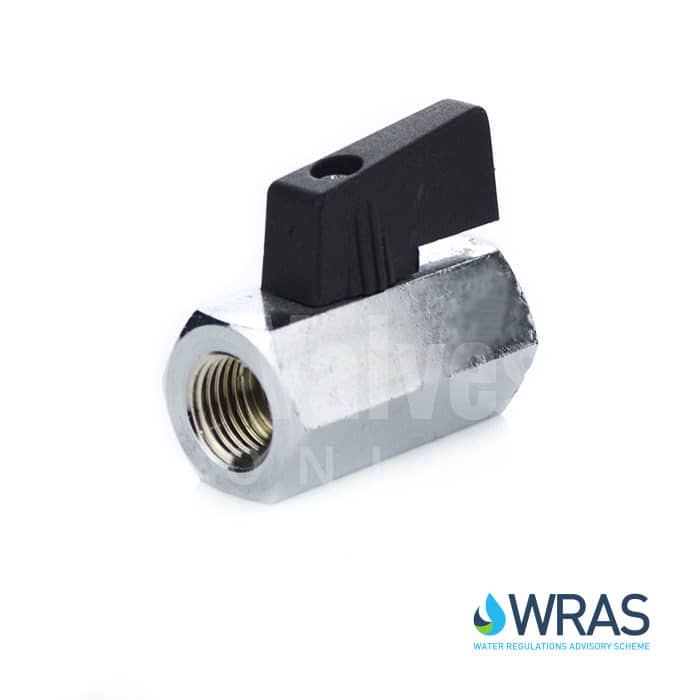

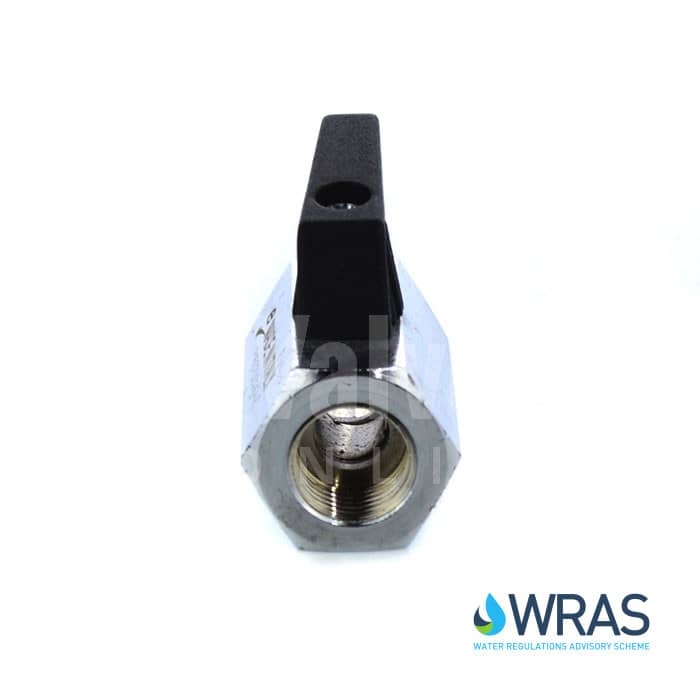

Brass Mini Ball Valve Female / Female
SKU BV5056
from£3.93ex VAT Not the right one? Identify your valve by photo
Sizes: 1/8" (DN6), 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- FxF Mini Ball Valve
- Brass Nickel Plated Body
- PTFE Seats
- Reduced Bore
- Sizes: 1/8" to 3/4"
- Temperature Range: -10°C to 90°C
- Pressure Rating: PN16
- WRAS Approved
Description
Our Brass Mini Ball Valve Female / Female is WRAS approved; suitable for pneumatic and liquid applications including isolation on pneumatic systems where a lever would be impossible to fit due to lack of space!
An aesthetically pleasing, polished chrome plated, reduced bore mini ball valve available with winged handle operator.
Brass Mini Ball Valves provide reliable on / off operation.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/8" (DN6), 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20)
- Design
- Reduced Bore, Female x Female
- Industry / Approvals
- WRAS, HVAC
- Lever
- Winged Handle
- Temperature Range
- -10°C to 90°C
- Pressure
- PN16 Rated
- Actuatable?
- No - Manual Only
