VOLT

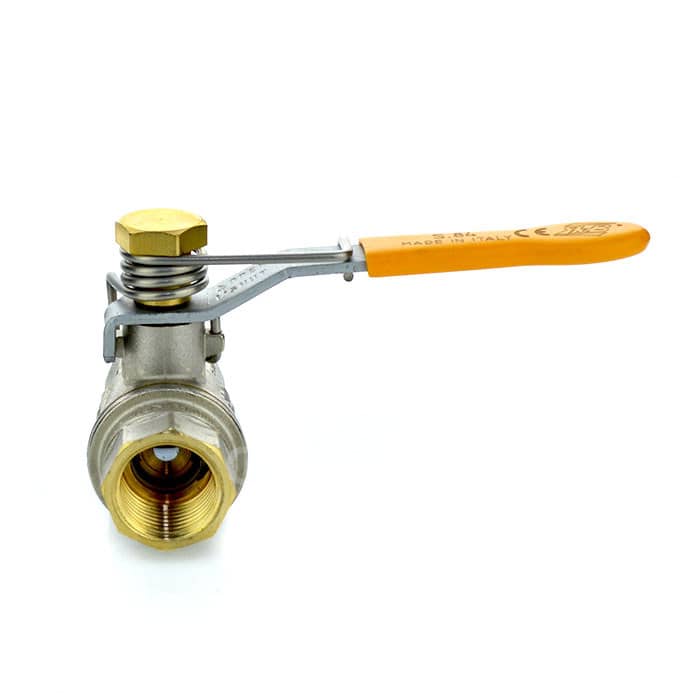

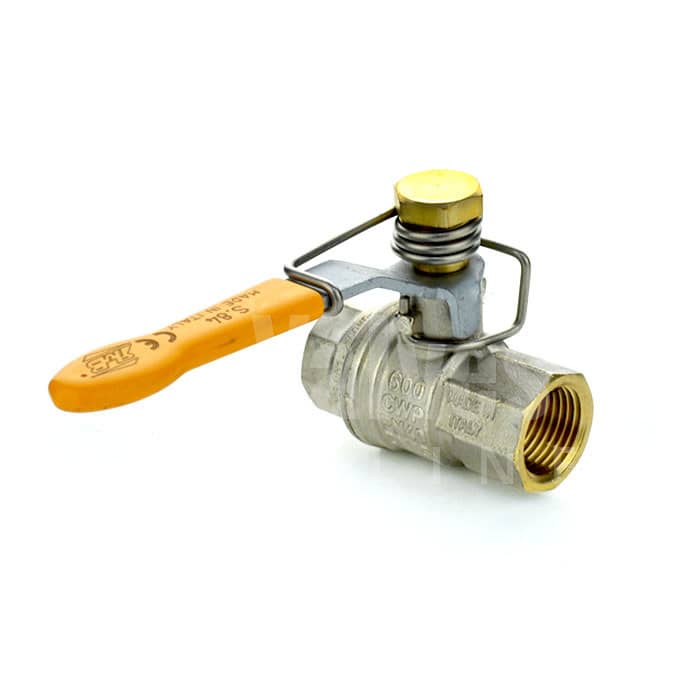

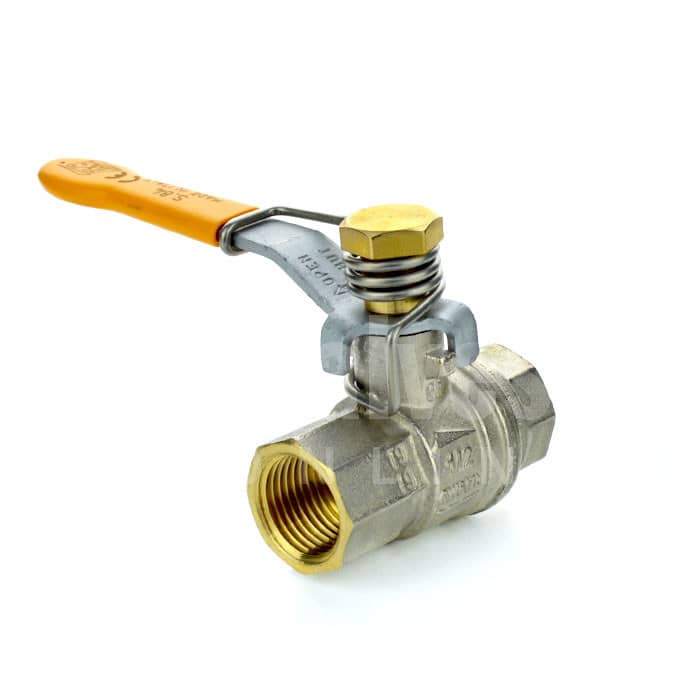

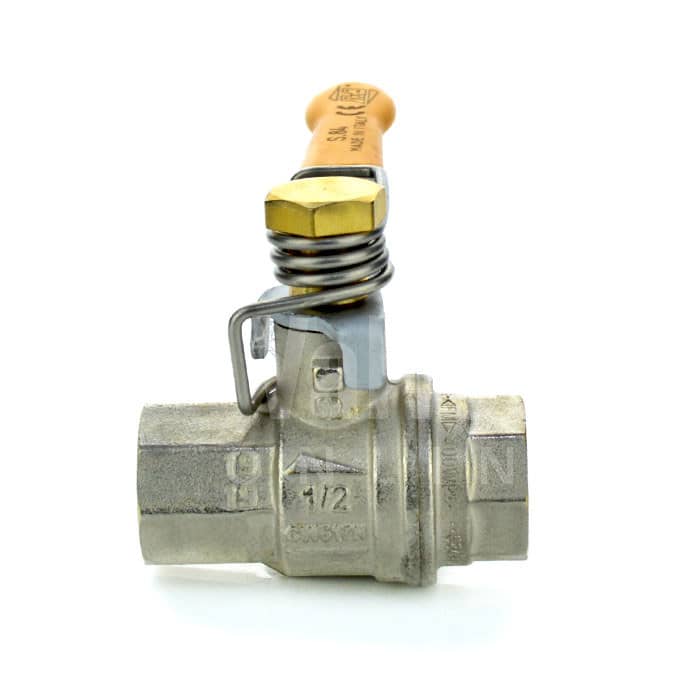

Brass Ball Valve with Spring Close Lever
SKU BV5050
from£21.76ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Nickel-plated brass body
- Full-bore
- Screwed BSPP end connections
- Spring close lever operation (Deadman’s handle)
- Sizes available: 1/2” to 2”
- Working temperature range: -40°C to +170°C
- Pressure rating: PN40, (PN5 for gas)
Description
Our Brass Ball Valve with Spring Close Lever (Deadmans Handle) is a non-maintainable full bore ball valve; providing safe operation for both general and industrial chemical applications. An economical, compact and reliable valve in Screwed BSPP with a Nickel plated body.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- HVAC
- Lever
- Spring Close Lever (Deadmans Handle)
- Temperature Range
- -10°C to 170°C
- Pressure
- PN40 Rated
- Actuatable?
- No - Manual Only
