Images are illustrative and may not show every size or variation.
VOLT

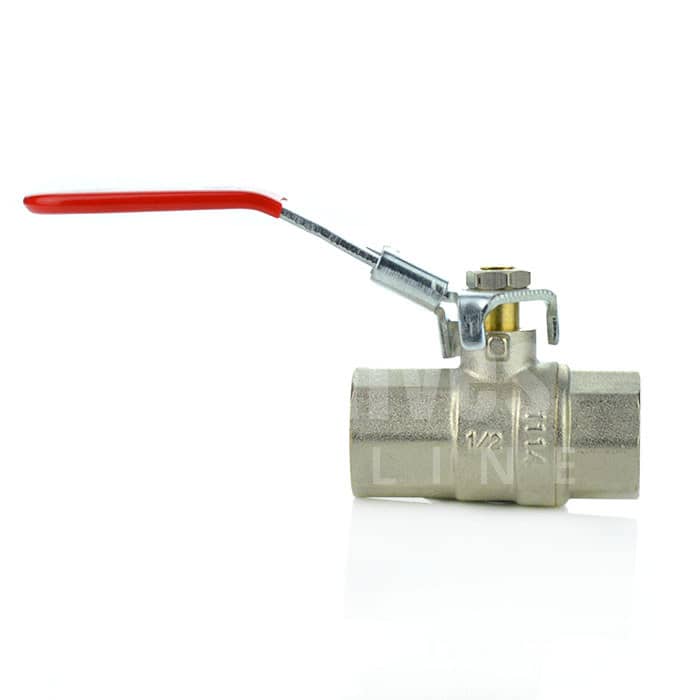

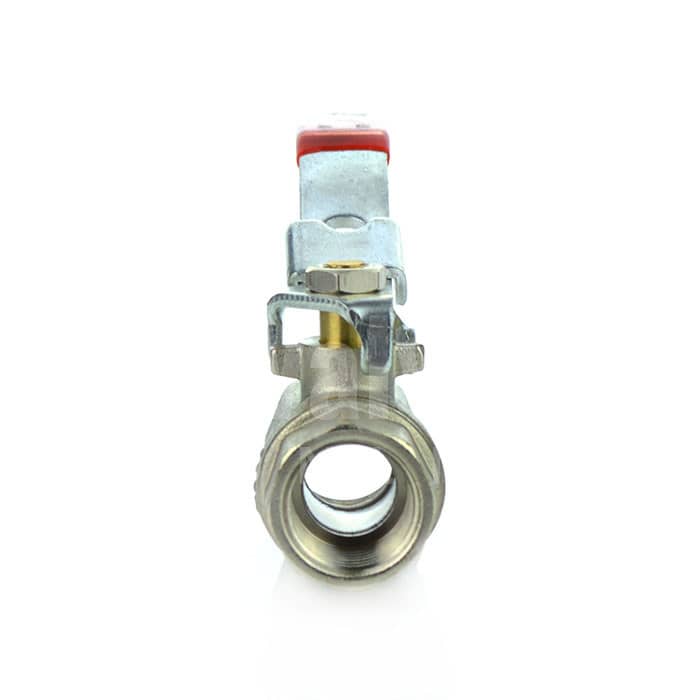

Brass Ball Valve with Red Locking Lever - NPT
SKU BV5036
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Brass Ball Valve
- Red Locking Lever
- Brass Nickel Plated Body
- Full Bore
- Screwed NPT
- Sizes: 1/2" to 4"
Description
This general purpose, standard pattern brass nickel plated ball valve with screwed NPT female end connections and red locking lever is suitable for general air and water duty, compressed air lines and isolation of liquids.
Available in sizes 1/2" to 4", this full bore ball valve features an anti blow out stem and PTFE seats.
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@Find My Valve.co.uk with your logo or company name and phone number.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- NPT
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process, HVAC
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 110°C
- Pressure
- Up to: PN40 (1/2" to 1"), PN25 (1 1/4" to 2"), PN16 (2 1/2" to 4")
- Actuatable?
- No - Manual Only
