Images are illustrative and may not show every size or variation.
VOLT

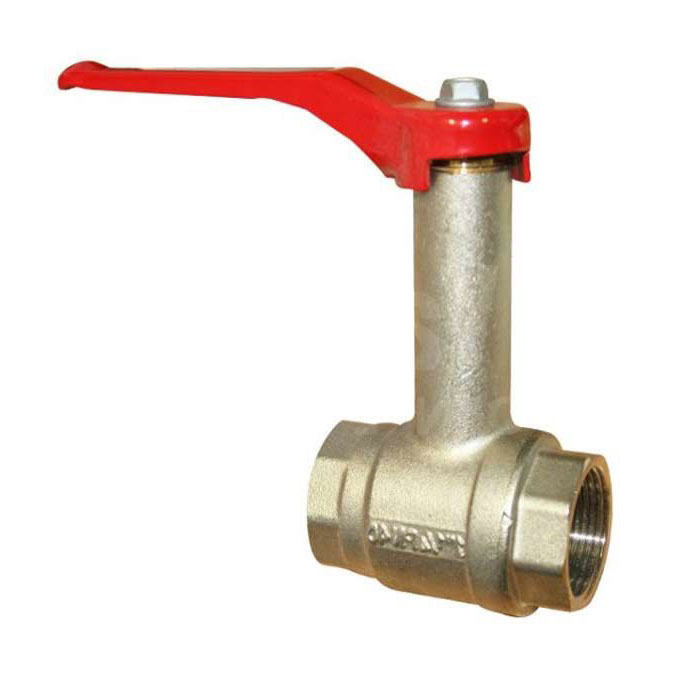

Brass Ball Valve with Fixed Extended Neck
SKU BV5042
from£21.00ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Brass Ball Valve
- Fixed Extended Neck
- Cast Brass Body & Neck
- Red Lever
- Screwed BSPP
- Sizes: 1/2" to 2"
Description
This brass ball valve with a fixed extension neck is suitable for use with thermal insulation.
Available in sizes 1/2" to 2", this extended neck cast brass ball valve is full bore and has screwed BSPP end connections.
Commonly used where insulation needs to be fitted around the valve (lagging) on both industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air pipe systems.
The neck is non-rotating when handle is turned.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process, HVAC
- Lever
- Red Steel Handle
- Temperature Range
- -20°C to 150°C
- Pressure
- PN40 Rated
- Main Features
- Screwed BSPP 1/2" to 2"
