Images are illustrative and may not show every size or variation.
VOLT

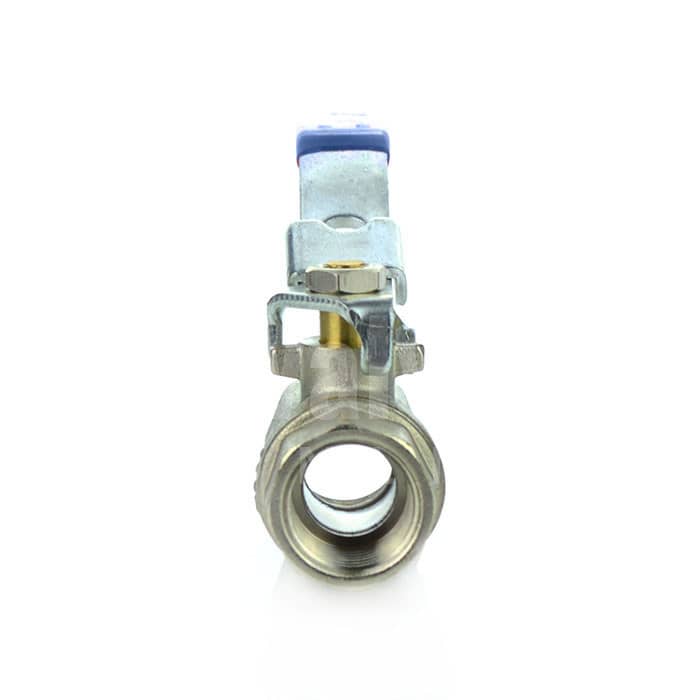

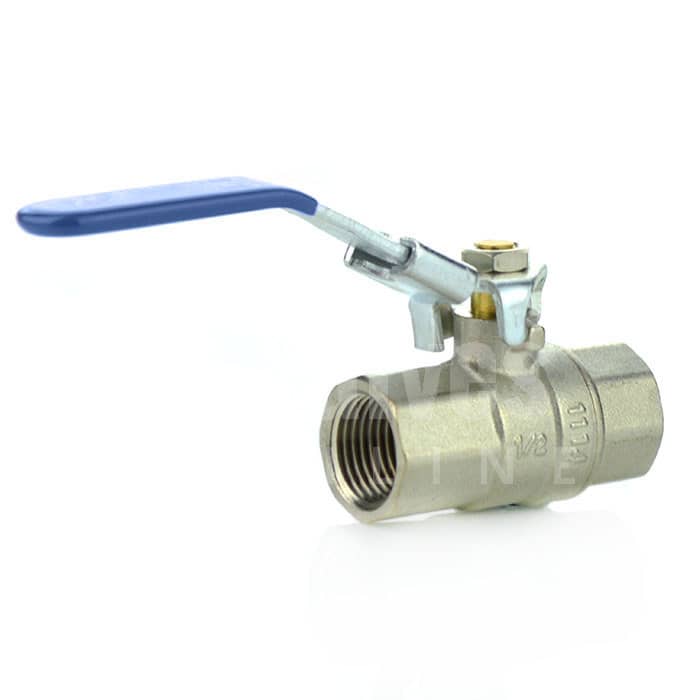

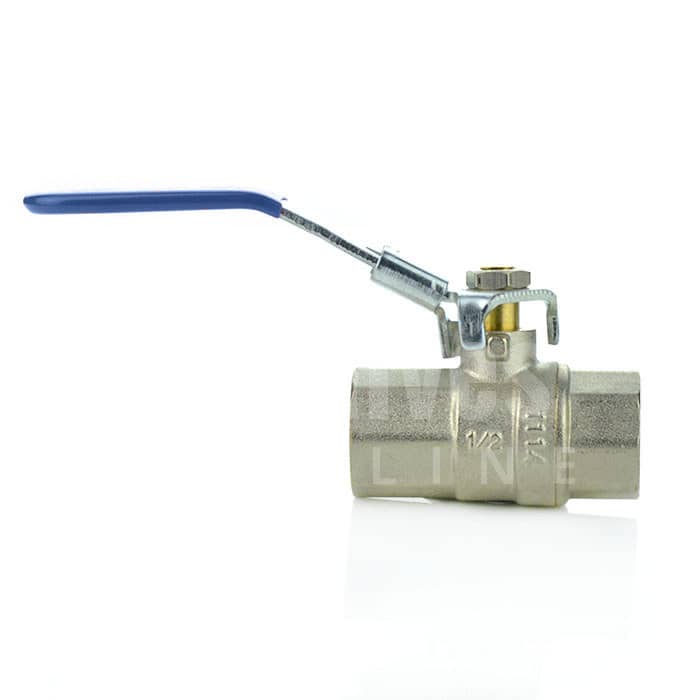

Brass Ball Valve with Blue Lockable Lever
SKU BV5037
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Brass Ball Valve
- Blue Lockable Lever
- Brass Nickel Plated Body
- Full Bore
- Sizes: 1/2" to 2"
- WRAS Approved
Description
This WRAS approved, general purpose, full bore brass nickel plated ball valve features a blue lockable lever, PTFE seats, an anti blow out stem and screwed BSPP female end connections.
Available in sizes: 1/2" to 2", this ball valve is suitable for general air and water duty, compressed air lines, isolation of liquids and potable water.
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@Find My Valve.co.uk with your logo or company name and phone number.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process, WRAS, HVAC
- Lever
- Manual Lockable Lever (Custom Logo on Handles Available)
- Temperature Range
- -40°C to 170°C
- Pressure
- PN40 Rated
- Actuatable?
- No - Manual Only
