Images are illustrative and may not show every size or variation.
VOLT

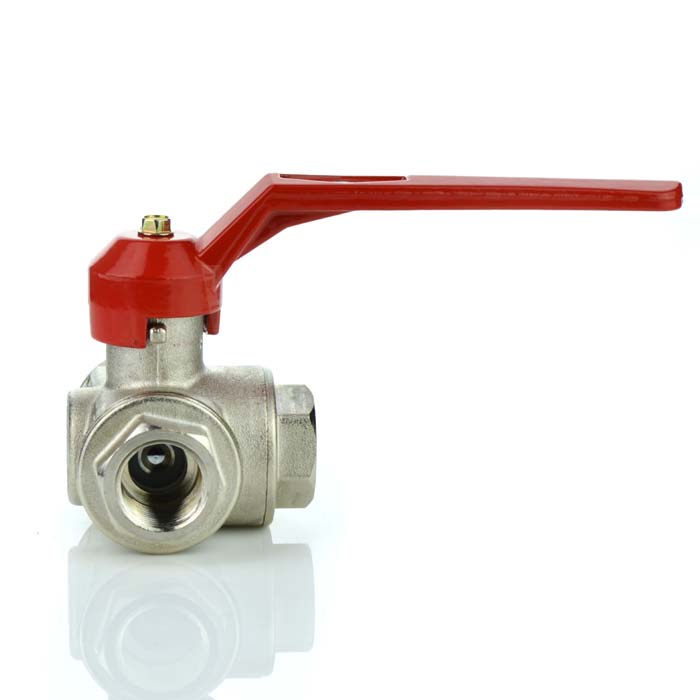

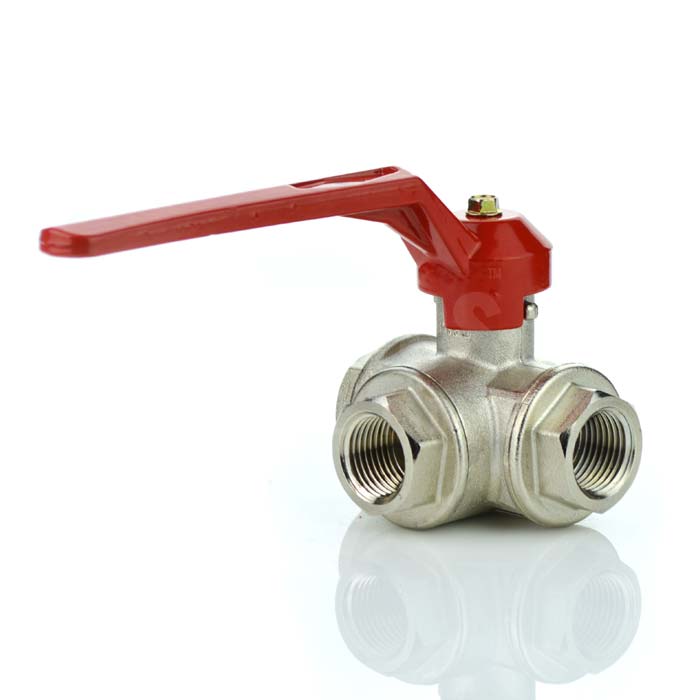

Brass Ball Valve Screwed 3 Way
SKU BV5072
from£41.83ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3 Way Brass Ball Valve
- Brass Nickel plated body
- PTFE seals
- Screwed BSPP end connections
- 3 way, L or T Port, reduced bore
- Sizes: 1/4" to 2"
- Pressure rating: 16 Bar to 50 Bar
- Temperature range: -10°C to 120°C (1/4" to 2")
Description
Our Brass Ball Valve Screwed 3 Way is suitable for a range of media and applications; mixing, diverting, compressed air, water and HVAC. A reduced bore, screwed 3 way manual valve featuring a floating ball, supported on four seats and operated via an aluminium handle with vinyl sleeve.
An economic manual 3 way ball valve.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seal Material
- PTFE
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Way, Reduced Bore
- Industry / Approvals
- HVAC
- Lever
- Manual Lever
- Temperature Range
- -10°C to 120°C (1/4" to 2")
- Pressure
- 16 Bar to 50 Bar
- Actuatable?
- No - Manual Only
