VOLT
Brass Ball Valve Economy Screwed BSPP
SKU BV5064
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- BSPP Brass Ball Valve
- Brass Nickel plated body
- PTFE seals
- Full Bore
- Screwed BSPP
- Sizes 1/4" to 4"
- Temperature range: 0°C to 90°C
- Free Handle Printing Available - See details below
Description
Our Economy Brass Ball Valve with Screwed BSPP connections is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air.

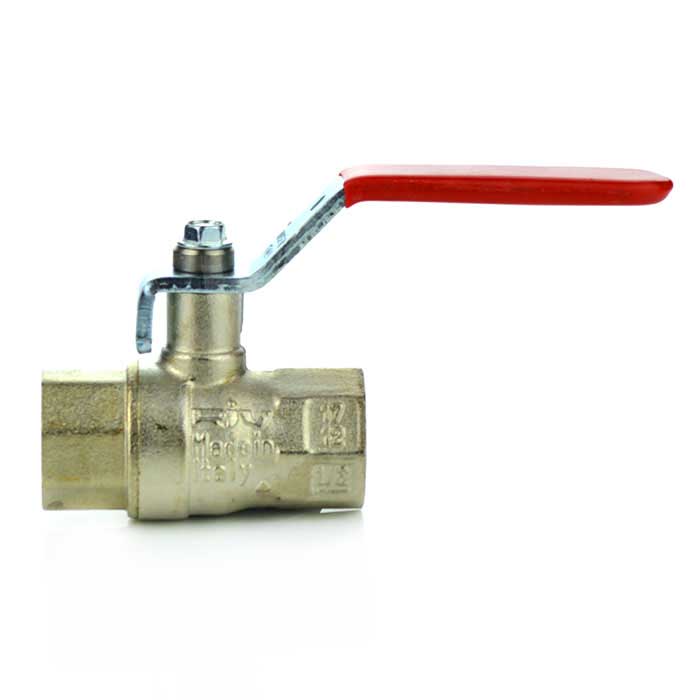

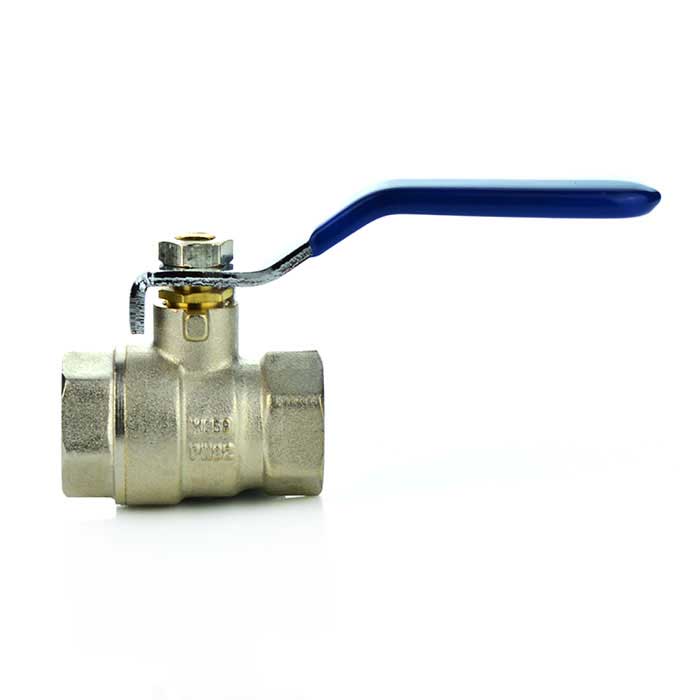

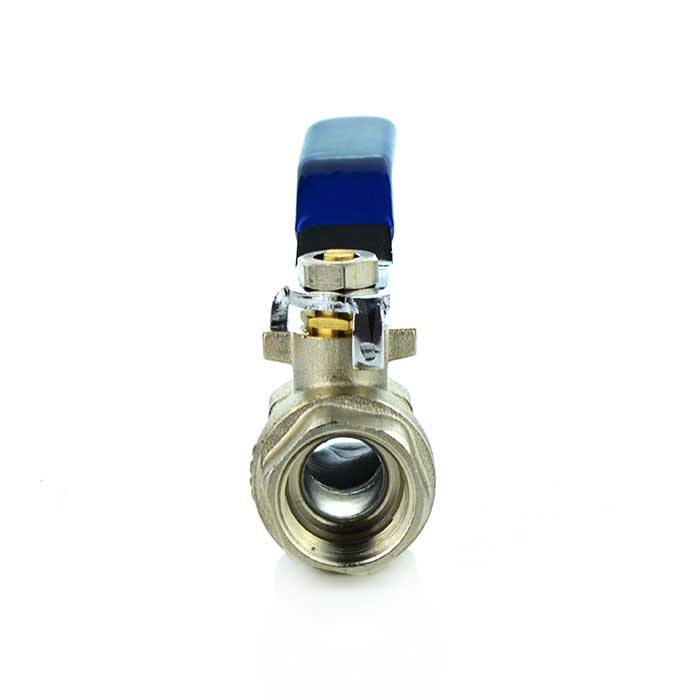

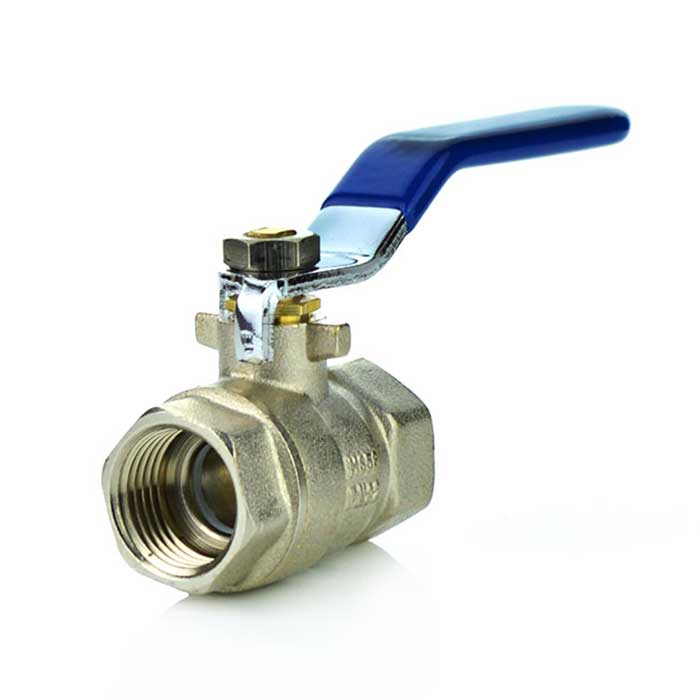

A full bore, manual valve with Red or Blue lever option in sizes: 1/4" to 4".
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: [email protected] with your logo or company name and phone number.
A maintenance free, economical ball valve which features an anti blow out stem as standard.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- HVAC
- Lever
- Manual Lever - Red or Blue (Handle Printing Available)
- Temperature Range
- 0°C to 90°C
- Pressure
- Up to: PN32 (1/4" to 1"), PN25 (1 1/4" to 2"), PN30 (2 1/2" to 4")
- Actuatable?
- No - Manual Only
