Images are illustrative and may not show every size or variation.
VOLT

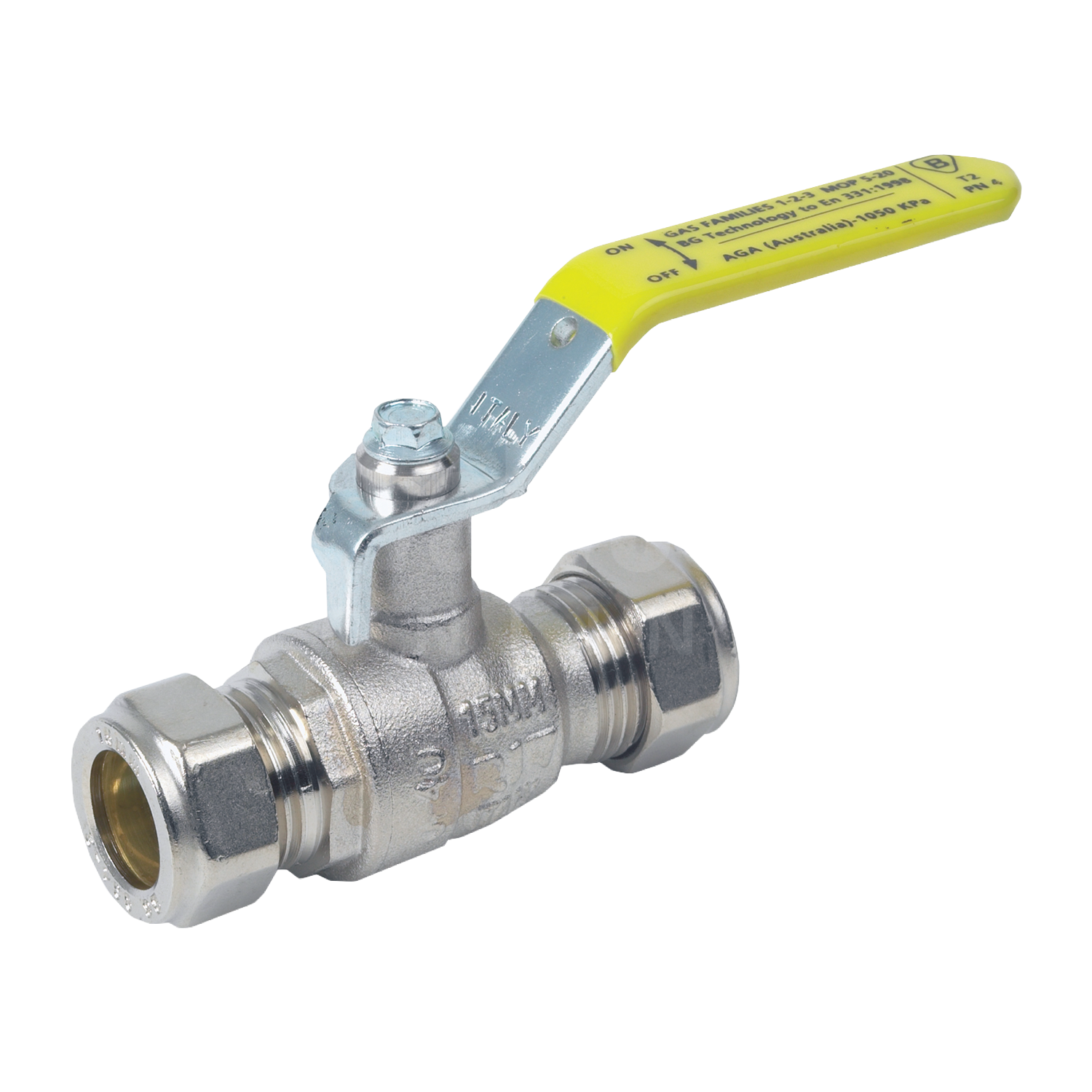

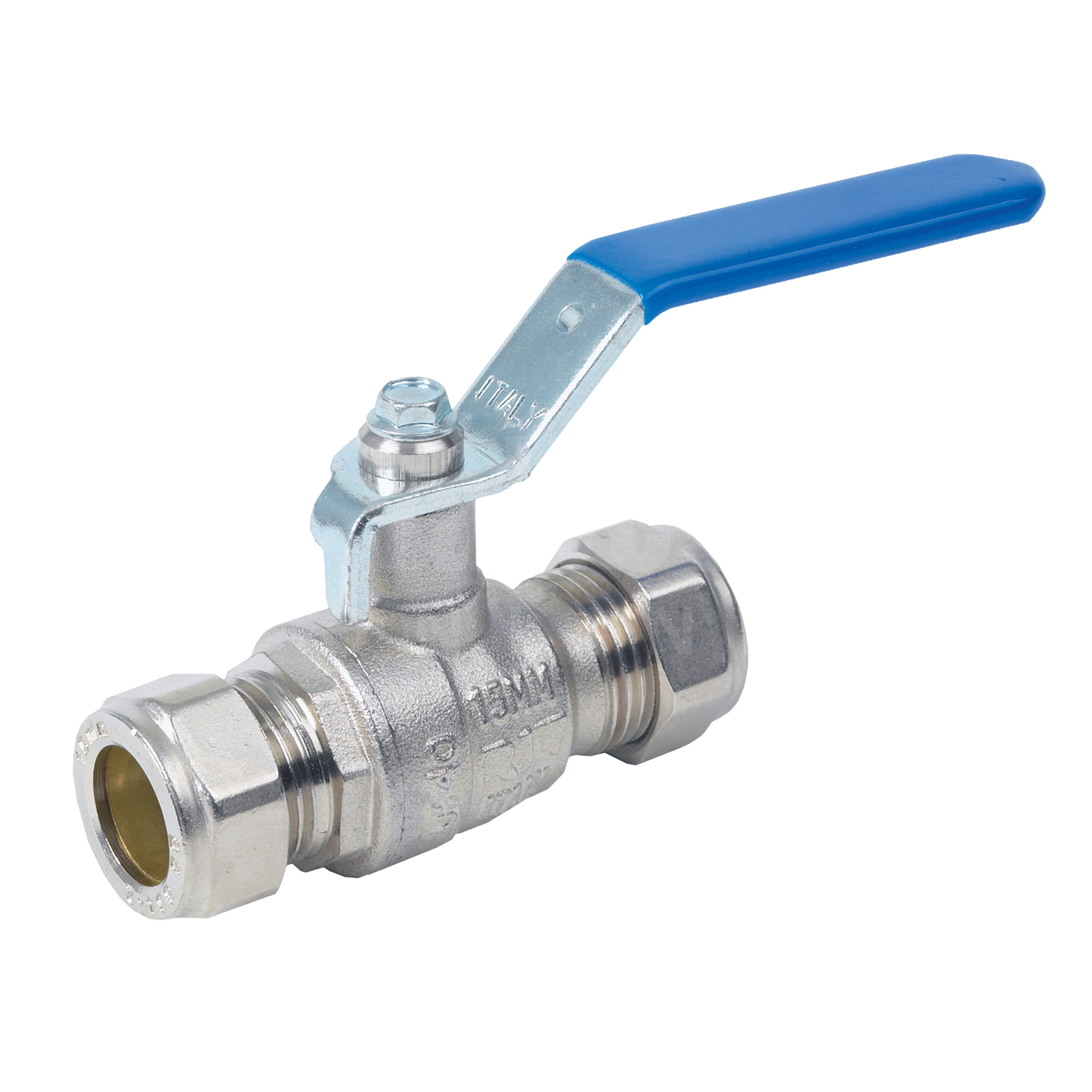

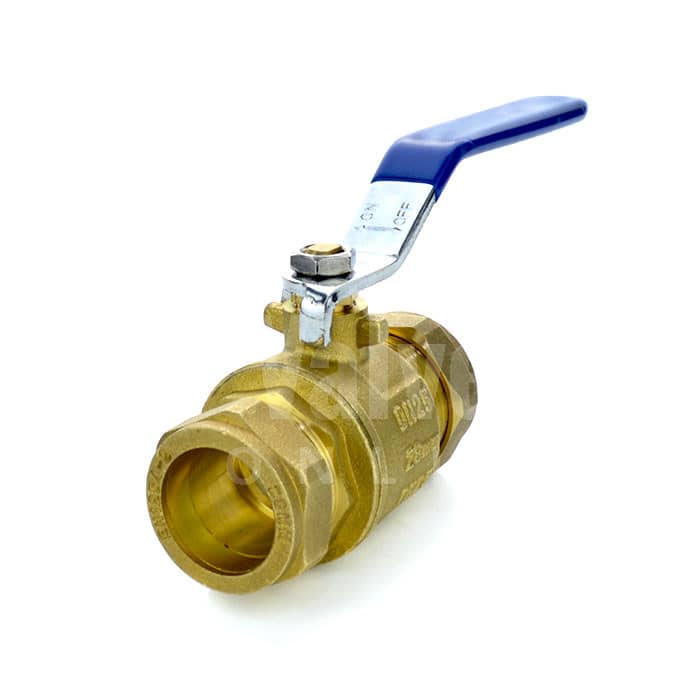

Brass Ball Valve Compression End with Lever
SKU BV5054
Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Compression Ball Valve
- Brass Nickel Plated Body
- PTFE Seals
- Compression End
- Sizes: 15mm to 54mm
- Temperature range: -10°C to 110°C
- Pressure rating: PN40 (15mm), PN32 (22mm and 28mm) and PN16 (35mm to 54mm)
- WRAS Approved (Red & Blue Handle Only)
- BSI Gas Approved (Yellow Handle Only)
- Free Handle Printing Available - See details below
Description
Our Economy Brass Ball Valve with Compression Ends is suitable for a range of media and applications; domestic water and heating systems. A full bore, robust manual valve with Copper to Copper compression ends and choice of Red, Yellow or Blue colour coded PVC insulated sleeve.
Get your company noticed! Order 10 or more (same size & colour handle) and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@Find My Valve.co.uk with your logo or company name and phone number.
The Brass Ball Valve Compression End with Lever also has the option of an extended stem (POA).
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- Compression End
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
- Design
- Full Bore
- Industry / Approvals
- HVAC
- Lever
- Manual Lever (Red, Blue or Yellow Handle - with Custom Printing available)
- Temperature Range
- -10°C to 110°C
- Pressure
- Up to: PN40 (15mm), PN32 (22mm & 28mm), PN16 (35mm to 54mm)
- Actuatable?
- No - Manual Only
