VOLT

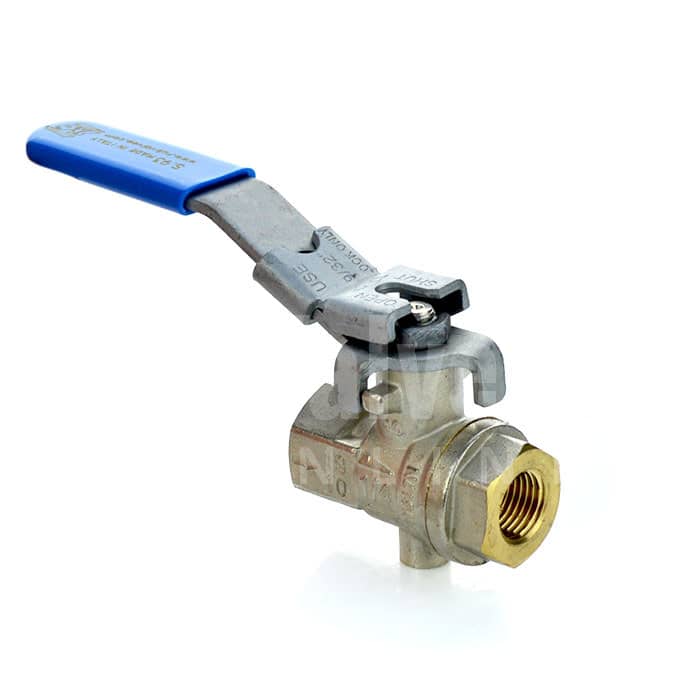

Brass Ball Valve BSPT with Locking Lever
SKU BV5052
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Nickel plated brass body
- PTFE seats
- Full-bore
- BSPT end connections
- Sizes available: 1/4” to 4”
- Manual operation
- Locking lever handle
- Working temperature range: -20°C to +110°C
- Pressure rated: PN40 for sizes 1/4” to 1”, PN25 for sizes 1 1/4” to 2”, and PN16 for sizes 2 1/2” to 4”
Description
Our Brass Ball Valve BSPT with Locking Lever is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil and air. A full bore, screwed manual valve with Locking Lever in sizes: 1/4" to 4".
Lockable ball valves are locked in the closed position only to ensure safe maintenance.
Please note: Padlocks are NOT supplied with locking lever handle valves.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- HVAC
- Lever
- Manual Lockable Lever
- Temperature Range
- -10°C to 110°C
- Pressure
- Up to: PN40 (1/4" to 1"), PN25 (1 1/4" to 2") and PN16 (2 1/2" to 4")
- Actuatable?
- No - Manual Only
