VOLT

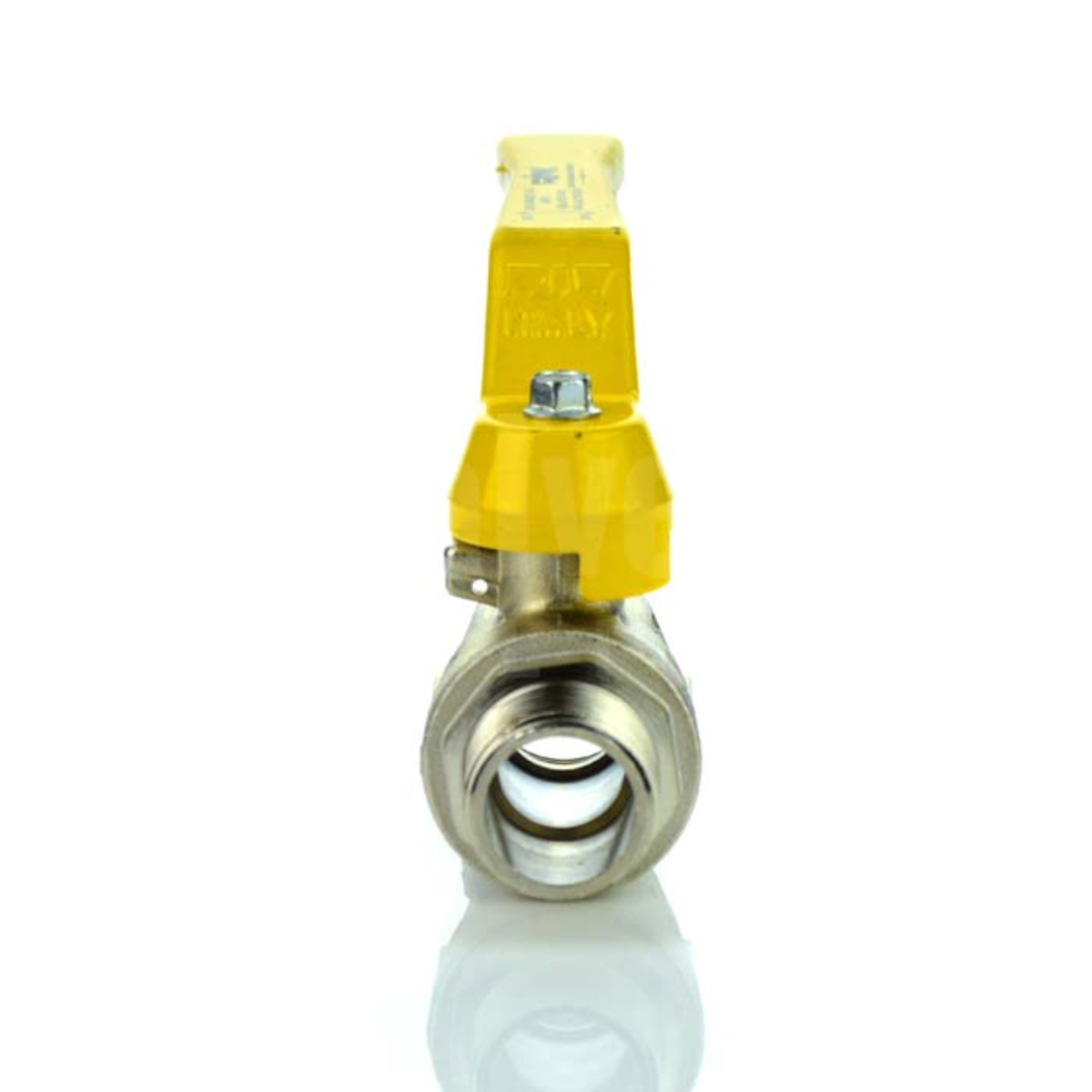

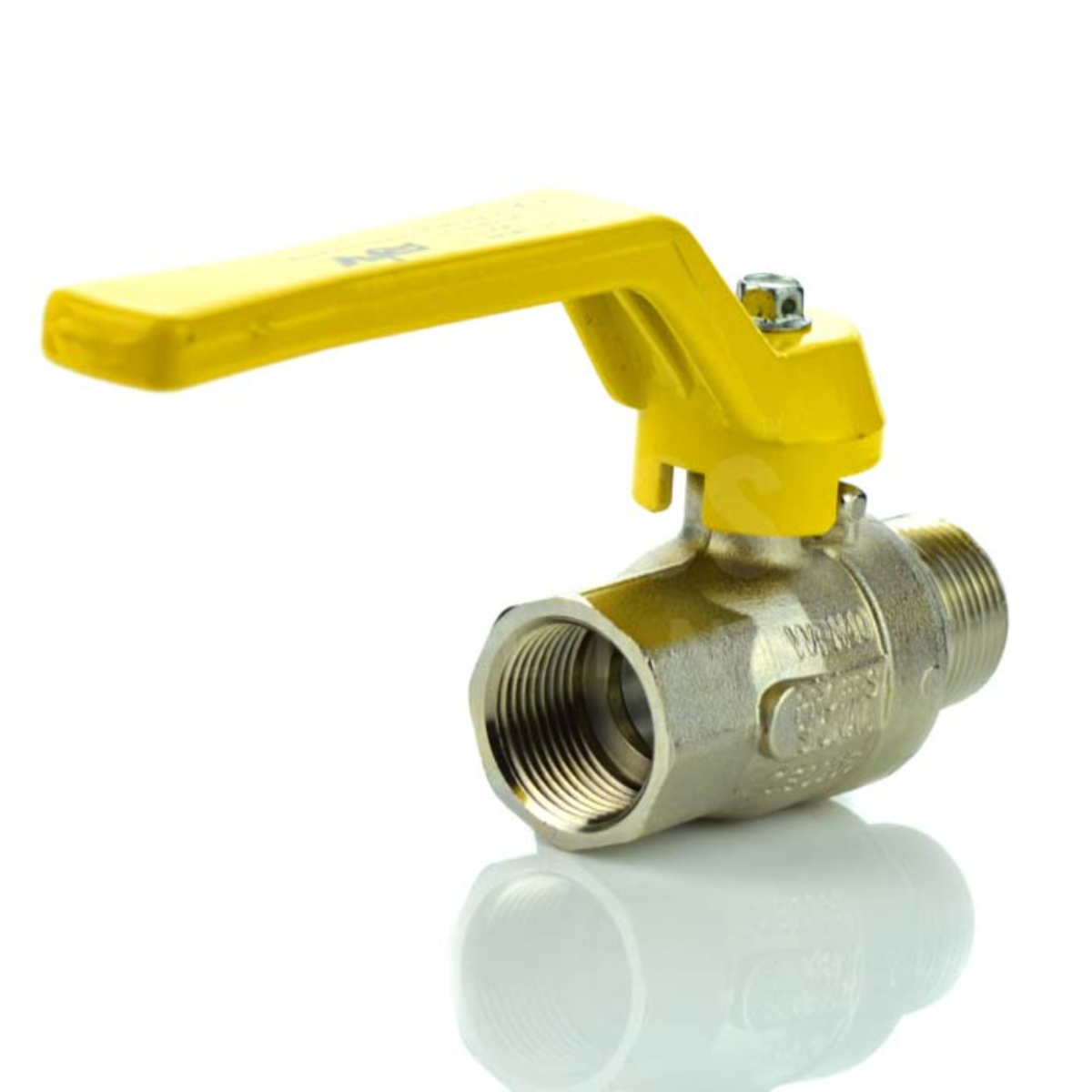

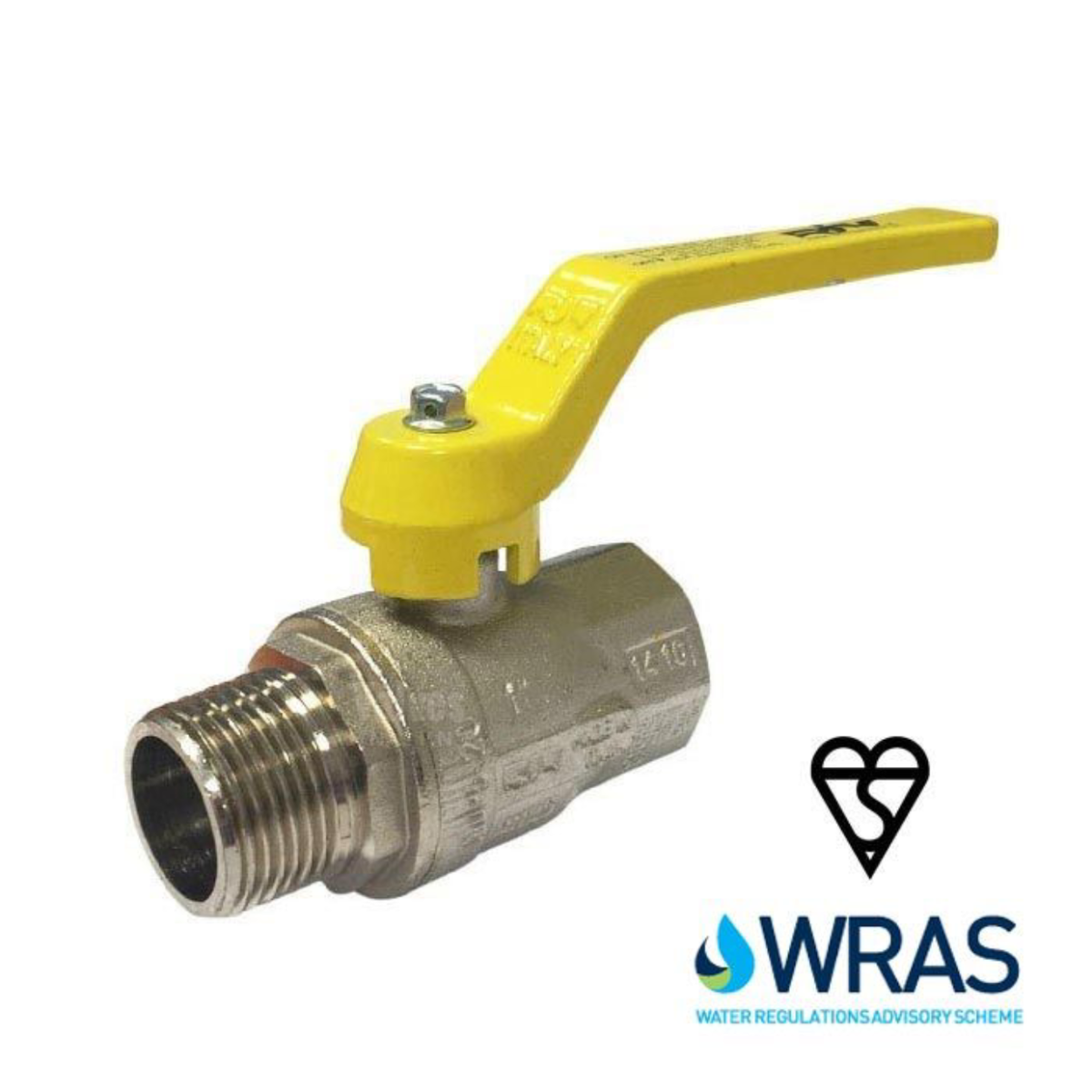

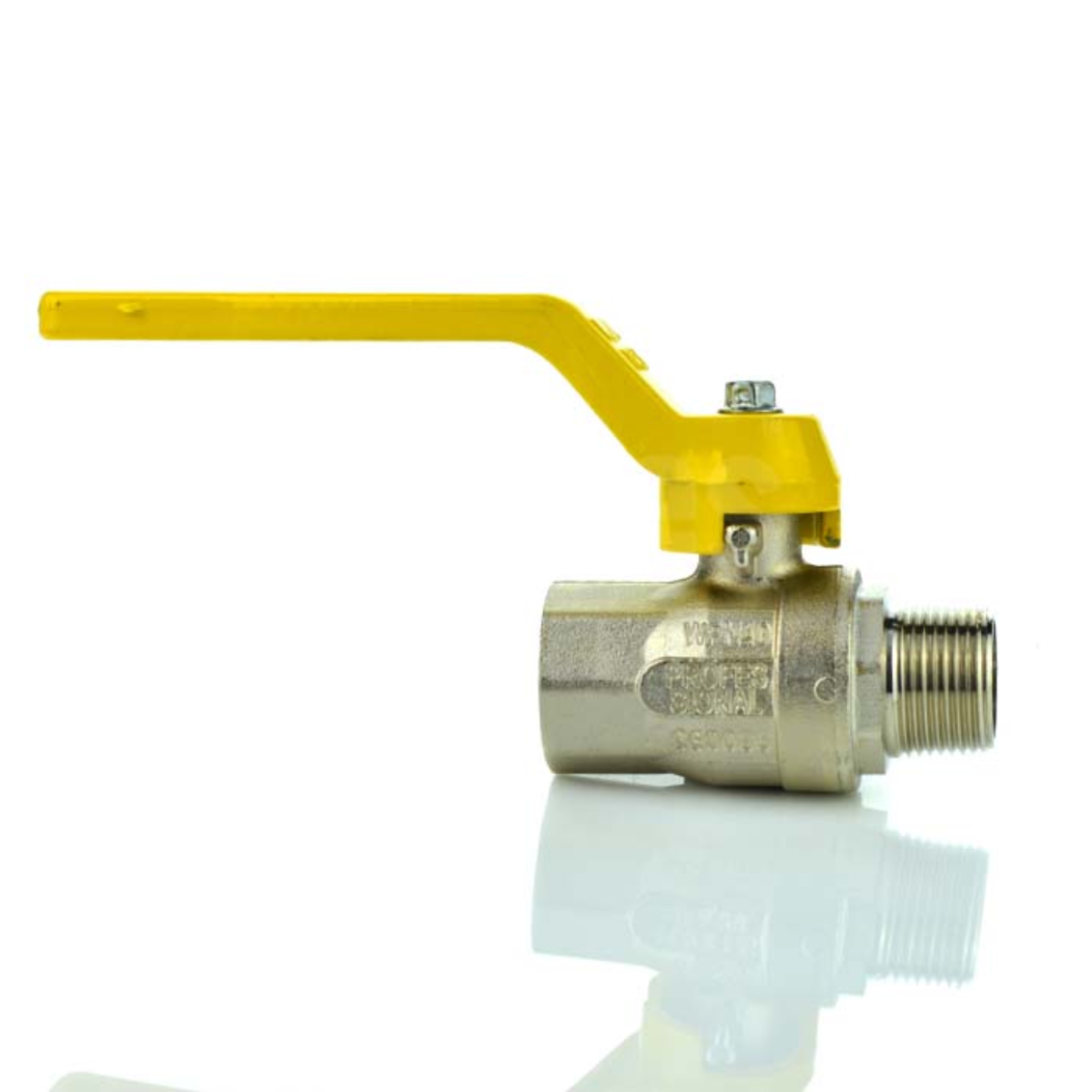

Brass Ball Valve BSI Gas Approved Male / Female
SKU BV5076
from£8.63ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- MxF Brass Ball Valve Gas Approved
- Brass Nickel plated body
- PTFE seals
- Full Bore
- Sizes 1/2" to 4"
- Temperature range: -20°C to 70°C
- EN331 and WRAS approved
Description
Our Brass Ball Valve BSI Gas Approved Male / Female is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air. A full bore, Gas and WRAS approved manual valve available in 1/2" to 4".
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- Full Bore, Male x Female
- Industry / Approvals
- BSI Gas, WRAS, HVAC
- Lever
- Manual Lever
- Temperature Range
- -20°C to 70°C
- Pressure
- Up to: PN64 (1/2"), PN40 (3/4" to 2 1/2"), PN32 (3"), PN25 (4")
- Actuatable?
- No - Manual Only
