VOLT

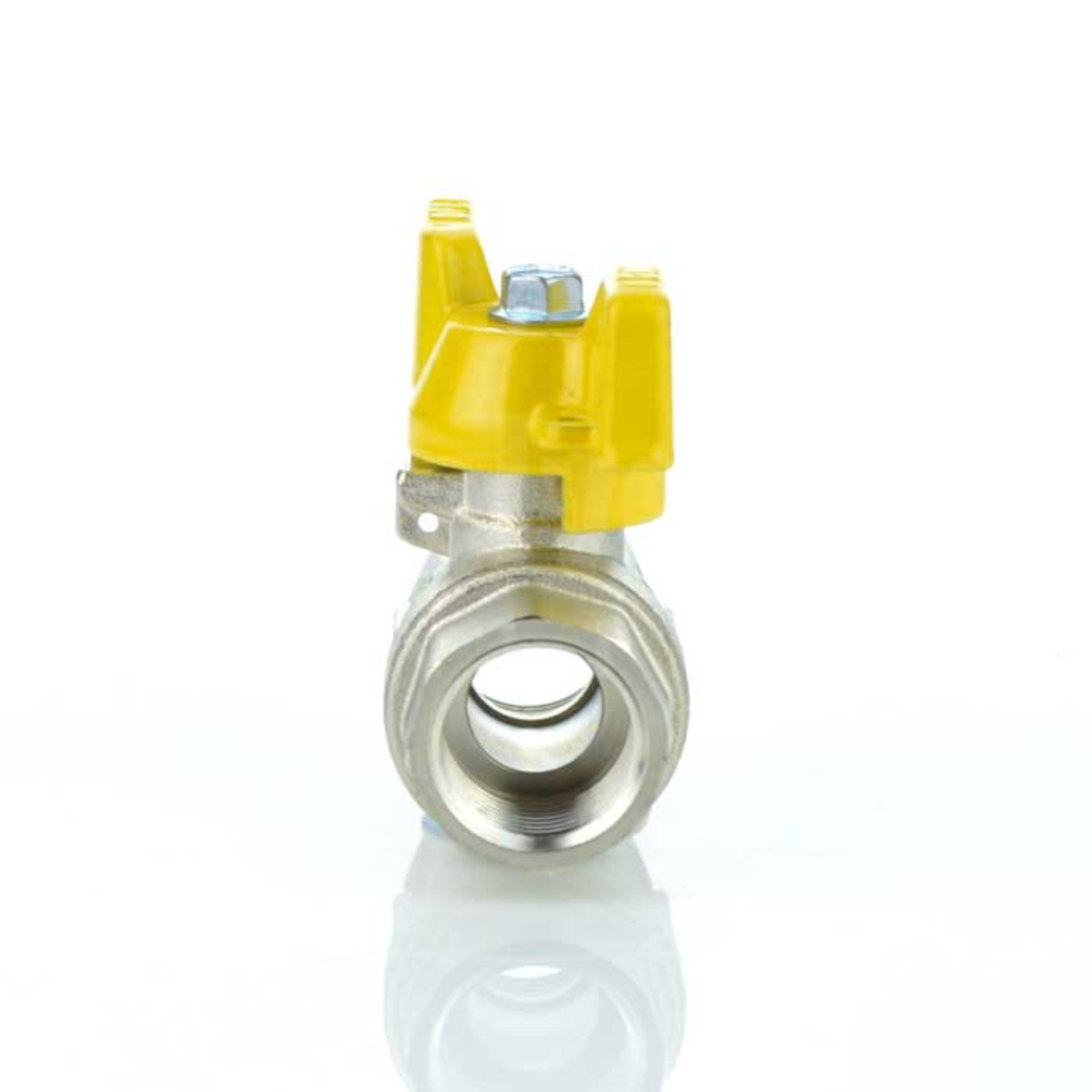

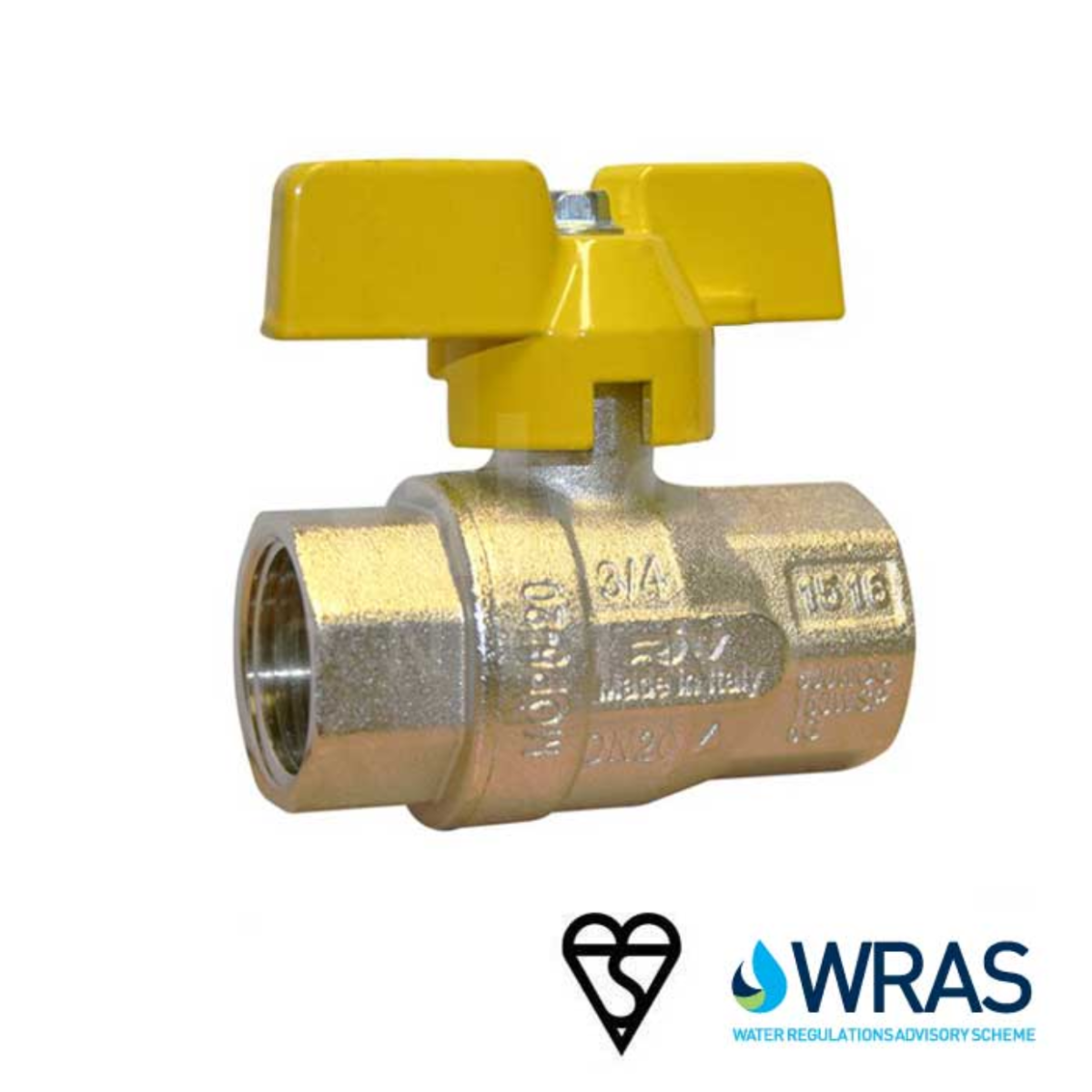

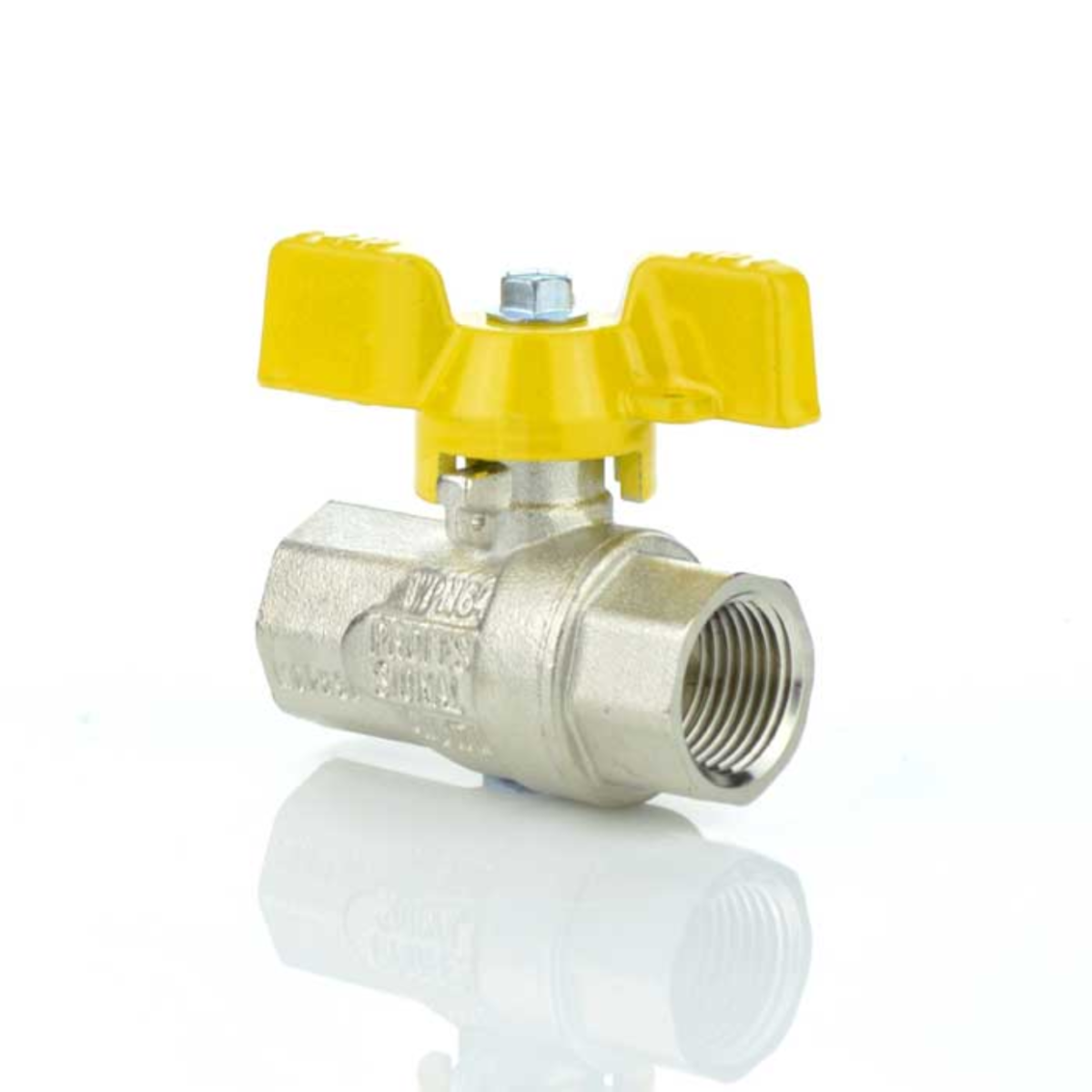

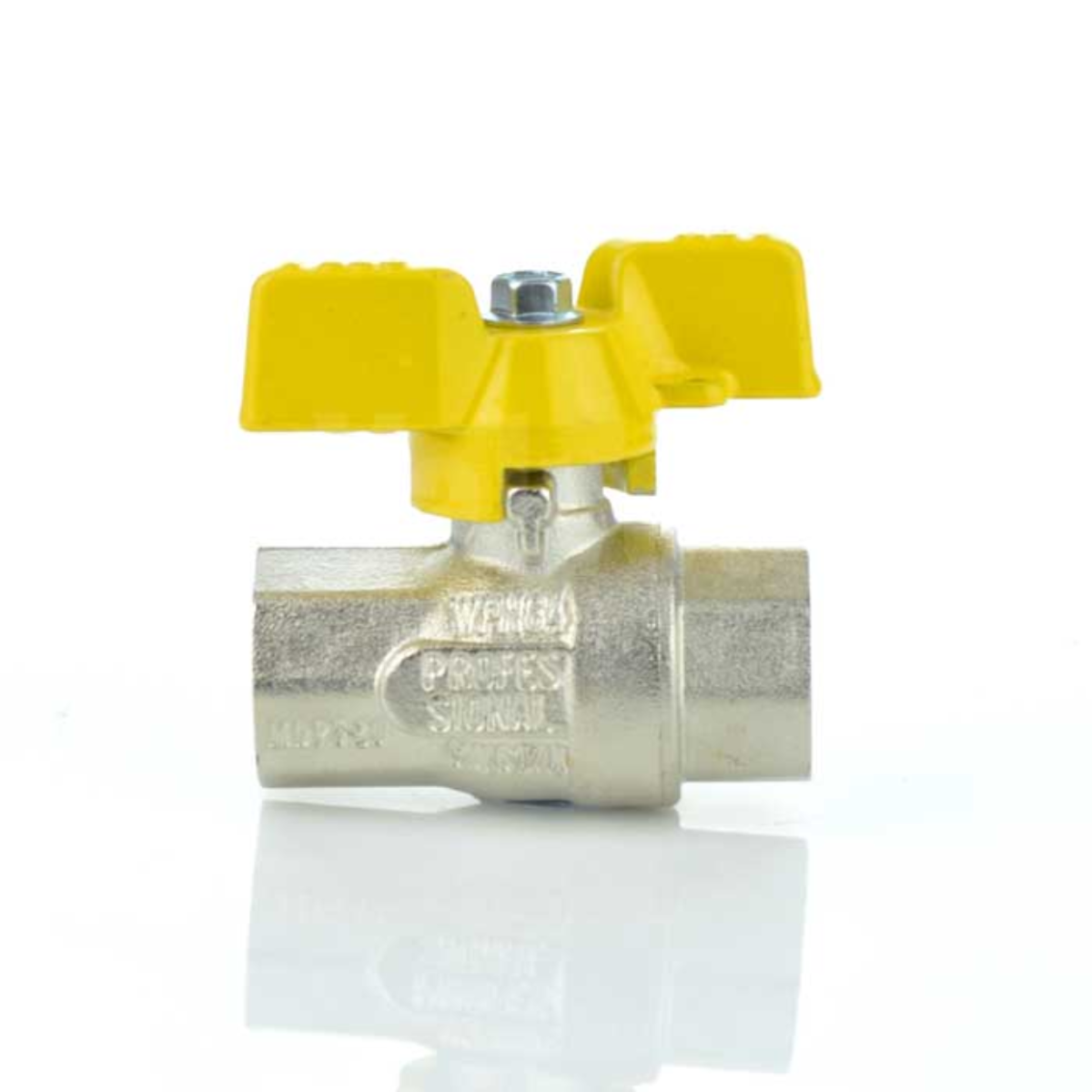

Brass Ball Valve BSI Gas Approved Butterfly Handle
SKU BV5075
from£6.03ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Gas Approved Brass Ball Valve
- Nickel plated HT Brass Body
- PTFE seals
- Full Bore
- Yellow Butterfly Handle
- Sizes 1/4" to 1"
- Screwed BSPP
- Temperature range: -20°C to 70°C (Gas) / -20°C to 150°C (Liquids)
- EN331:1998+A1:2015 and WRAS approved
Description
Our Brass Ball Valve BSI Gas Approved Butterfly Handle is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air.
A Nickel Plated HT Brass, full bore manual valve with yellow butterfly handle, PTFE seats, NBR/Viton stem O rings, anti blow out stem and screwed BSPP female x female end connections.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- BSI Gas, WRAS, HVAC
- Lever
- Yellow Butterfly Handle
- Temperature Range
- Gas: -20°C to 70°C, Liquids: -20°C to 150°C
- Pressure
- Up to: PN16 (1/4" to 1/2"), PN40 (3/4" to 1")
- Actuatable?
- No - Manual Only
