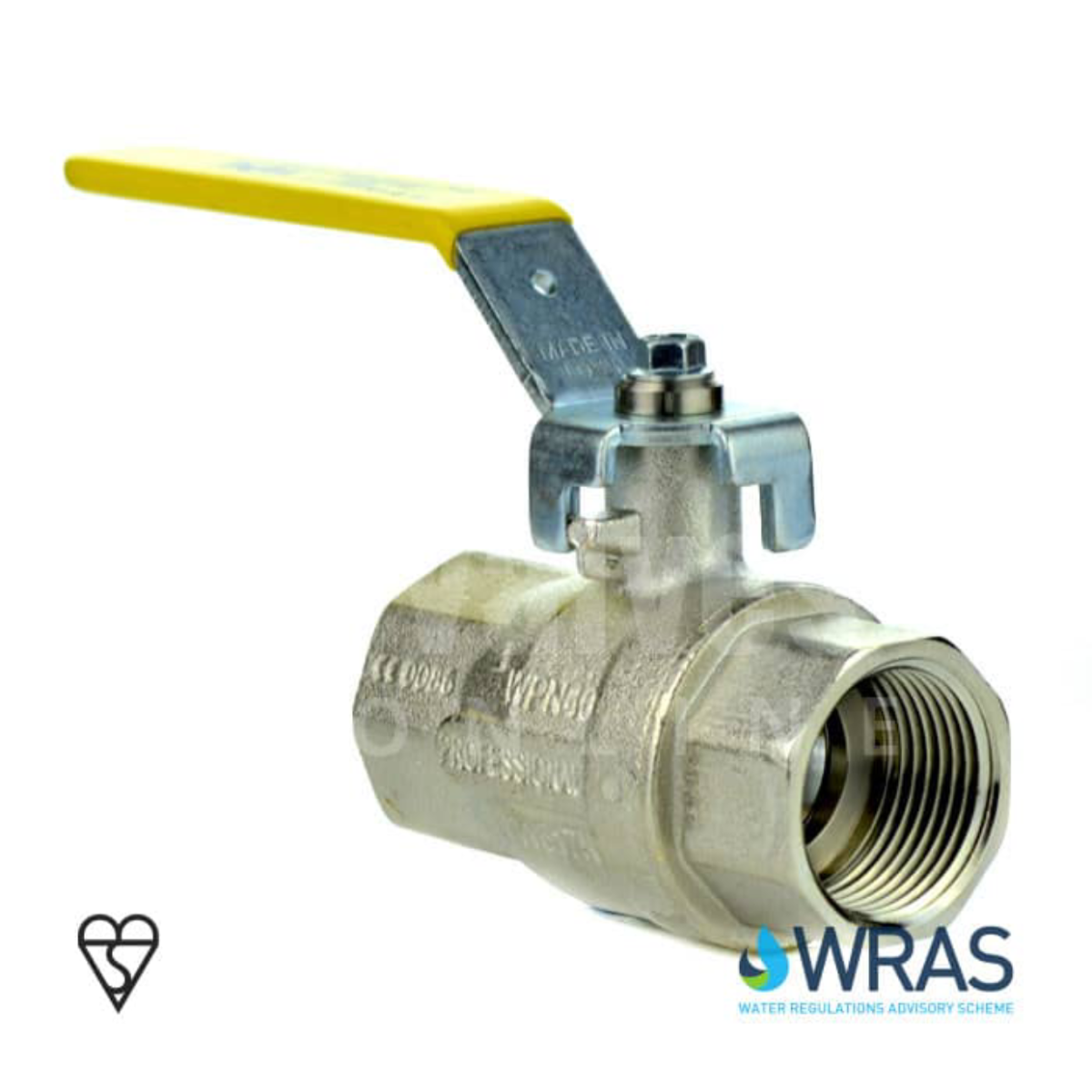

Brass Ball Valve BSI Gas and WRAS Approved
SKU BV5069
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- WRAS & Gas Approved Brass Ball Valve
- Brass Nickel plated body
- BSPP End Connections
- PTFE seals
- Full Bore
- Sizes 1/4" to 2"
- Temperature range gas: -20°C to 70°C
- Temperature range for liquids: -20°C to 110°C
- BSI Gas and WRAS Approved
- Free Handle Printing Available - See details below
Description
Our Brass Ball Valve BSI Gas and WRAS Approved is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil, fuel, gas and air. A full bore, British Gas EN331 and WRAS approved manual valve with either a red, yellow or blue handle.
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@Find My Valve.co.uk with your logo or company name and phone number.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- BSI Gas, WRAS, HVAC
- Lever
- Manual Lever - Red, Yellow or Blue (Handle printing available)
- Temperature Range
- Gas: -20°C to 70°C, Liquids: -20°C to 110°C
- Pressure
- Up to: PN40 (1/4" to 1/2"), PN32 (3/4" and 1"), PN25 (1 1/4" to 2 1/2"), PN16 (3" and 4")
- Actuatable?
- No - Manual Only
- Main Features
- PTFE seals Full Bore Sizes 1/4" to 2"
