VOLT

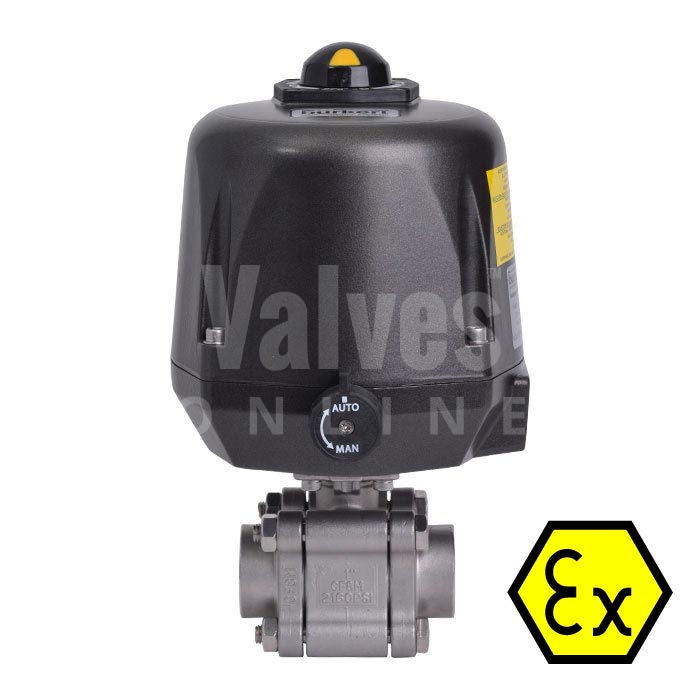

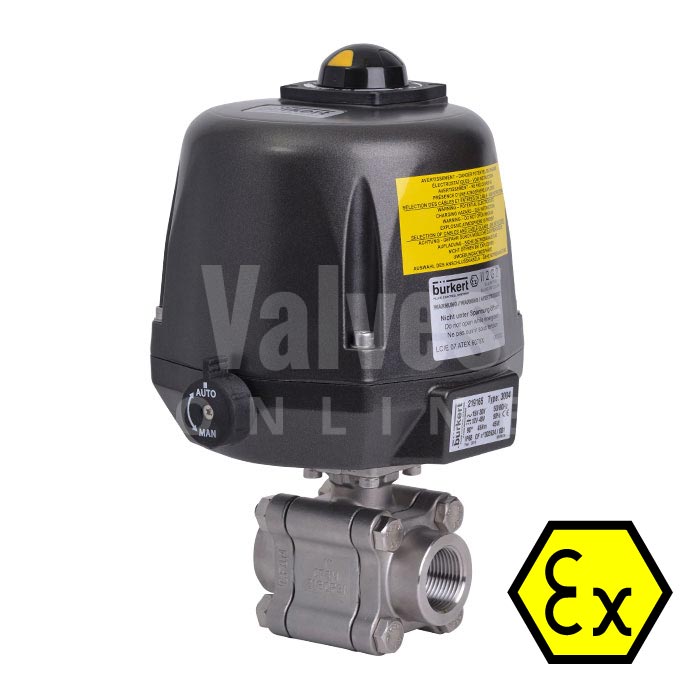

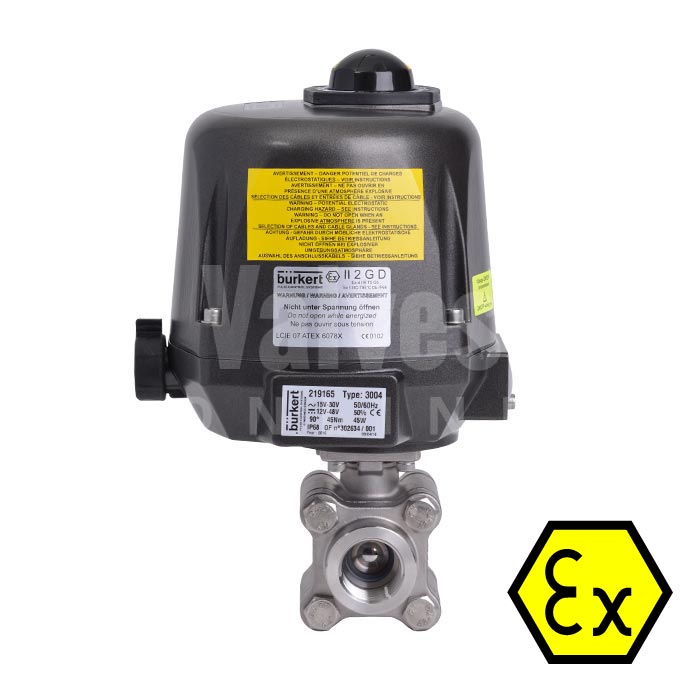

ATEX Series 88 Electric Actuated Screwed Ball Valve
SKU EX4109
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated Mars Series 88
- Fire safe seats and Anti static device API607
- ATEX-ll 2 G D-Exd llB T6 Electric Actuator
- Stainless steel Body
- Up to: 2000 PSI
- BSP, NPT and Socket Weld connection
Description
Series 88 Heavy duty stainless steel ball valve having the capabilities to bring to you adequate support on applications within ATEX explosive atmospheres.
A perfect combination of a II 2 G D - Ex d IIB T6 Gb actuator with a heavy duty full bore, fully maintainable ball valve with RPTFE seats Fire Safe to API 607 4th Edition. End connections are offered in BSPP, NPT and Socket weld.
The actuator can be supplied in a range of voltages and has limit switches, optical indicator manual override and torque limiter.
Technical specification
- End Connection
- NPT, Socket Weld
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- ATEX
- Temperature Range
- -20⁰C to + 180⁰C
- Pressure
- Up to: 2000 PSI Rated
- Actuator
- Valpes / Burkert 3004 Explosion Proof Electric Actuator
- Actuator Voltages
- 15-30V AC, 50/60 Hz / 12-48V DC and 100-240V AC / 50/60 Hz / 100-350V DC
- Actuator Features
- Explosion Proof, On/Off, Limit Switches, Manual Override, Optical Indicator
