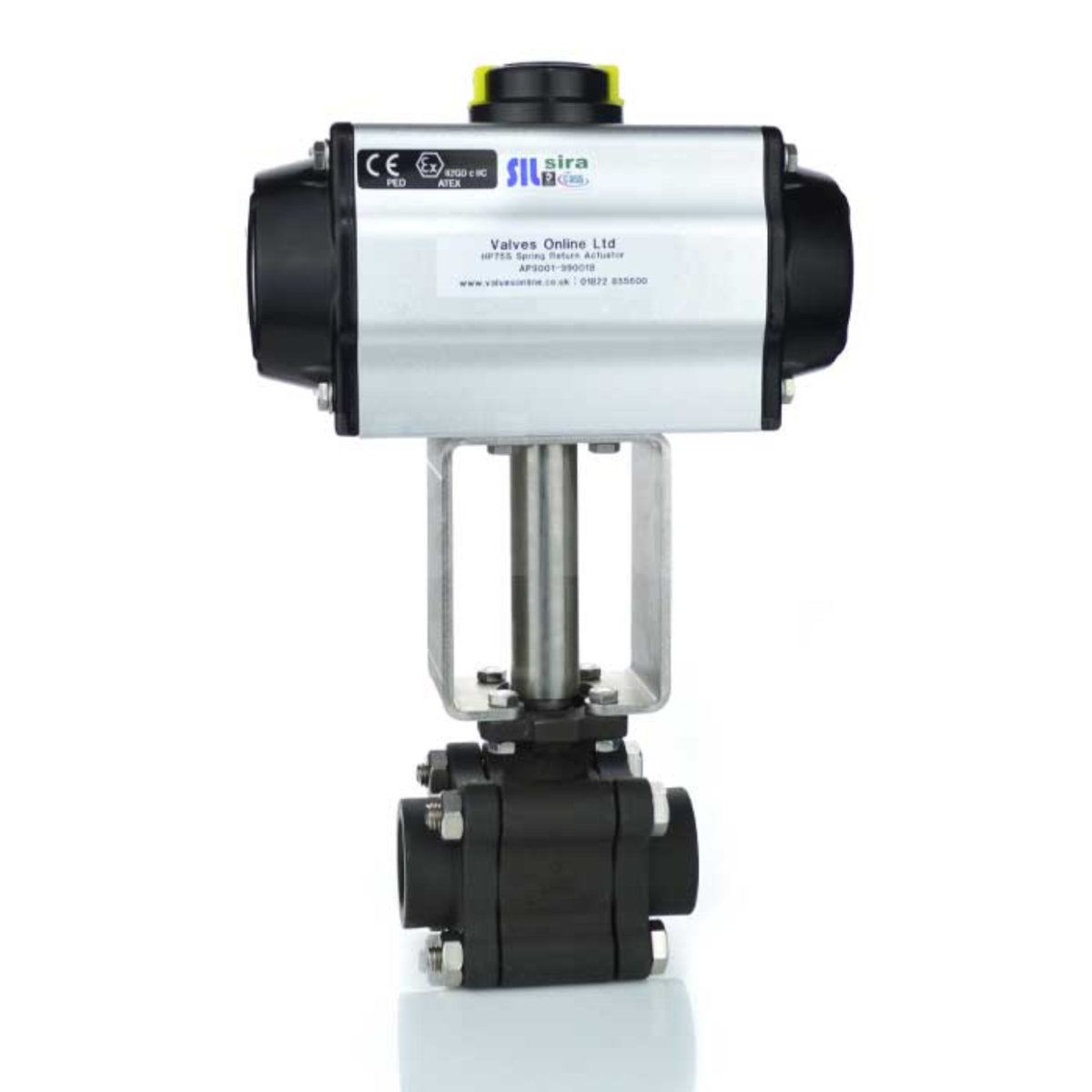

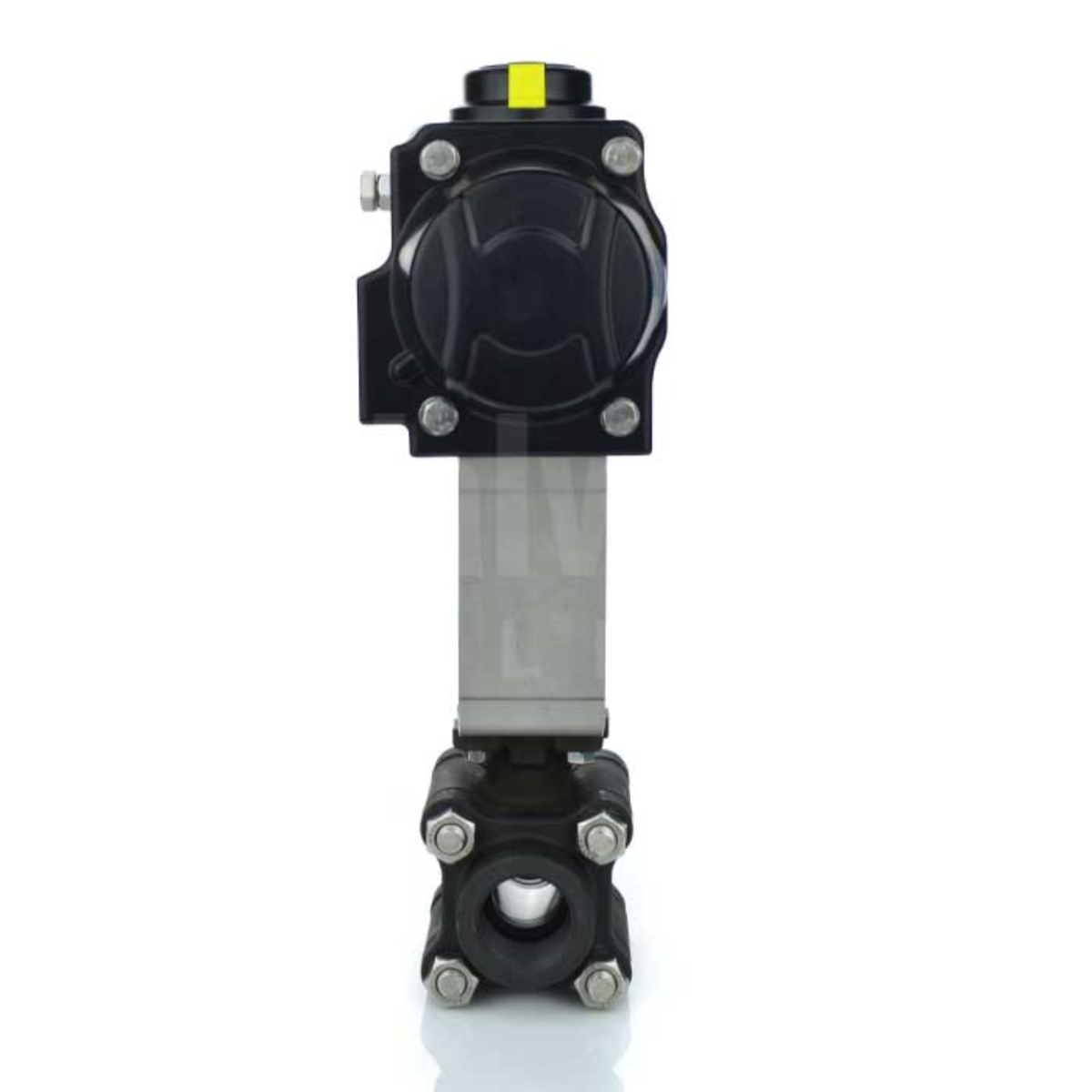

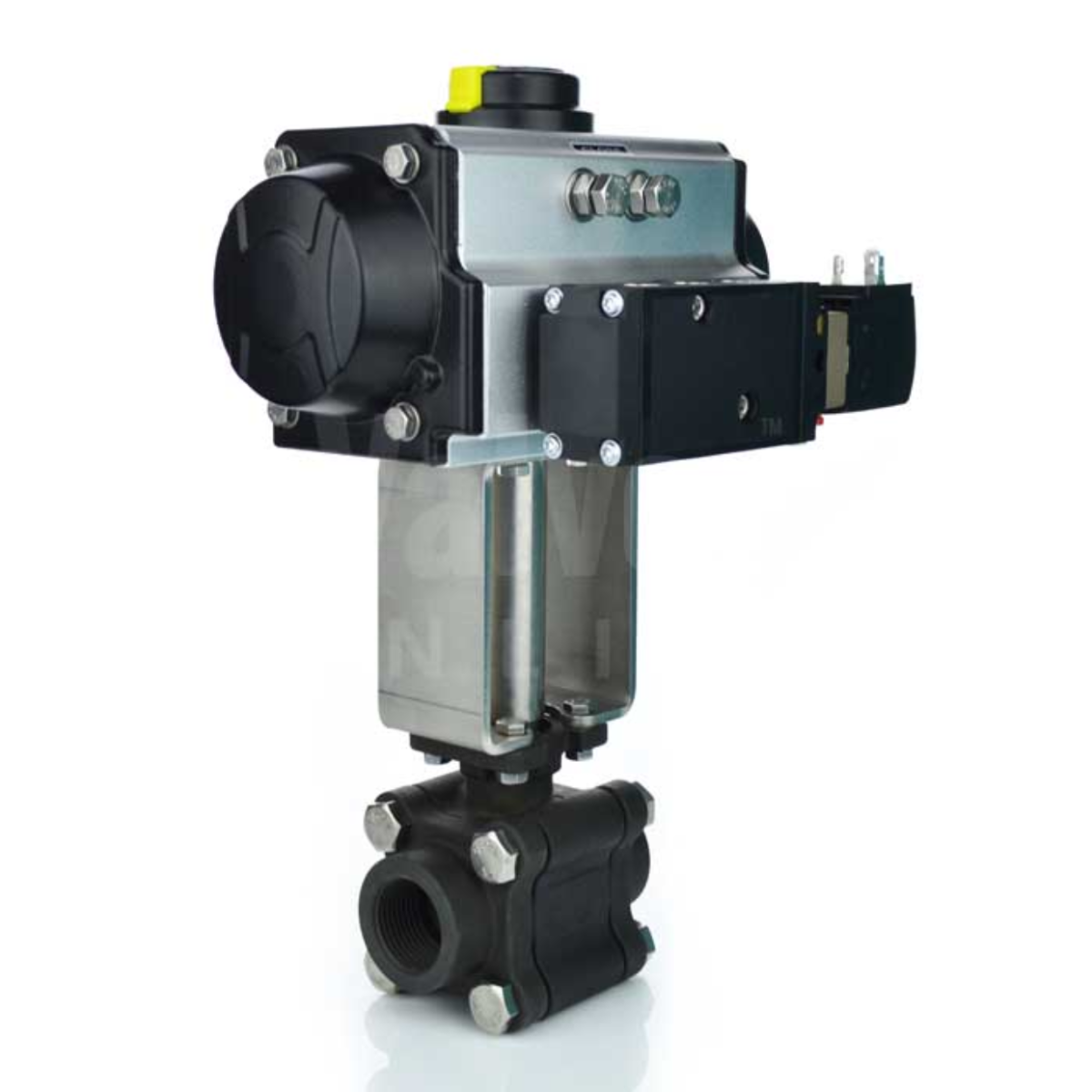

Air Operated Carbon Steel Steam Duty Ball Valve

Air actuated carbon steel ball valve with options for BSP and socket weld end connections.

Designed specifically for isolation on steam lines up to 200°C at 13 Bar Max. This fully encapsulated heavy duty ball valve and pneumatic actuator is the perfect combination in meeting todays industry standards.

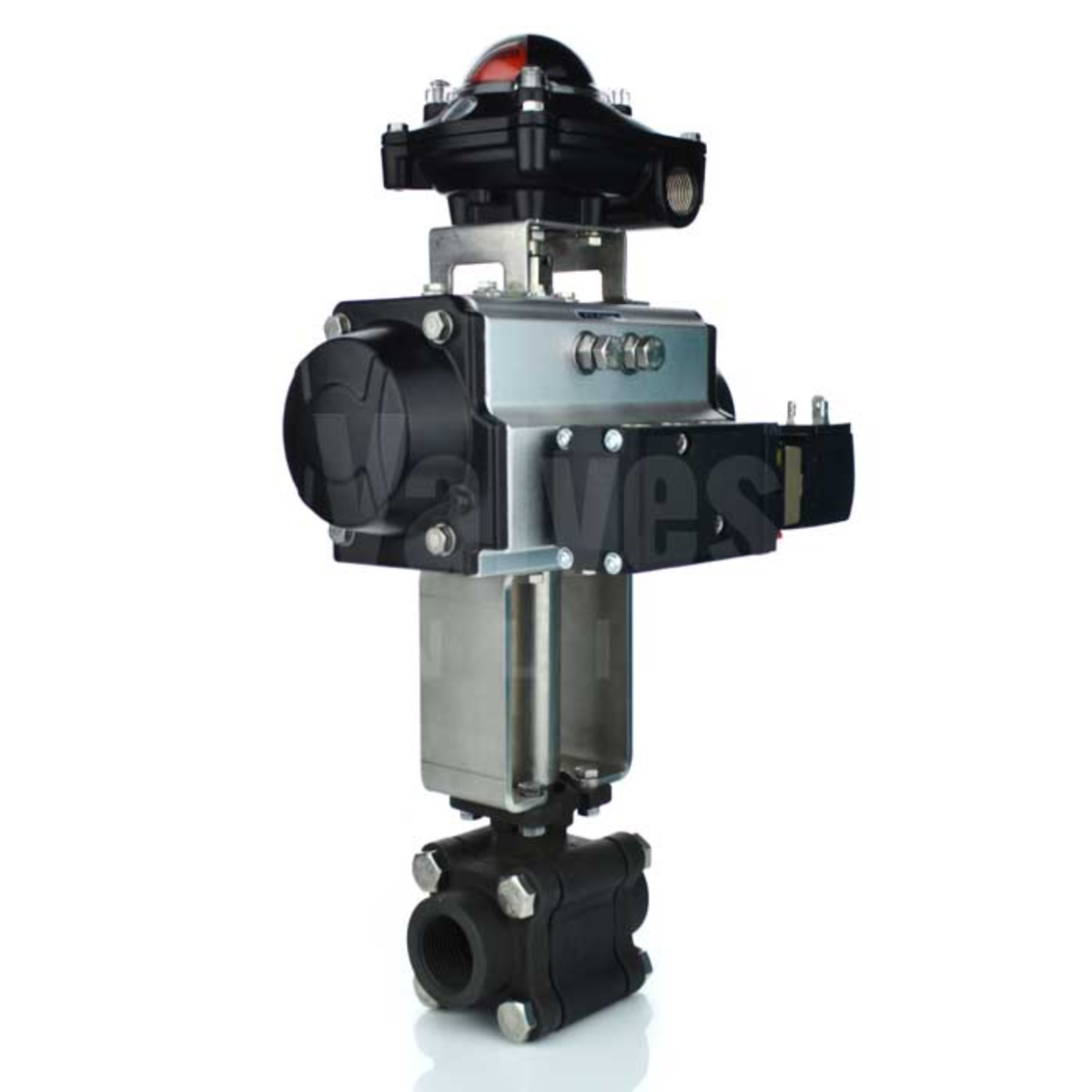

Comprising of a three piece Carbon Steel fully maintainable ball valve, with TFM 4215 Sealing . The valve offers a high cycle life and has self adjusting packing glands. The valve has a mounting pad that fits directly onto an extended heat dissipating bracket, because of the temperatures involved and is driven by either a single or double acting pneumatic actuator. Universal mounting platforms are offered as standard for position feedback, pilot solenoids and gearbox override.

A 30% safety factor is included when sizing, offering reliable and safe operation.

Firesafe and Antistatic to API – 6th Edition and Certified

Design Advantages

Blow out proof stem

Prevents stem blowing out for maximum safety.

Easy in line maintenance

3 piece body swing out design, allowing easy maintenance.

Repair Kits Readily Available

Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
