VOLT

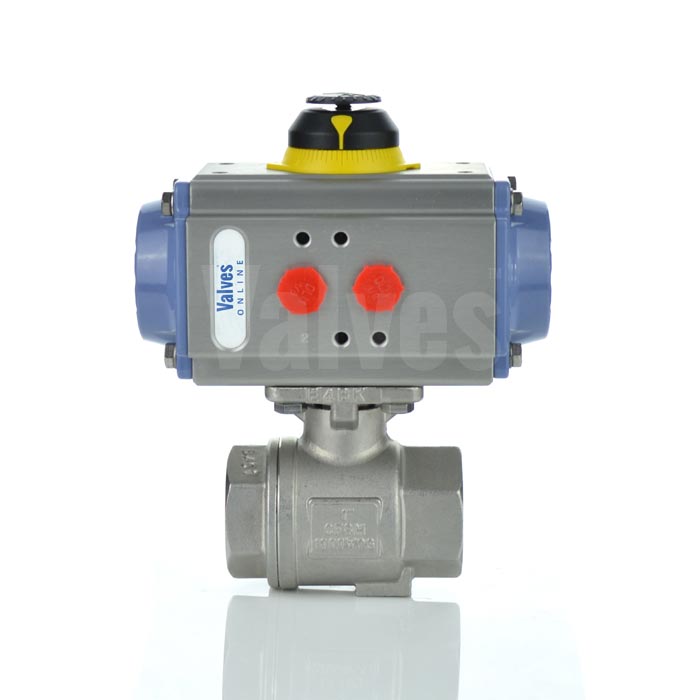

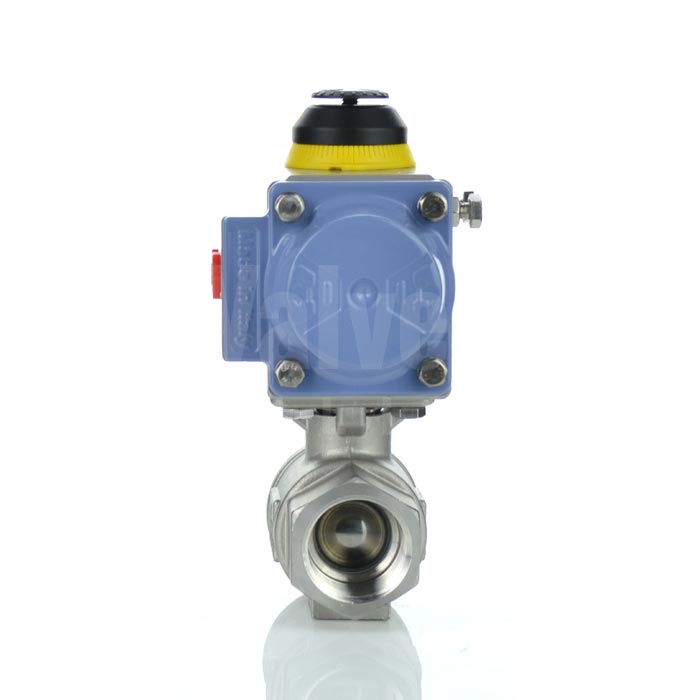

Air Actuated Stainless Steel 2-Piece Ball Valve
SKU PA8806
from£196.56ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Air Operated 2 Piece Ball Valve
- Quantity Discounts will Apply on this product
- European Actuator-Single Acting and Double Acting
- Full bore with excellent flow rates
- PTFE Seats up to 180°C
- 2 Piece fully maintainable 1/4” to 2”
- BSP end connections
- Stainless Steel Ball Valve
- 1000 PSI (PN63) Rated
Description
Type 8806 2-Piece stainless steel ball valve with European manufactured pneumatic rotary actuator.
The valve features PTFE Seats for temperatures up to 180°C and PN63 (1000 PSI) Rated.
The actuators are available in single (Spring Return or Spring Open) and double acting operating mode and can be complemented by a side control positioner, a pilot valve and several kinds of position feedback switchboxes and gearbox override. Use the CONFIGURATOR to select your perfect valve.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Temperature Range
- Up to 180°C
- Pressure
- Up to: 1000 PSI (PN63) Rated
- Actuator
- Pneumatic Actuator
- Actuator Features
- Spring Return, Spring Open, Double Acting
- Main Features
- PTFE Seats up to 180°C 2 Piece fully maintainable 1/4” to 2” BSP end connections
